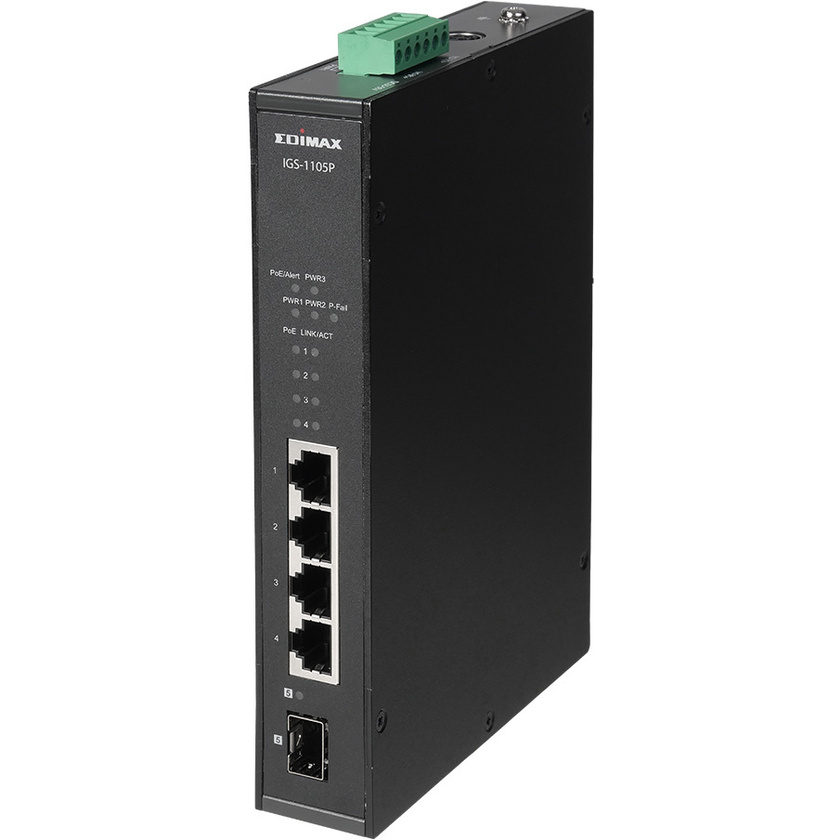

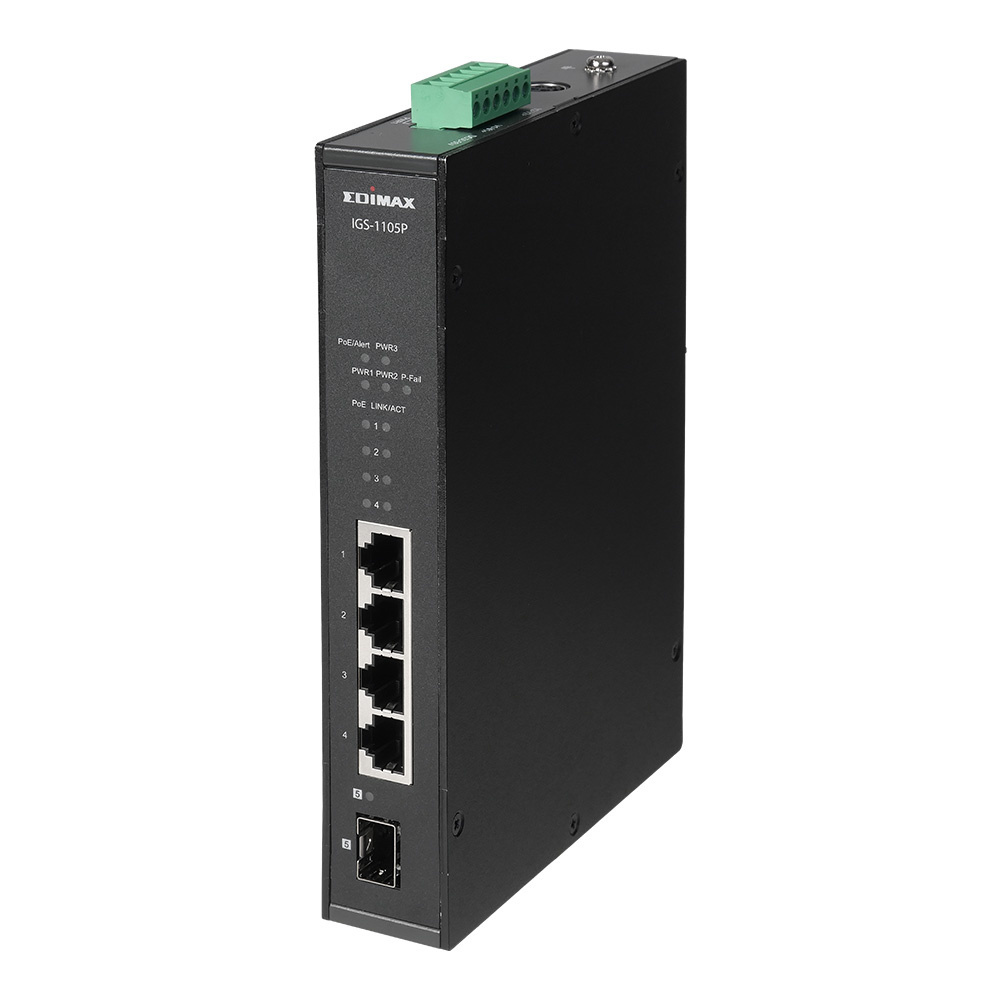

Edimax Industrial 5-Port Gigabit PoE+ DIN Rail Switch

Product #99107 | SKU IGS-1105P | Edimax
In stock Ships today
Our Price $275
In stock Ships today
- +

this item may be nonreturnable
Shipping & Availability
Ships today. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • 5 Gigabit Ethernet ports
  • 6KV Surge protection
  • Power redundancy
  • P-fail relay with alarm and notification
  • Supports QoS 802.1p
  • Operating temperature range of -20°C ~+70°C

Description

6KV Surge & Power BackFeed Protection

Supports 6KV lightning surge and power backfeed protection for connected devices from non-standard power sources. Further avoiding damage done to the switch and connected devices.

Wide Temperature Range

The industrial switch operates with a wide temperature range from -20°C ~ 70°C for industrial network deployment in extreme hot and freezing environments.

PoE Long Range Guaranteed 200M

Provides the PoE long-range solution with a guarantee of 200 meters ideal for surveillance and parking lot applications.

Reliable Power Redundancy

Supports power redundancy with three power inputs to decrease unexpected risk and ensures stable and reliable network service quality.

QoS with Improved Traffic Efficiency

Supports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.

Flexible DIN-Rail & Wall Mount

The switch is designed with flexibility for DIN-rail mounts or wall-mount deployment.

Specifications

HARDWARE
Ports 4x RJ-45 10/100/1000Base-T Gigabit PoE+ Ports
1x SFP Ports
Connector Removable 6-pin Terminal Block (Pin1/2 for Power 1, Pin 3/4 for P-Fail (Power Failure Alarm Relay), Pin 5/6 for Power 2)
Grounding Point with Screw
DC In (48V~55V) Power Jack (for Power 3)
LED Indicators Per Port: Link/Act, PoE
Per Unit: PoE/Alert, PWR1, PWR2, PWR3, P-Fail
Power Input * External Power Supply
* Power Input: 48V-55V DC (Terminal Block)
* Redundant Power Input:48V-55VD C (Terminal Block)
* DC Input: 48V-55V DC
* Operating Current: 0.25A@50V DC, 12.5W (System)
Mounting DIN-rail Mount (DIN-rail Mount Kit Included) / Wall Mount
Housing Metal, IP30-rated
Fan Fanless
Dimensions 180(H) x 32(D) x 130(W) mm
Weight 675g
Performance
Switching Capacity 10Gbps
MAC Address 2K
Buffer Memory 2Mb
Jumbo Frame 9KB
Transmission Method Store and Forward
Filtering / Forwarding Rates Max. 7.44Mpps
​1000Mbps port – 1,488,000pps
100Mbps port – 148,800pps
10Mbps port – 14,880pps
Advanced Feature IEEE 802.1p Quality of Service (QoS)
Power Over Ethernet
Standard IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output Up to 30W per port
Total PoE Power Budget Max. 120W
Pin Assignment 1/2(+), 3/6(-)
Advanced Feature Guaranteed PoE Long Range to 200 Meters at 10Mbps
Power Backfeed Protection​
Other
Protection Reverse Polarity
Overload Current
6KV Surge per RJ45 Port
MTBF >1,000,000 hours @25°C (Mean Time Between Failure)
Standards IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.1p QoS (Quality of Service)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy-efficient Ethernet
Environmental Condition Operating Temperature:-20°C-70°C
Storage Temperature: -40°C-85°C
Operating Humidity: 10%~95% (NonCondensing)
Storage Humidity: 10%~95% (NonCondensing)
Certification CE, FCC, BSMI

In The Box

  • Edimax Industrial 5-Port Gigabit PoE+ DIN Rail Switch

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Edimax Industrial 5-Port Gigabit PoE+ DIN Rail Switch
  • Manufacturer: Edimax
  • Model: IGS-1105P
  • SKU: IGS-1105P
  • RM Product #: 99107
