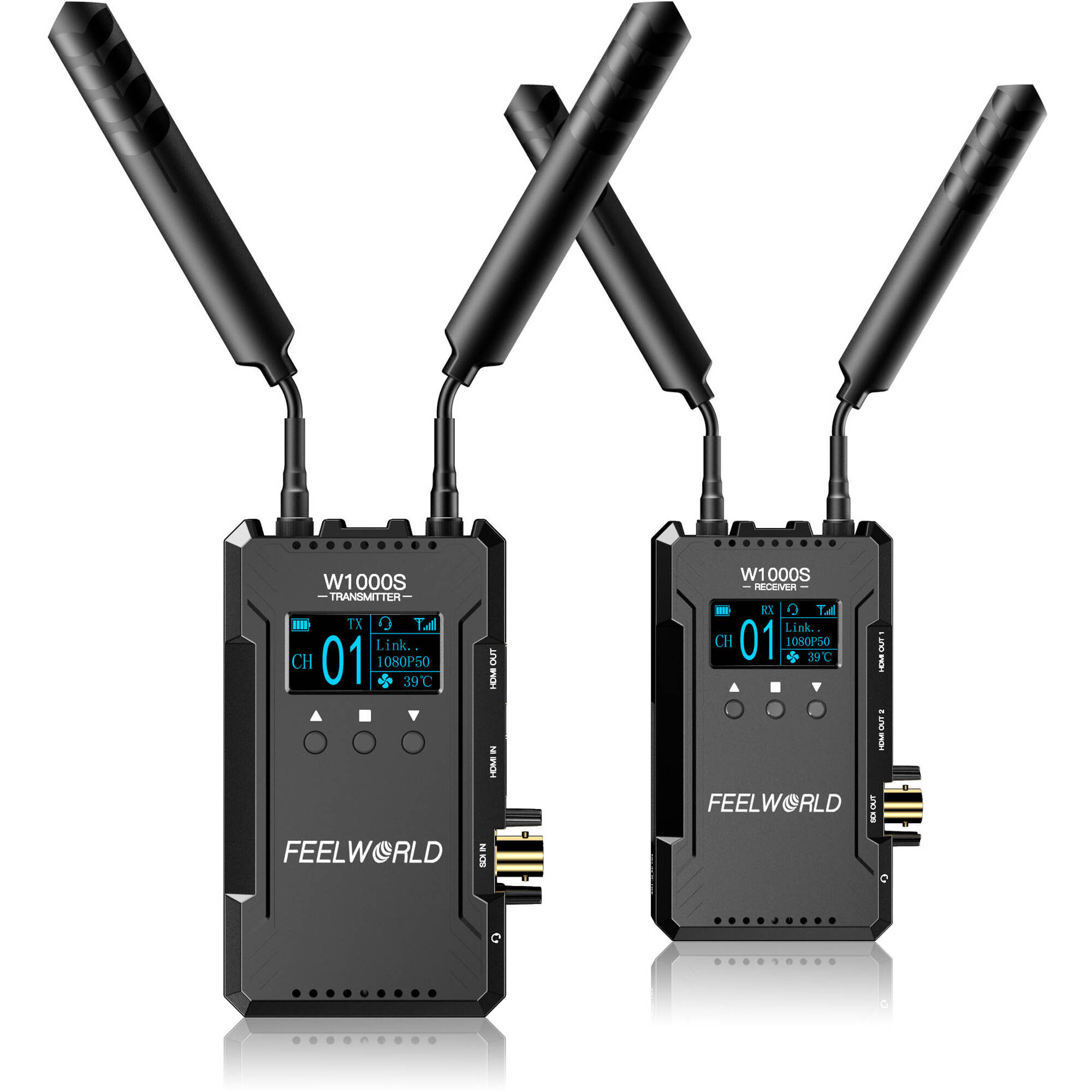

FeelWorld W1000S 1000' SDI + Dual HDMI Wireless Video Transmission System

Product #98719 | SKU W1000S | Feelworld
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Transmitter: SDI Input and HDMI I/O
  • Receiver: SDI + Dual HDMI Output
  • Up to 1080p60 with 0.08 Second Latency
  • Integrated Full Duplex Intercom System
  • 1000' Transmission

Description

The FeelWorld W1000S 1000' SDI + Dual HDMI Wireless Video Transmission System is a real-time wireless video transmission system with an integrated intercom feature that allows communication between users on set. The system supports up to 1080p60 SDI/HDMI transmission up to 1000' with a low latency of 0.08 seconds. The transmitter has a 3G-SDI input and HDMI input and output. The receiver offers a 3G-SDI output and dual HDMI outputs.

Up to four receivers can be linked to the transmitter for simultaneous transmission. Also, the transmitter can be adjusted to function as a receiver. The OLED screen on both the transmitter and receiver displays link status, signal strength, video format, battery level, temperature, fan status, and the status of the intercom mode. .

Specifications

I/O
Antenna Ports Transmitter: 2 x RP-SMA Male
Receiver: 2 x RP-SMA Male
Video Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x HDMI Type A Input
Transmitter: 1 x HDMI Type A Output
Receiver: 1 x BNC (3G-SDI) Output
Receiver: 2 x HDMI Type A Output
Audio Transmitter/Receiver: 1 x 1/8" / 3.5 mm Headphone Output
Power Transmitter/Receiver: 1 x Barrel Input
Other I/O Transmitter/Receiver: 1 x USB Type-C
Wireless
Wireless Range 1000' / 304.8 m
Number of Channels 13
Channel Bandwidth 20 MHz
Frequency Range 5.1 to 5.9 GHz
Latency 0.08 sec
RF Power 17 dBm
Wi-Fi None
Format Support
Video Format HDMI/SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 60
480p: 60
Audio Format Not Specified by Manufacturer
Timecode Support No
Power
DC Input Power 6 to 16 VDC
Power Consumption Transmitter: 7.5 W
Receiver: 6.5 W
Mounting
Mounting 1/4"-20 Female
Environmental
IP Rating None
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C

In The Box

  • FeelWorld W1000S 1000' SDI + Dual HDMI Wireless Video Transmission System
  • Transmitter
  • Receiver
  • Antenna
  • USB Type-C to USB Type-A Cable
  • Cold Shoe Adapter

Reviews

0.0 (no ratings yet)

Details

  • Product: FeelWorld W1000S 1000' SDI + Dual HDMI Wireless Video Transmission System
  • Manufacturer: Feelworld
  • Model: W1000S
  • SKU: W1000S
  • RM Product #: 98719
  • Warranty: 1 year manufacturer warranty
