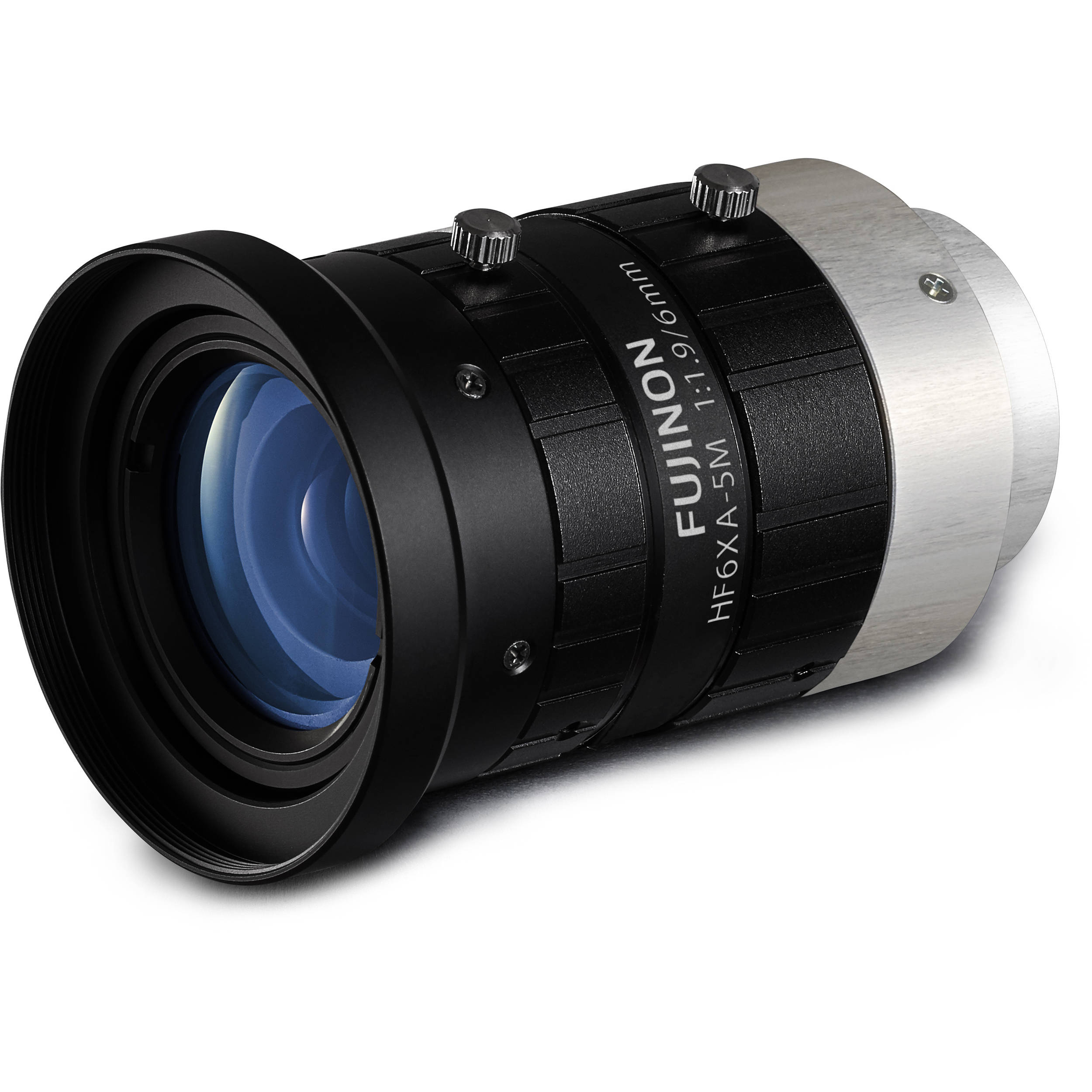

The Fujifilm Fujinon HF6XA-5M 2/3" 6.23mm 5MP Machine Vision Lens is a C-mount lens for 2/3" sensors, great for machine vision applications. The lens features locking manual focus and iris rings, and can focus from infinity down to less than 10cm. It accepts M37.5-size threaded filters.
Fujinon HF6XA-5M 2/3" 6.23mm 5MP Machine Vision Lens
Usually ships in 4 - 6 weeks
Our Price
$1,299
Usually ships in 4 - 6 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 4 - 6 weeks.
Deliver to
Auckland
for $5.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
4 - 6 weeks
Click & Collect
Features
- C-Mount for 2/3" Sensors
- Manual Focus and Iris
- Adjustable Locking Focus and Iris Knobs
- f/1.9 to f/16
- M25.5 Threaded Front for Filters
Description
Specifications
| Lens Mount | C |
| Sensor Compatibility | 2/3" (5 MP) |
| Focal Length | 6.2mm |
| Back Focal Length | 12.46mm |
| Angle of View | 2/3" Sensor Horizontal: 74.7° Vertical: 58.1° |
| Minimum Focus Distance | From Image Plane: 3.94" / 10 cm |
| Focus Type | Manual Focus |
| Iris Type | Manual |
| Distortion | -0.029% |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Flange Back Length | 0.69" / 17.526 mm |
| Filter Thread | M25.5 x 0.5 mm |
| Dimensions (ø x L) | 1.54 x 2.01" / 39 x 51 mm |
In The Box
- Fujinon HF6XA-5M 2/3" 6.23mm 5MP Machine Vision Lens
- Front Cap
- Rear Cap
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Fujinon HF6XA-5M 2/3" 6.23mm 5MP Machine Vision Lens
- Manufacturer: FujiFilm
- Model: HF6XA-5M
- SKU: HF6XA-5M
- RM Product #: 99636
- Lens Type: Wide
