HH Electronics TNA-2051 Passive Line Array Speaker System

Product #116649 | SKU TNA-2051 | HH Electronics
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Dual HH-designed 5″ LF drivers
  • 1.33″ Celestion HF compression driver
  • Integrated rigging hardware
  • High-SPL performance
  • 35 Hz > 2k Hz wide frequency range

Description

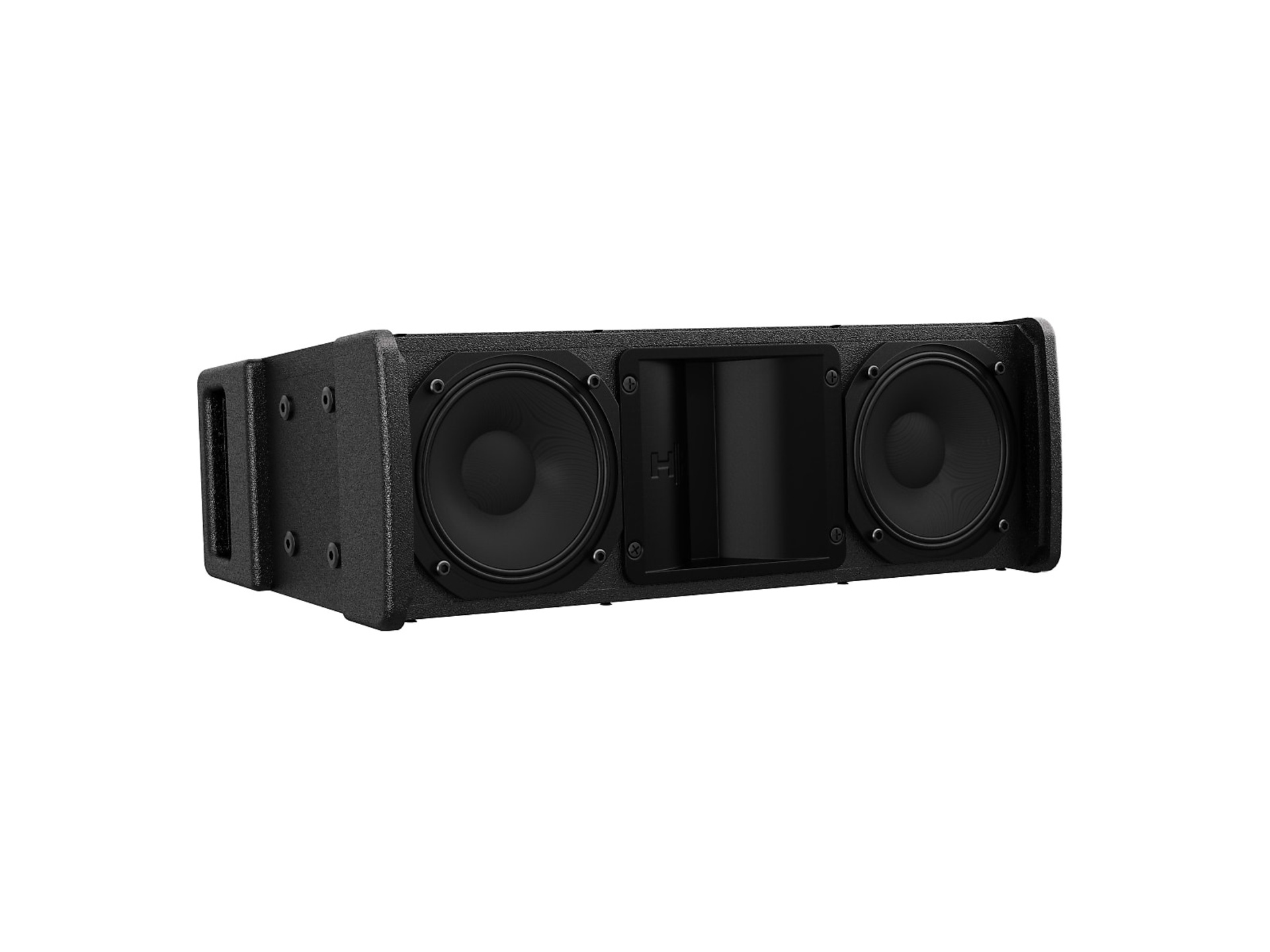

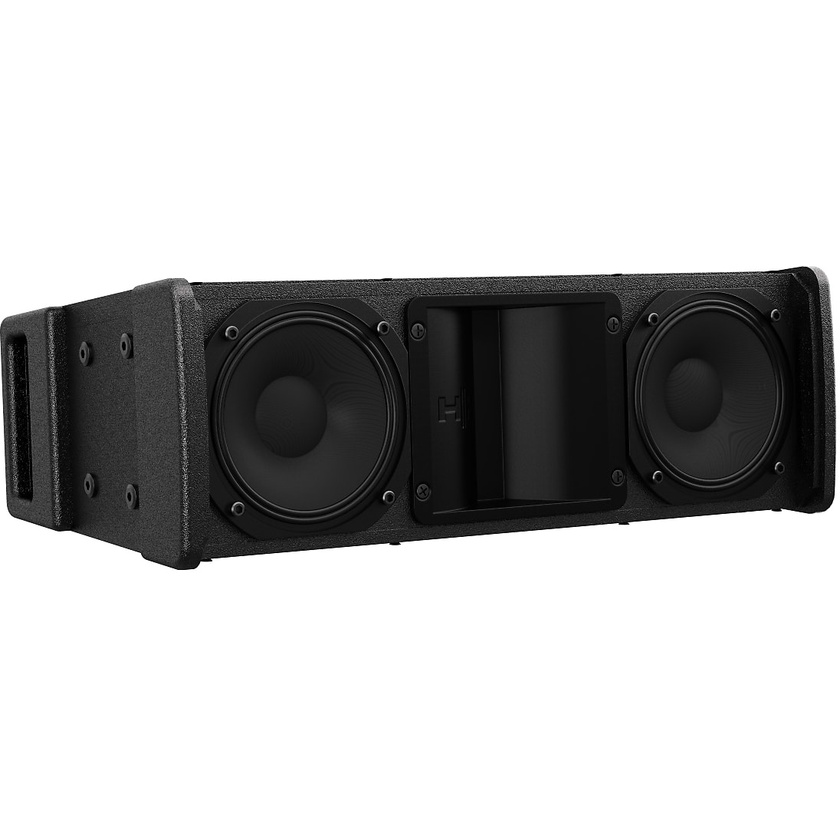

The HH Electronics TNA-2051 Passive Line Array Speaker System features dual HH-designed 5″ LF drivers and a 1.33″ Celestion HF compression driver. The outer enclosure features integrated rigging hardware, enabling the TNA-2051 to be installed easily by a single engineer. With flexible configurations, the TNA-2051 can be used as a traditional line array system for long throw applications or as a standalone full-range point source system. The TNA-2051 offers high-SPL performance, making it an ideal option for venues, halls, hotels, portable live sound reinforcement and more. Specs include a 123 dB max SPL and 65 Hz 20k Hz (-10 dB) response and 120° x 8° dispersion. The 6.2″ x 18.1″ x 10.4″ cabinets weigh 18.5 pounds each.

The companion TNA-1200s passive line array subwoofer features a high power 12-inch woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1200s can be installed quickly and easily. The TNA-1200s delivers a max SPL of 125 dB with a wide frequency range of 35 Hz > 2k Hz. When combined with the TNA-2051, the TNA system provides a high-specification flown installation system or ground stacked point source solution.

Specifications

Frequency Response (-10) 65Hz - 20kHz
Frequency Response (-3) 100Hz - 18KHz
Power 200W AES, 800W Peak
Sensitivity (1W/1M) 94dB
Max SPL (1M) (Peak) 123dB
Nominal System Impedance 16 Ohms
Input Connector NL4 ±1 Twist Lock Connector
Link Connector NL4 ±1 Twist Lock Connector
HF Driver 1 x 1.33 Inch Celestion Compression Driver, mounted to Celestion Designed wave guide and horn
LF Driver 2 x 5 Inch HH designed driver
Crossover Frequency 2000HZ
Nominal Dispersion 120° x 60° (120° x 30° single point)
Splay Angle Settings Dual Angle, 0° and 8°
Recommended HPF Frequency 100Hz
Cabinet 15mm Plywood
Finish Painted Black (White finish optional, subject to MOQ)
Mounting Bracket TNA-BRK1 for suspended mounting
Mounting Points M8 fixings for optional TNA-BRK1 flying bracket assembly (available separately)
Grille 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
Unit Dimensions (Hwd) 158 x 460 x 265mm / 6.2" x 18.1" x 10.4".

In The Box

  • HH Electronics TNA-2051 Passive Line Array Speaker System

Reviews

0.0 (no ratings yet)

Details

  • Product: HH Electronics TNA-2051 Passive Line Array Speaker System
  • Manufacturer: HH Electronics
  • Model: TNA-2051
  • SKU: TNA-2051
  • RM Product #: 116649
