HIKMICRO E1L Compact Hand Held Thermal Imaging Camera has been discontinued, here are some related products you might like:

HIKMICRO B20 Compact Hand Held Wi-Fi Thermal Imaging Camera

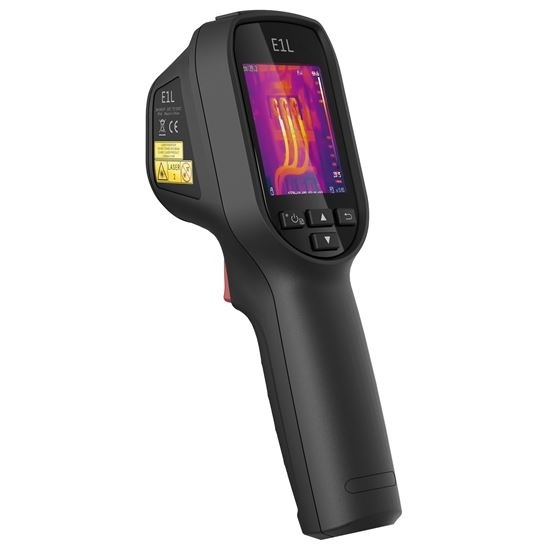

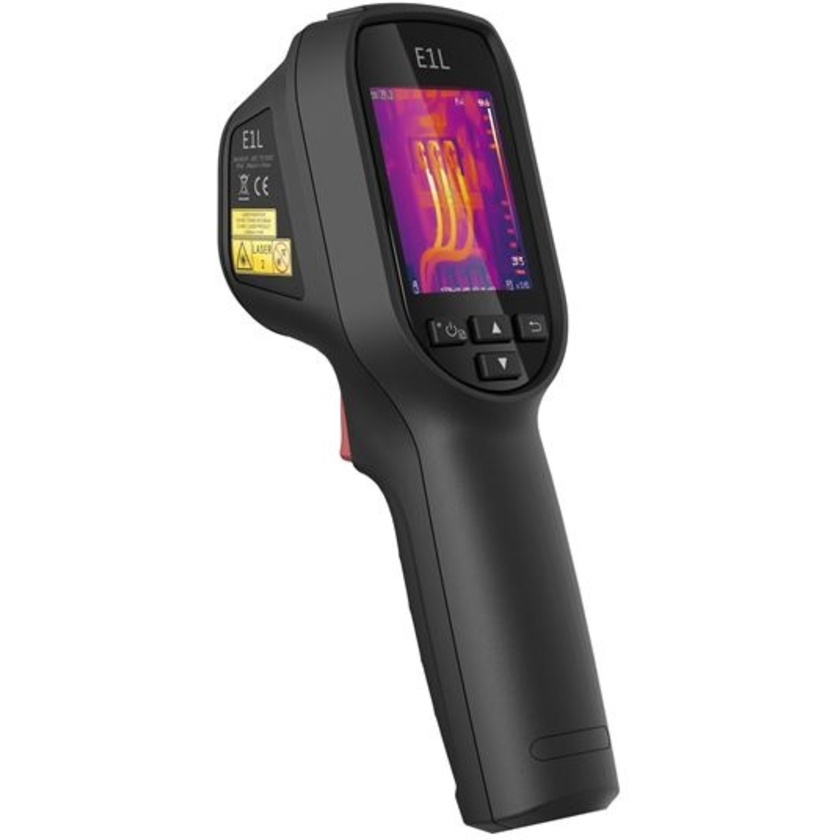

HIKMICRO E1L Compact Hand Held Thermal Imaging Camera

Name: HIKMICRO E1L Compact Hand Held Thermal Imaging Camera
Brand: HIKMICRO
SKU: 100903
Price: 1299.00 NZD
Availability: Discontinued

Product #100903 | SKU E1L | HIKMICRO

| Write a review

This product is no longer available what does this mean?

HIKMICRO E1L Compact Hand Held Thermal Imaging Camera

Not currently for sale
Contact us for more information

This product is no longer available what does this mean?

Features

2.4’’ LCD Display
Thermal Resolution 160 x 120 (19,200 Pixels)
Temperature Measurement Range -20°C~550°C
Accuracy ±2°C or ±2%
Centre Spot, Hot Spot, Cold Spot
Fixed Focus

Description Specifications In The Box

Description

The HIKMICRO E1L Compact Hand Held Thermal Imaging Camera has a thermal Resolution of 160x120 (19,200 Pixels), and a temp range of -20C to 550C. Accuracy ±2 °C or ±2%. Center Spot, Hot Spot, Cold Spot. Up to 8 hours.

Key Features

2.4’’ LCD Display
Thermal Resolution 160 x 120 (19,200 Pixels)
Temperature Measurement Range -20°C~550°C
Accuracy ±2°C or ±2%
Centre Spot, Hot Spot, Cold Spot
Fixed Focus
Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow
Removable Micro SD Card (8GB)
Up to 8 Hours of Running Time
IP54 Rated

Specifications


Thermal Module
Image Sensor	Vanadium Oxide Uncooled Focal Plane Arrays
IR Resolution	160×120 (19 200 pixels)
Pixel Pitch	17μm
Spectral Range	8_14μm
NETD	< 40mK (@ 25°C,F#=1.0)
Focal Length	3.1mm
FOV (Field of View)	37.2° × 50°
Image Frequency	25Hz
Focus	Fixed
Aperture	F1.1
Minimum Focus Distance	0.15m
Image Display
Display	320×240 Resolution, 2.4’’ LCD Screen
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow
Measurement and Analysis
Object Temperature Range	-20°C50°C
Accuracy	Max (±2°C, ±2%), for ambient temperature 15°C_{35°C and object temperature above 0°C}
Measurement Presets	Center Spot, Hot Spot, Cold Spot, Off
Storage
Storage Media	Removable Micro SD Card (8GB)
Image Storage Capacity	150 000 Images
Image File Format	JPEG with Measurement Data Included
Functions
Laser Pointer	Yes
Laser Type	ClassⅡ
Level/Span	Auto
Power System
Power Supply	3.7V DC/0.4A
Power Consumption	1.2W
Battery Type	Rechargeable Li-ion Battery
Battery Operating Time	8 Hours Continuous Running
General
Menu Language	17 Languages English/ German/ French/ Russian/ Korean/ Spanish/ Portuguese/ Italian/ Japanese/ Hungarian/ Czech/ Slovak/ Polish/ Romanian/ Danish/ Turkish/ Traditional_Chinese
Working Temperature Range	-20°C50°C
Storage Temperature Range	-20°C~60°C
Protection Level	IP54
Drop Test Height	2m
Interface	Micro USB
Weight	Approx. 350g
Dimension	196mm ×117mm ×59mm
Tripod Mounting	UNC ¼”-20
