HTC VIVE Mars CamTrack

Product #105677 | SKU 99HATB002-00 | HTC
Contact us for an ETA what does this mean?
Contact us for an ETA what does this mean?
This product can't be purchased at this time, please contact us for more information.
- +

Email me when stock arrives


Features

  • Multicamera Tracking System
  • Plug-and-Play Fast Setup
  • Unreal Live Link and FreeD Protocols
  • VIVE Inside-Out Tracking
  • Mars FIZTrack Lens Encoder.Support

Description

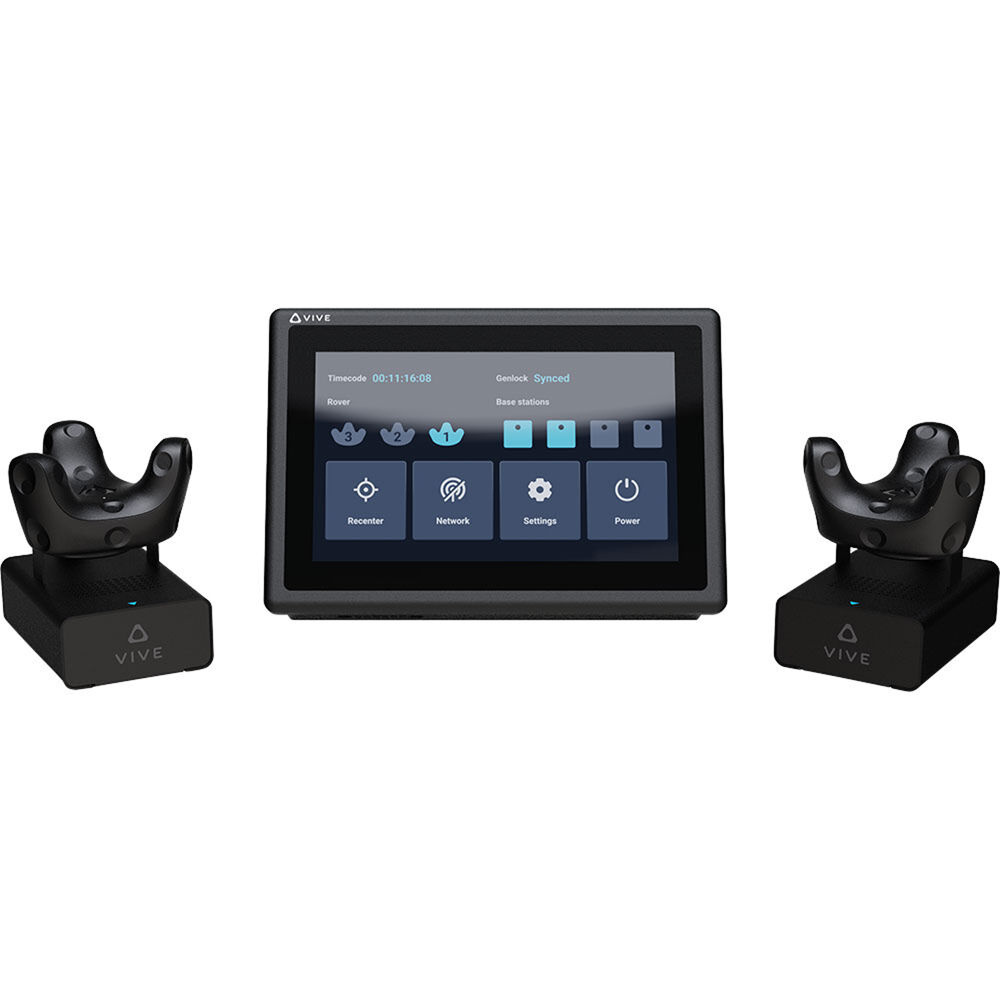

Incorporate the HTC VIVE Mars CamTrack into your virtual production projects to utilize VR tracking technology. This multicamera tracking system is equipped with two VIVE Tracker 3.0 units, a SteamVR Base Station 2.0, a Mars unit featuring a 7" LCD touchscreen, and three Rover units for seamless tracking data transmission from the VIVE Tracker to the Mars unit.

This user-friendly system offers a plug-and-play fast setup and supports Unreal Live Link and FreeD protocols, VIVE inside-out tracking, and the Mars FIZTrack Lens Encoder. The package includes a camera calibration kit with base supports for the calibration board, and powers up conveniently with the provided AC adapter and power cord. Furthermore, the Mars unit features three RJ45 ports that can provide PoE (power over Ethernet) to the three Rover units using the supplied 50' Ethernet cables.

Specifications

Display
Panel Type LCD
Display Size 7"
Touchscreen Yes
Inputs / Outputs
USB I/O 1 x USB-C Female Input/Output
4 x USB-A Female Output
Other I/O 1 x PC/LAN Port to IP Router
3 x RJ45 PoE Port to Rover Unit
1 x Ethernet Port for Rover to Mars Transmit Data
1 x 3.5 mm Analogue Audio Input for Timecode
1 x REF Input for Genlock Generator1 x Pogo Pin Port
Wireless
Global Positioning (GPS, GLONASS, etc.) Yes
Power
Power Source AC Adapter with Power Brick (Included)
Physical
Dimensions 7.7 x 5.3 x 2.6" / 196 x 134 x 65 mm (Mars Unit)
3.7 x 2.6 x 1.9" / 95 x 65 x 48 mm (Rover Unit)
Weight 3.1 lb / 1400 g (Mars Unit)
0.7 lb / 309 g (Rover Unit)

In The Box

  • HTC VIVE Mars CamTrack
  • Mars
  • Rover
  • SteamVR Base Station 2.0
  • VIVE Tracker 3.0
  • Power Cord for Mars
  • AC Adapter for Base Station
  • Mars to Rover LAN Cable (50')
  • Mars to Router LAN Cable (16.4')
  • VIVE Tracker to Rover USB Cable
  • Calibration Kit
  • Screw for Calibration Board
  • Channel Changing Pin for Base Station

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: HTC VIVE Mars CamTrack
  • Manufacturer: HTC
  • Model: 99HATB002-00
  • SKU: 99HATB002-00
  • RM Product #: 105677
