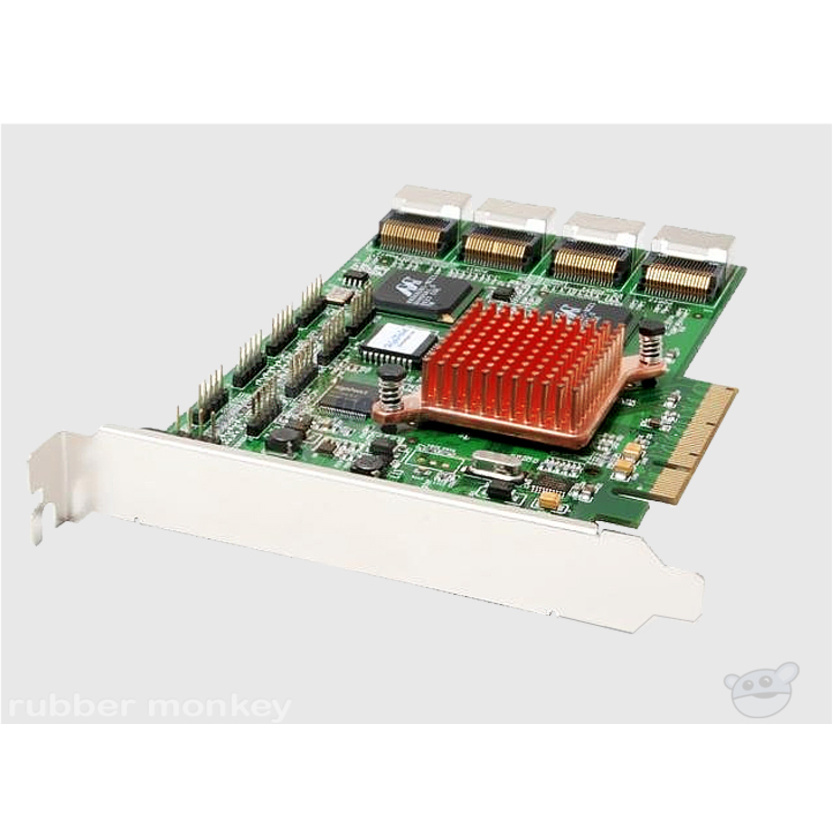

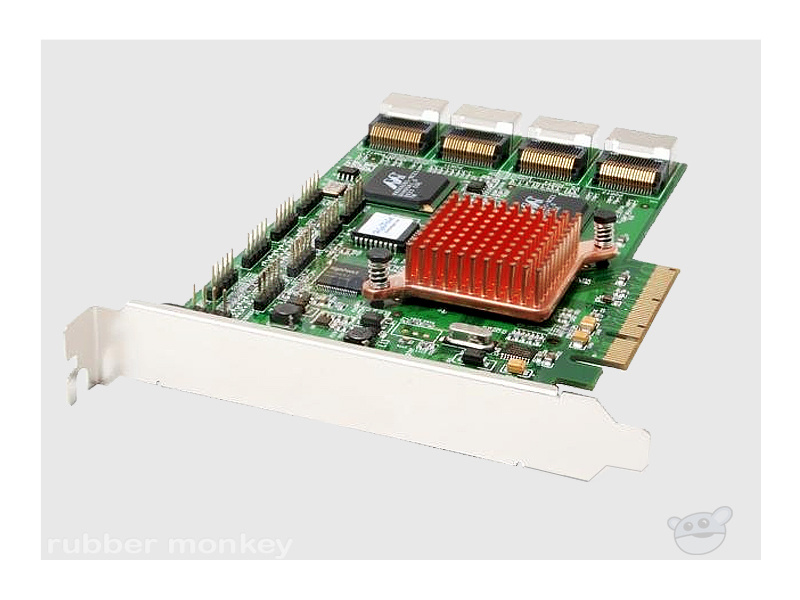

The HighPoint RR2340 Internal RAID Controller
16 port, 4x internal miniSAS, PCI-E x8 Host Adapter (SATA II)
The HighPoint RocketRAID 2340 RAID Controller offers Mini SAS connectivity solution for entry-level storage servers commonly found in small to medium size business (SMB) IT environments. The RocketRAID 2340 delivers optimized performance and features through the use of HighPoint's industry-leading RAID technology.
Features:
- PCI Express x8
- 4 Mini SAS Connectors
- 16 SATA II and SATA I hard drive support
- SAF-TE enclosure management
- Hard drive activity and Failed LED support
- Dynamic Sector Repair and Remapping
- Staggered drive spin-up support
- Hot swap and hot spare
- Write-through and write-back cache support
- Quick and Background initialization for quick RAID configuration
- Online array roaming
- BIOS booting support (INT13)
- Updating adapter BIOS through OS
- 64bit LBA for over 2TB support
- Automatic RAID rebuild of failed drive
- S.M.A.R.T drive monitoring for status and reliability
- Browser-based RAID management software
- Command Line Interface (CLI)
- SMTP for email notification
Specifications:
Supported RAID Feature: RAID 0, 1, 5, 10, 50 and JBOD
HighPoint RAID Management (HRM) Suite:
- Web GUI management utility
- CLI (Command Line Interface)
- BIOS Management
Operating Temperature:
- Work Temp +5° C ~+ 55° C
- Storage Temp ~20°C ~ 80° C
- Relative Humidity 5% ~ 60% non condensing
Electrical Characteristics:
- PCI/PCI-X+3.3V : 2.57A
- PCI/PCI-X +5.0V: 0 A
Power: 8.5W
Operating Range: +5 C~+40 C
Regulator Certification:
- FCC / CE
- MTBF Mean Time Before Failure 920,585 Hours
Operating System Support:
Microsoft Windows 2008/2003/XP/ 2000/x64 Edition/Vista 32 and 64 bit
Red Hat Enterprise Linux, Open SuSE, Fedora Core, Debian
FreeBSD
Mac OS X
Linux Open Source Drivers
Package Contents:
RocketRAID 2340 Series SATA RAID Controller
RocketRAID SATA user manual
Low profile bracket
Software CD with (Drivers and Manual)
Internal miniSAS cables
3 year warranty
