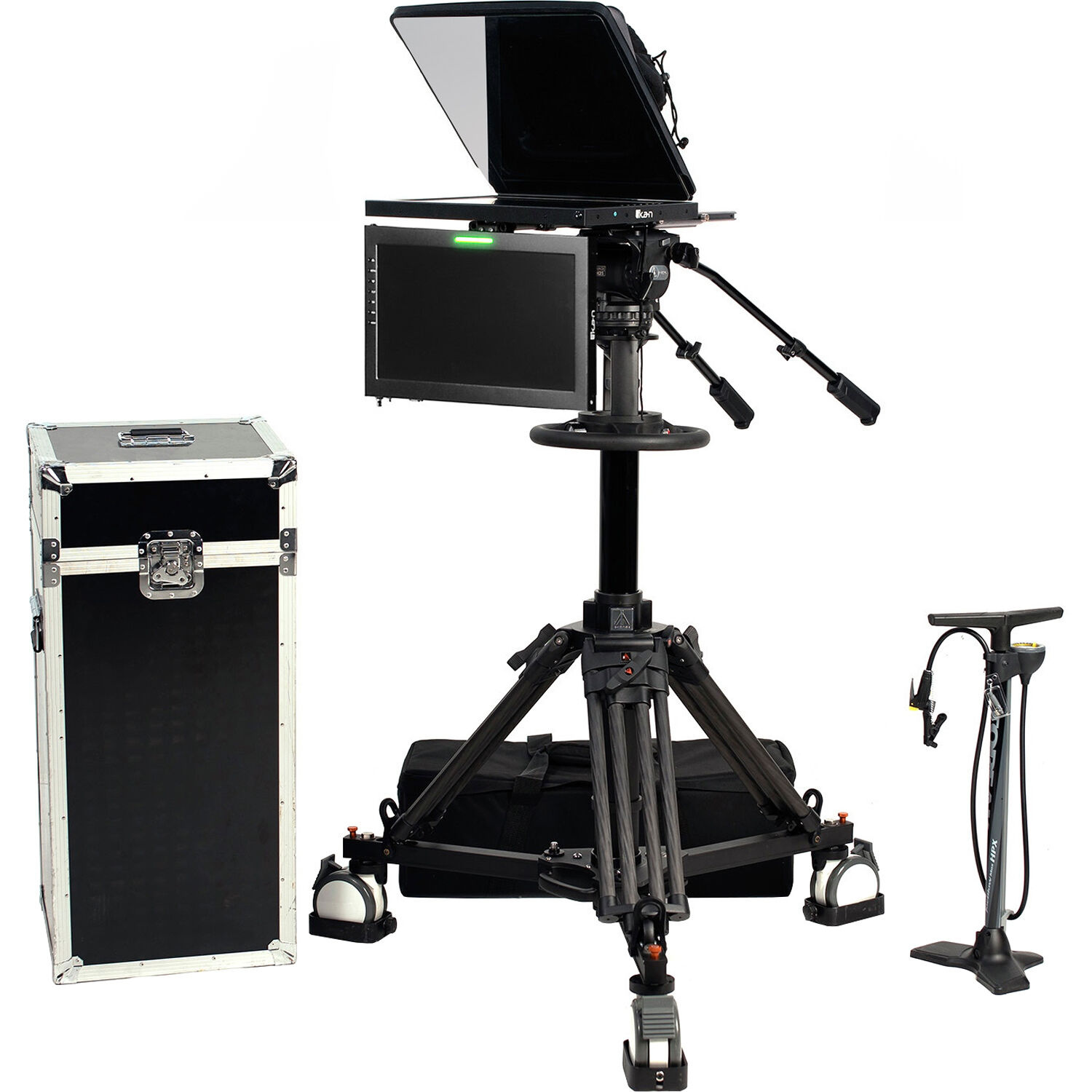

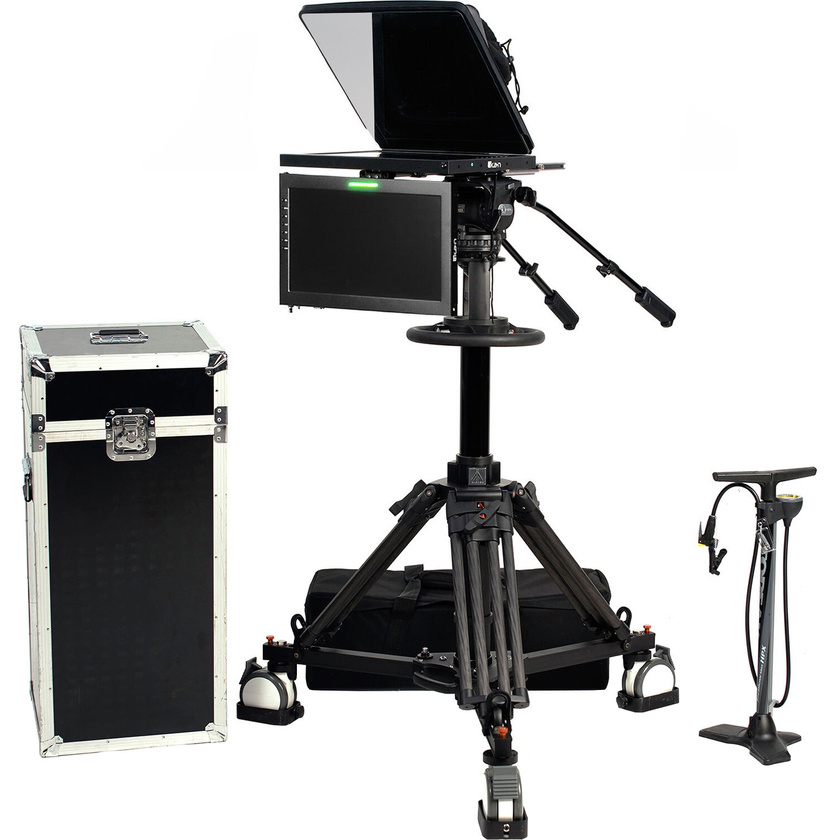

Ikan 17" SDI Teleprompter, Pedestal & Dolly Turnkey with 19" Widescreen Talent Monitor

Product #105936 | SKU PT4700S-TMW-PEDESTAL | Ikan
Special Order Usually ships in 3 - 4 weeks what does this mean?
Our Price $26,849.00
Special Order Usually ships in 3 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 4 weeks. Deliver to Auckland for $82.00 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 weeks
Click & Collect

Features

  • Widescreen Talent Monitor Included
  • 1000 cd/m² Monitor with Image Flip
  • SDI, HDMI, and VGA Inputs
  • Lightweight Aluminium Construction
  • EI-7007 Super Dolly Wheels Included
  • Carrying Case

Description

The ikan 17" SDI Teleprompter, Pedestal & Dolly Turnkey with 19" Widescreen Talent Monitor includes everything you need for your professional camera setup. This solution includes a 17″ teleprompter, pedestal, and dolly. All of ikans systems have been tested internally for payload compatibility. The teleprompter features a 17″ 1000 nit (cd/m²) monitor, 70/30 20″-wide beamsplitter glass, and a 6m reading range.

The remaining payload capacity, after mounting the full 17″ teleprompter without the counterweight, can accommodate camera setups up to 16kg. The pedestal, without the teleprompter system, can accommodate cameras up to 26kg. This solution also includes a hard case for the pedestal and a carrying bag for the dolly.

Ikan’s 4th generation professional teleprompter series is designed for a quick and easy setup to work efficiently in outside broadcast applications or professional studios. The lightweight aluminium teleprompter has multiple 3/8-16″ and 1/4-20″ for mounting to a pedestal. The teleprompter monitor includes SDI, HDMI, & VGA inputs.

The high quality 70/30 made-in-America teleprompter glass provides the perfect balance of reflection and pass-through without distorting the image. With 1000 nits the prompting image will always be crisp and visible whether you’re under the sun or studio lighting.

Specifications

General
Reading Range 20' / 6.1 m
Beamsplitter Ratio 70/30
Beamsplitter Shape Rectangular
Beamsplitter Material Glass
Tripod Mount Type 8 x 1/4"-20 Female
6 x 3/8"-16 Female
Monitor
Size (Diagonal) 17" / 43.2 cm
Maximum Brightness 1000 nits / cd/m2
Resolution 1280 x 1024
Aspect Ratio 4:3
Viewing Angle (H x V) 160 x 170°
Inputs/Outputs 1 x HD-SDI (BNC) Input
1 x HDMI Unspecified Version Input
1 x VGA Input
Self Reversing Yes
Power Consumption ≥30 W
Software
OS Compatibility Windows
macOS
*As of June, 2020: Cheque with manufacturer for the most up-to-date compatibility
Mobile App Compatible No
*As of March, 2023: Cheque with manufacturer for the most up-to-date compatibility
Physical
Material of Construction ABS, Aluminium, Cloth
Weight 23 lb / 10.43 kg
General
Format / Aspect Ratio 16:9
Display
Panel Type Not Specified by Manufacturer
Size 18.5"
Resolution 1920 x 1080
Touchscreen No
Viewing Angle (H x V) 178 x 178°
Maximum Brightness 1000 nits / cd/m2
Inputs / Outputs
Video I/O 1 x BNC (3G-SDI) Input
1 x HDMI Input
1 x DE-15/DB-15 (VGA) Input
Tally Control Input 1 x RJ45
Supported Video SDI1080p: 60/59.94/50/30/29.97/25/24/23.98
1080psf: 30/29.97/25/24
1080i: 60/59.94/50
720p: 60/50
576i: 50
480i: 60/59.94

HDMI1080p: 60/59.94/50/30/29.97/25/24/23.98
1080psf: 30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
576i/p: 50
480i/p: 60/59.94
Wireless
Wi-Fi Yes
Bluetooth Yes
Global Positioning (GPS, GLONASS, etc.) Yes
Power
Power Source AC Adapter with Power Brick (Included)
DC Input Power 12 VDC at 5 A
Power Consumption 36 W
Physical
Material of Construction Aluminium
Dimensions 18.3 x 12.3 x 1.2" / 46.5 x 31.2 x 3 cm
Weight 5.73 lb / 2.6 kg
Camera Plate
Camera Plate Features Sliding Balance Plate
Camera Mounting Screw 1 x 1/4"-20 Male
1 x 3/8"-16 Male
Head
Base Mount 100 mm Half Ball
Counter Balance Incremental 15-Step
Bubble Level 1 x Illuminated
Pan & Tilt
Drag Control Tilt: 7-Step Plus 0
Pan: 7-Step Plus 0
Vertical Tilt +90° to -70°
Independent Pan Lock Yes
Independent Tilt Lock Yes
General
Load Capacity 55 lb / 24.9 kg
Operating Temperature -40 to 176°F / -40 to 80°C
Weight 9 lb / 4.1 kg

In The Box

  • ikan PT4700-SDI Professional 17" High-Bright Teleprompter
  • ikan High-Bright Teleprompter LED Widescreen Monitor with Tally (19")
  • E-Image Heavy Duty Fluid Video Head
  • Talent Monitor Mount
  • Pneumatic Pedestal Base
  • Air Pump
  • EI-7007 Super Wheels Dolly
  • Soft Case for EI-7007
  • Rolling Hard Case
