Ikan 19" SDI Teleprompter with Talent Monitor, Pedestal & Dolly Turnkey Kit

Product #105935 | SKU PT4900S-TMW-PEDESTAL | Ikan
Special Order Usually ships in 3 - 4 weeks what does this mean?
Our Price $29,299.00
Special Order Usually ships in 3 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 4 weeks. Deliver to Auckland for $82.00 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 weeks
Click & Collect

Features

  • 19" 1280 x 1024 SDI Teleprompter Monitor
  • 19" Widescreen 3G-SDI Talent Monitor
  • Pneumatic Studio Pedestal, Fluid Head
  • EI-7007 Heavy-Duty Dolly
  • PrompterPro Software for Mac & Windows
  • Carry Case Set

Description

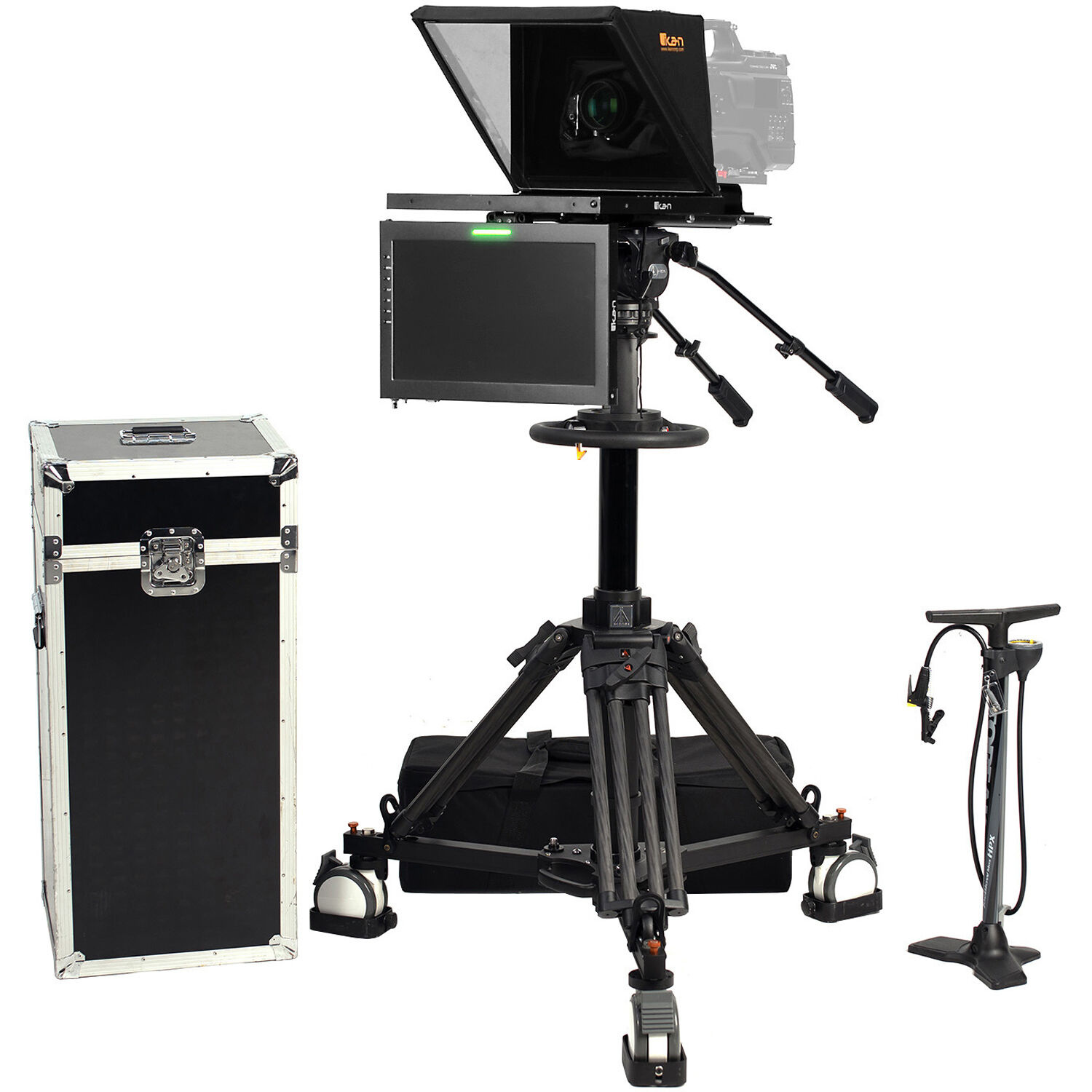

The ikan 19" SDI Teleprompter with Talent Monitor, Pedestal & Dolly Turnkey Kit includes everything you need for your professional camera setup. This solution includes a 19″ teleprompter, 19″ talent monitor, pedestal, and dolly. All of our systems have been tested internally for payload compatibility. The teleprompter features a 19″ 1000 cd/m² monitor, 70/30 20″-wide beamsplitter glass, and a 7.6m reading range. The teleprompter includes a base system that can be easily shifted forward and backwards, which enables mounting the camera to the prompter without requiring counterweights.

The remaining payload capacity, after mounting the full 19″ teleprompter, can accommodate camera setups up to 14.5kg. The pedestal, without the teleprompter system, can accommodate payloads up to 28kg. This solution also includes a hard case for the pedestal and a carrying bag for the dolly.

Ikan’s 4th generation professional teleprompter series is designed for a quick and easy setup to work efficiently in outside broadcast applications or professional studios. The lightweight aluminium teleprompter has multiple 3/8-16″ and 1/4-20″ for mounting to a pedestal. The teleprompter monitor includes HDMI, VGA, and 3G-SDI Inputs.

The high quality 70/30 made-in-America teleprompter glass provides the perfect balance of reflection and pass-through without distorting the image. With 1000 nits the prompting image will always be crisp and visible whether you’re under the sun or studio lighting.

The Teleprompter includes a 19-inch widescreen 3G-SDI Talent Monitor. A new mounting system enables you to conveniently attach the monitor right below the teleprompter to let on-camera talent see their presentations live. The monitor features 3D-SDI, HDMI, and VGA, inputs. The native resolution is 1920 x 1080 HD and max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly. When plugged into a compatible video switcher, the talent monitor utilizes a red/green tally light that lets you know when your camera is live.

Specifications

General
Reading Range 20' / 6.1 m
Beamsplitter Ratio 70/30
Beamsplitter Shape Rectangular
Beamsplitter Material Glass
Tripod Mount Type 1 x 1/4"-20 Female
1 x 3/8"-16 Female
Monitor
Size (Diagonal) 19" / 48.3 cm
Maximum Brightness 1000 nits / cd/m2
Resolution 1280 x 1024
Aspect Ratio 4:3
Viewing Angle (H x V) 160 x 170°
Inputs/Outputs 1 x 3G-SDI (BNC) Input
1 x HDMI Unspecified Version Input
1 x VGA Input
Self Reversing Yes
Power Consumption 10 W
Software
Mobile App Compatible No
*As of March, 2023: Cheque with manufacturer for the most up-to-date compatibility
Physical
Material of Construction Aluminium
Rod Length 15.7" / 400 mm
Height Adjustment None
Dimensions 30.0 x 16.0 x 15.0" / 76.2 x 40.6 x 38.1 cm
Weight 19 lb / 8.6 kg
General
Format / Aspect Ratio 16:9
Display
Panel Type Not Specified by Manufacturer
Size 18.5"
Resolution 1920 x 1080
Touchscreen No
Viewing Angle (H x V) 178 x 178°
Maximum Brightness 1000 nits / cd/m2
Inputs / Outputs
Video I/O 1 x BNC (3G-SDI) Input
1 x HDMI Input
1 x DE-15/DB-15 (VGA) Input
Tally Control Input 1 x RJ45
Supported Video SDI1080p: 60/59.94/50/30/29.97/25/24/23.98
1080psf: 30/29.97/25/24
1080i: 60/59.94/50
720p: 60/50
576i: 50
480i: 60/59.94

HDMI1080p: 60/59.94/50/30/29.97/25/24/23.98
1080psf: 30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
576i/p: 50
480i/p: 60/59.94
Wireless
Wi-Fi Yes
Bluetooth Yes
Global Positioning (GPS, GLONASS, etc.) Yes
Power
Power Source AC Adapter with Power Brick (Included)
DC Input Power 12 VDC at 5 A
Power Consumption 36 W
Physical
Material of Construction Aluminium
Dimensions 18.3 x 12.3 x 1.2" / 46.5 x 31.2 x 3 cm
Weight 5.73 lb / 2.6 kg

In The Box

  • ikan Professional 19" High-Bright Teleprompter (SDI/HDMI)
  • ikan High-Bright Teleprompter LED Widescreen Monitor with Tally (19")
  • E-Image Pneumatic Pedestal Kit with Wheeled Dolly & 100mm Head (66 lb Payload)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Ikan 19" SDI Teleprompter with Talent Monitor, Pedestal & Dolly Turnkey Kit
  • Manufacturer: Ikan
  • Model: PT4900S-TMW-PEDESTAL
  • SKU: PT4900S-TMW-PEDESTAL
  • RM Product #: 105935
  • Monitor Size: 19"
  • Prompter Configuration: LCD Monitor Prompter Kits
  • Monitor Inputs: 3G-SDI
  • Monitor Inputs: HDMI
  • Monitor Inputs: VGA
  • Prompter Features: Talent Monitor Included
  • Prompter Features: Video Pedestal Included
