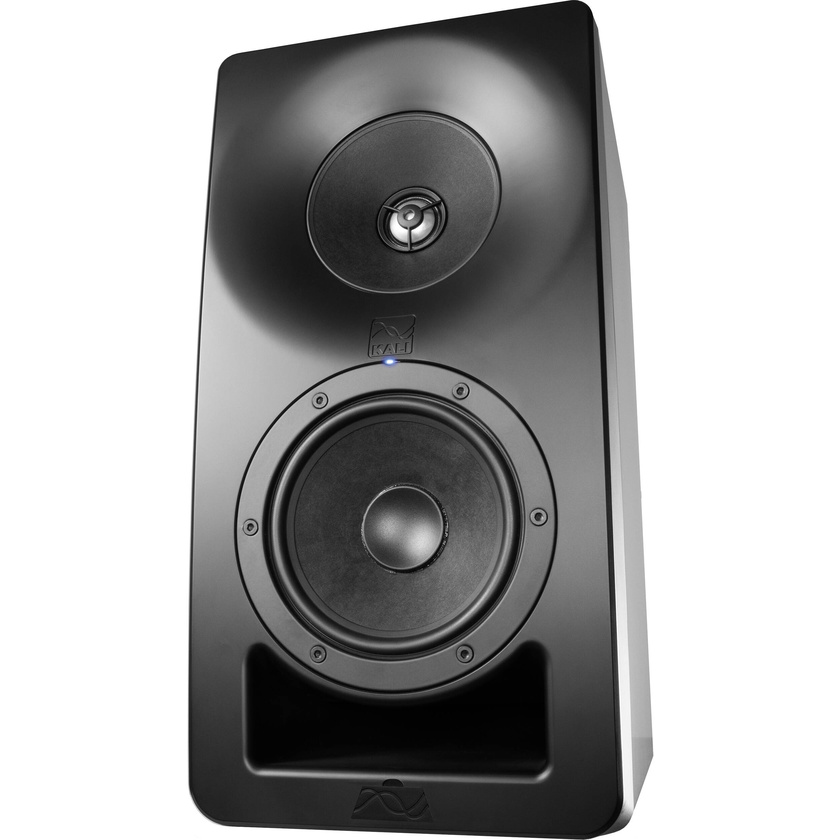

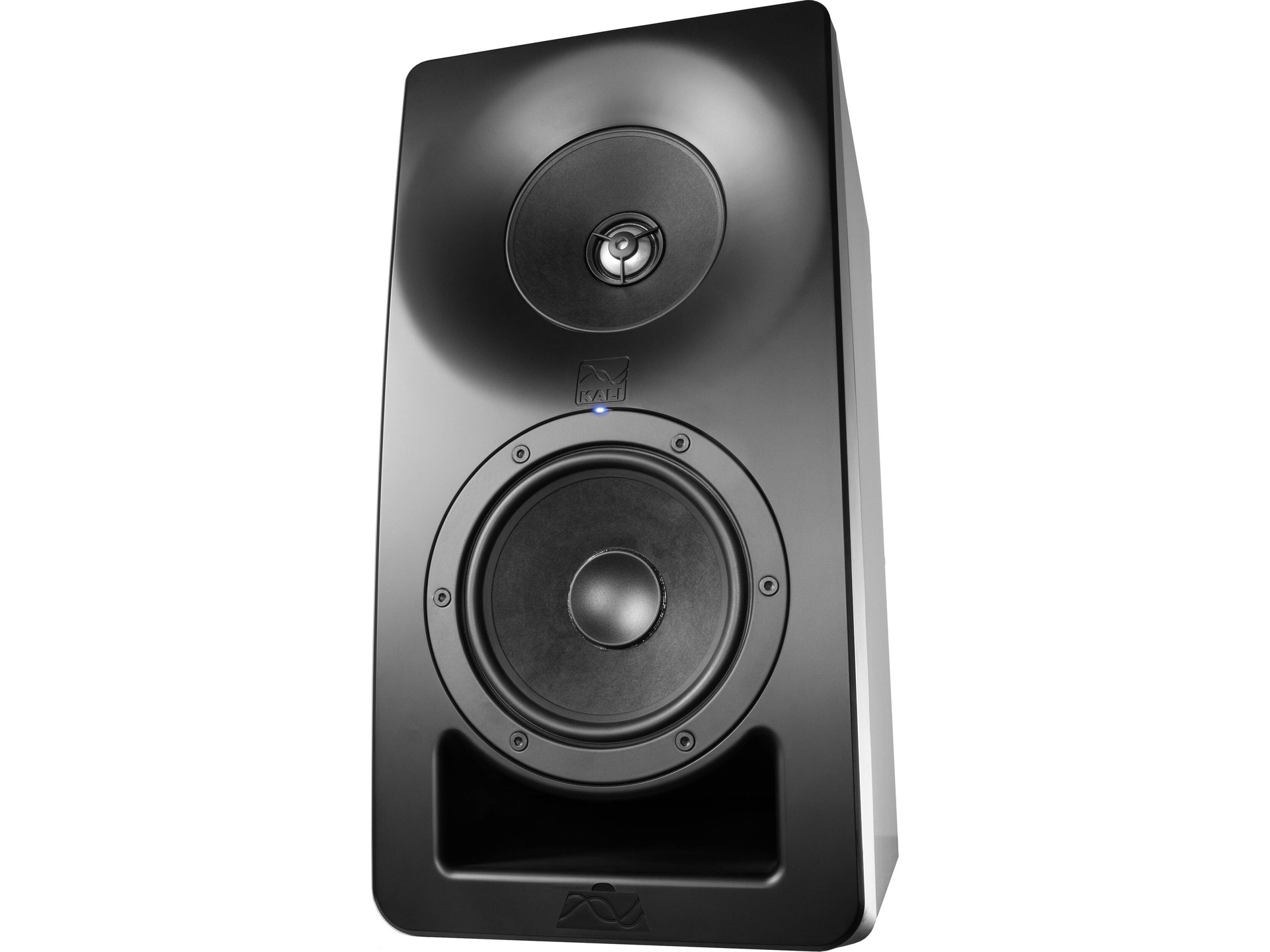

Kali Audio SM-5 3-Way 5" 225W Active Studio Monitor with Network Control (Black, Single)

Product #125115 | SKU SM-5 | Kali Audio
Usually ships in 2 - 4 weeks what does this mean?
Our Price $3,399
Usually ships in 2 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 4 weeks. Deliver to Auckland for $26 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 4 weeks
Click & Collect

Features

  • For Content Creators and Pro Mixers
  • 5" Woofer, Coaxial 4" Mid, 1" Tweeter
  • 225W Class-D Amplifier
  • 39 Hz to 28 kHz Frequency Response
  • 117 dB Max SPL
  • Onboard DSP, 8-Band AEQ, Delay, Trims

Description

The Kali Audio SM-5 3-Way 5" 225W Active Studio Monitor with Network Control (Black, Single) sets a new standard for both content creators and professional mixing engineers. This 3-way 225W active studio monitor offers advanced network control, making it an ideal choice for high-precision audio work. The SM-5 is designed with proprietary waveguide technology, delivering exceptional stereo imaging and a remarkably wide sweet spot – ensuring consistency and accuracy no matter where you are in the room.

High-Performance Driver Design

The SM-5 features a powerful 5" woofer paired with a coaxial 4" midrange driver and a 1" coaxial aluminium-dome tweeter. This combination allows for a smooth and detailed frequency response, critical for professional audio production and critical listening tasks.

Advanced DSP Calibration

Equipped with user-definable DSP parameters, the SM-5 allows each speaker to be fully calibrated for its specific environment. The onboard DSP offers 8 bands of adjustable EQ, along with delay and trim controls, empowering users to fine-tune their monitors for any room or project. Multiple calibration profiles can be stored, making it easy to adapt your setup for different rooms or mixing targets.

Immersive Audio Ready

Perfectly suited for Atmos and other immersive audio applications, the SM-5 is fully mountable using a Triad Orbit mounting bracket and arm (sold separately). This makes integration into advanced multi-speaker setups straightforward and secure, supporting a variety of studio configurations.

By blending cutting-edge technology with user-focused flexibility, the SM-5 ensures every detail of your mix is reproduced with the highest fidelity.

Specifications

Monitor Type & Configuration Active 3-Way
Number of Included Monitors Single Monitor
Enclosure Bass-Reflex/Ported
Total Power Output 225 W
Drivers
Tweeter 1x 1" / 25.4 mm Aluminium Curved Cone
Midrange 1x 4" / 10.2 cm Cone
Woofer 1x 5" / 12.7 cm Cone
Performance
Frequency Range 47 Hz to 21 kHz ± 3 dB
Frequency Response 39 Hz to 25 kHz
Maximum Sound Pressure Level (SPL) 117 dB
Total Harmonic Distortion (THD) <0.75%
Protections and Limiting Limiter
Signal Processing
Crossover Frequency 280 Hz
2800 Hz
Phase Adjustment No
Connectivity
Audio I/O Not Specified by Manufacturer
Digital Audio I/O 1x BNC Coaxial AES-3id Input
1x BNC Coaxial AES-3id Thru
Network I/O 1x RJ45 Dante
USB No
Wireless No
Mobile App Compatible No
Power
AC Input Power 110 to 240 VAC, 50/60 Hz
Power Consumption 230 W (Maximum)
Physical
Colour Black
Monitor Orientation Vertical or Horizontal
Dimensions (W x H x D) 15.6 x 9.8 x 7.9" / 39.6 x 24.9 x 20.1 cm
Weight 20.9 lb / 9.5 kg

In The Box

  • Kali Audio SM-5 3-Way 5" 225W Active Studio Monitor with Network Control (Black, Single)
  • Power Cord
