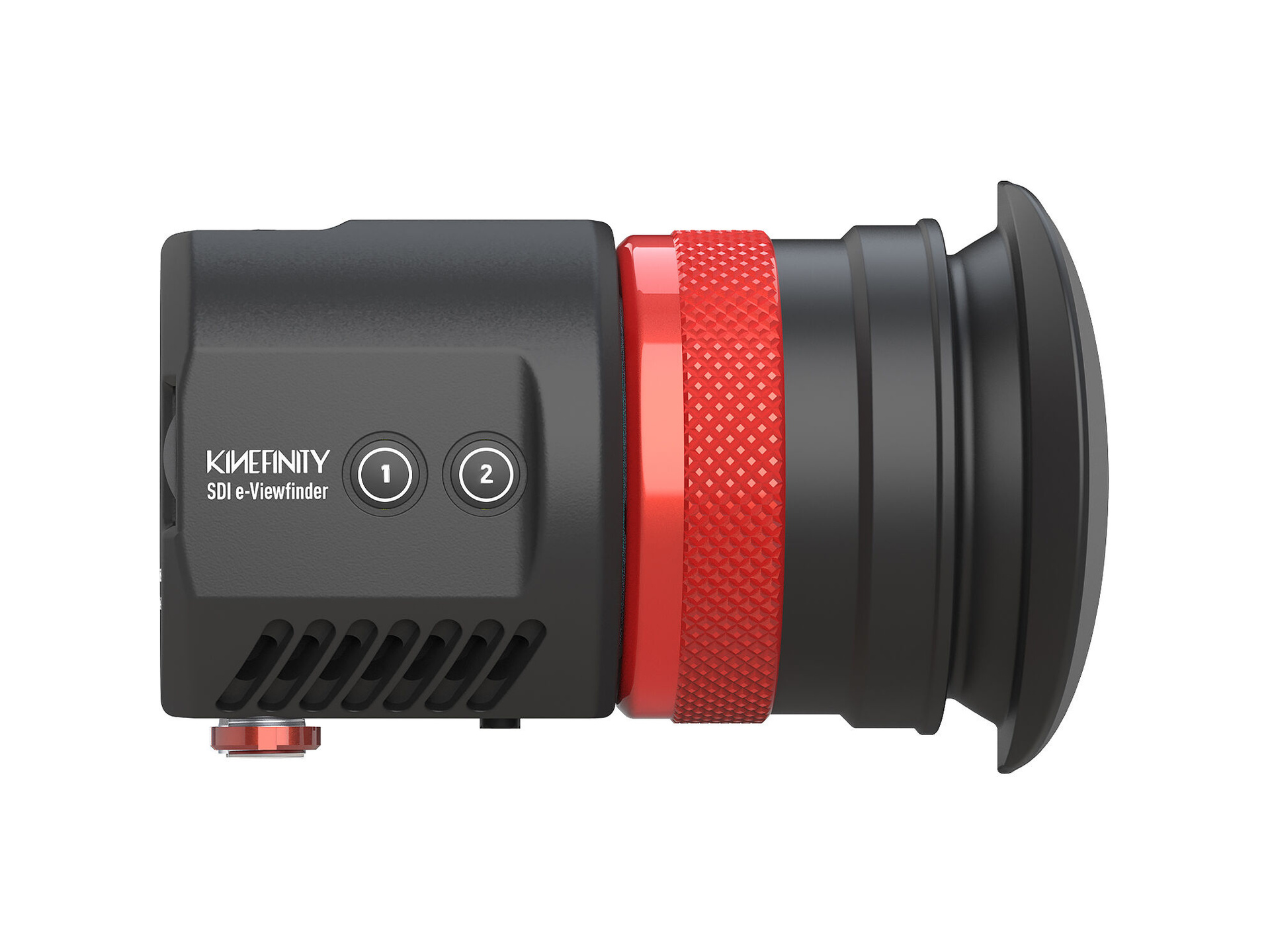

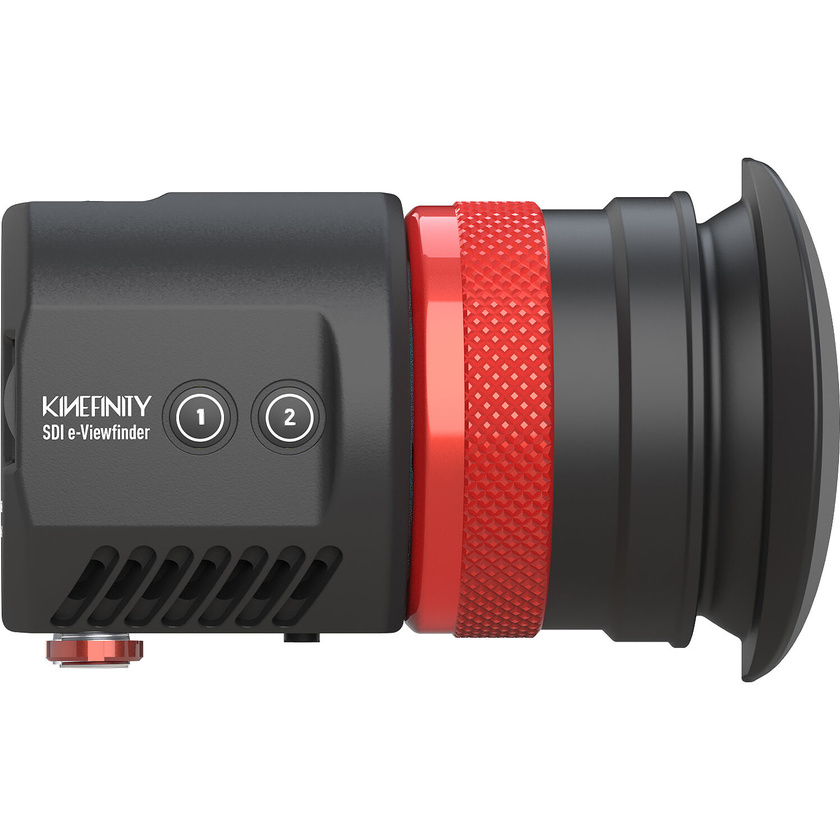

Kinefinity EAGLE SDI e-Viewfinder (Black)

Name: Kinefinity EAGLE SDI e-Viewfinder (Black)
Brand: Kinefinity
SKU: 116986
Price: 2639.00 NZD
Availability: BackOrder

Product #116986 | SKU K110-001-01 | Kinefinity

| Write a review

Kinefinity EAGLE SDI e-Viewfinder (Black)

Our Price $2,639

This product can't be purchased at this time, please contact us for more information.

Email me when stock arrives

Request price match

Talk to our experts

Features

0.7" Micro-OLED EVF with 3G-SDI Input
Up to 1080p60 SDI Input, Zero Delay
1920 x 1080 Resolution Screen
Run/Stop Trigger, D-Tap Power Cable
10,000:1 Contrast, 5 x Function Buttons
-2 to +6 Dioptre, 15.7" D-Tap Cable

Description | Specifications | In The Box

Description

Ultralight and sleek, the Kinefinity EAGLE SDI e-Viewfinder is designed to complement cine-style cameras with its SDI video input capability. With a 0.7" 1080p Micro-OLED screen, it delivers zero-delay viewing, a range of imaging tools, and 10-bit processing to ensure optimal image quality.

Thanks to its BNC input, the EAGLE SDI e-Viewfinder supports both 3G- and HD-SDI video signals, making it compatible with cine-style cameras operating at 1080p and 1080i frame rates from 23.97 to 60 fps.

The micro-OLED screen boasts 1080p resolution, providing stunning visuals with 10-bit color and a remarkable 10,000:1 contrast ratio within a 16:9 aspect ratio.

A variety of imaging tools are at your disposal, including focus peaking, magnification, waveform, histogram, false color, anamorphic de-squeeze, frame markers, overlay clear, and image flip and rotation.

Specifications


Key Specs
Panel Type	Micro-OLED
Display Size	0.7" / 1.8 cm
Screen Resolution	1920 x 1080
Image Controls	False Colour, Focus Peaking, Histogram, Image Flip, Image Rotate, RGB Parade, Screen Markers, Waveform, Zebra
Video I/O	1x BNC (3G-SDI) Input
Power I/O	1x Unspecified 5-Pin Input 1x Fischer 3-Pin Output
Other I/O	1x USB-C (Firmware)
Video Format	SDI (10-Bit) 1080p: 60/59.94/50/47.95/30/29.97/25/24/23.98 1080PsF: 29.97/25/24/23.98 1080i: 60/59.94
Dioptre Correction	-6.0 to +2.0
Power Consumption	5 W
Mounting	Rosette with 1/4"-20 Female (Right)
Display
Colour/Monochrome	Colour
Panel Type	Micro-OLED
Display Size	0.7" / 1.8 cm
Screen Resolution	1920 x 1080
Aspect Ratio	19:9
Touchscreen	No
Contrast Ratio	10,000:1
Colour Support	1.07 Billion Colours (10-Bit)
Pixels Per Inch (ppi)	3103 ppi
Image Controls	False Colour, Focus Peaking, Histogram, Image Flip, Image Rotate, RGB Parade, Screen Markers, Waveform, Zebra
Inputs / Outputs
Video I/O	1x BNC (3G-SDI) Input
Power I/O	1x Unspecified 5-Pin Input 1x Fischer 3-Pin Output
Other I/O	1x USB-C (Firmware)
Video Format	SDI (10-Bit) 1080p: 60/59.94/50/47.95/30/29.97/25/24/23.98 1080PsF: 29.97/25/24/23.98 1080i: 60/59.94
Optics
Dioptre Correction	-6.0 to +2.0
Field of View	33°
Power
Input Power	7 to 24 VDC
Power Consumption	5 W
General
Mounting	Rosette with 1/4"-20 Female (Right)
Material of Construction	Aluminium, Glass, Steel
Dimensions	4.1 x 2.4 x 2.3" / 105 x 62 x 58 mm
Weight	12.3 oz / 348 g
