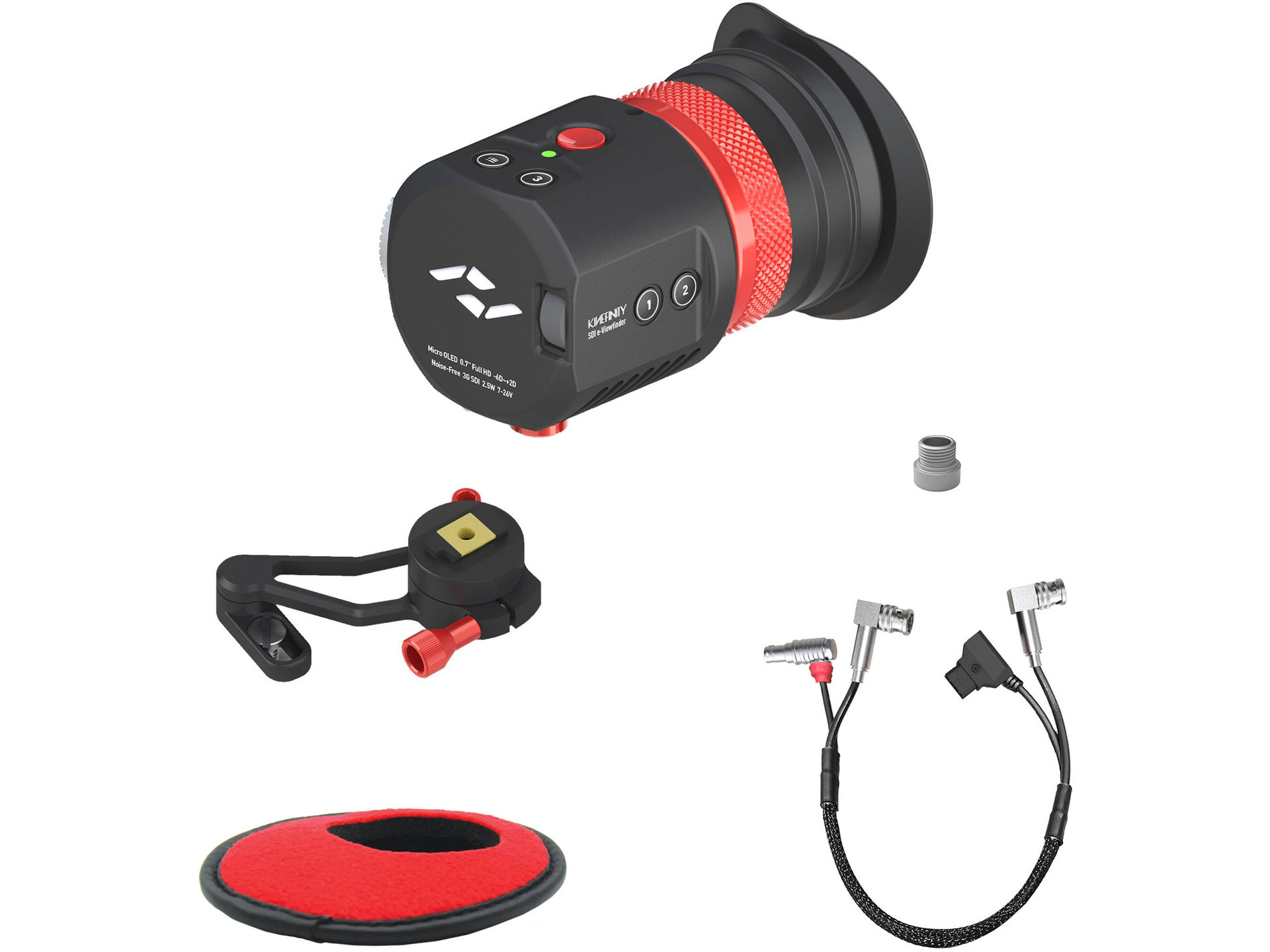

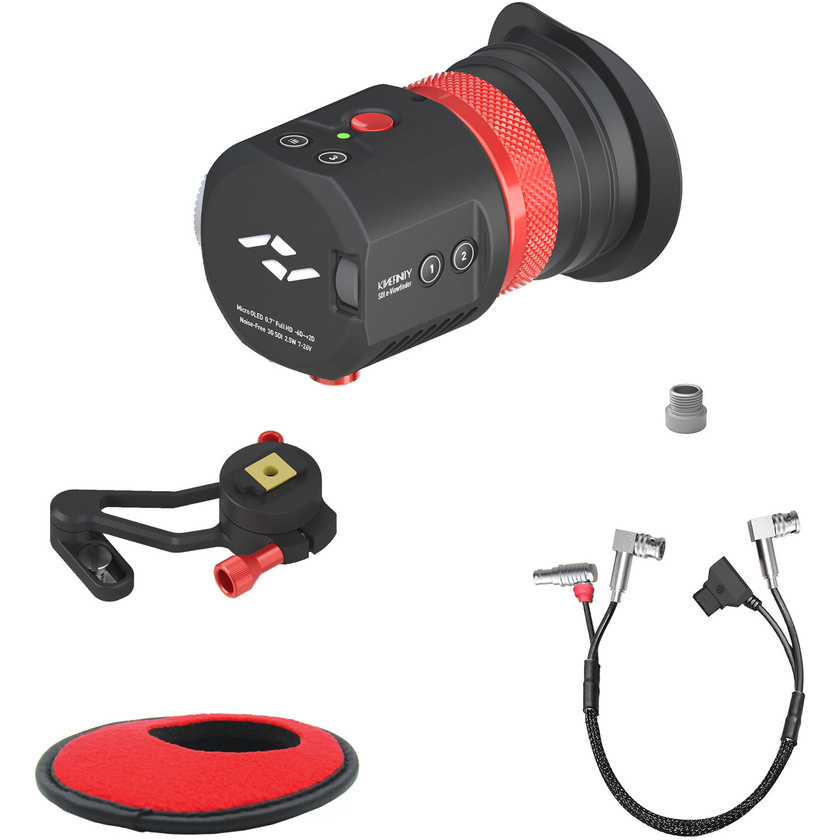

| Kinefinity EAGLE SDI e-Viewfinder |
|
| Key Specs |
|
| Panel Type |
Micro-OLED |
| Display Size |
0.7" / 1.8 cm |
| Screen Resolution |
1920 x 1080 |
| Image Controls |
False Colour, Focus Peaking, Histogram, Image Flip, Image Rotate, RGB Parade, Screen Markers, Waveform, Zebra |
| Video I/O |
1x BNC (3G-SDI) Input |
| Power I/O |
1x Unspecified 5-Pin Input
1x Fischer 3-Pin Output |
| Other I/O |
1x USB-C (Firmware) |
| Video Format |
SDI (10-Bit)
1080p: 60/59.94/50/47.95/30/29.97/25/24/23.98
1080PsF: 29.97/25/24/23.98
1080i: 60/59.94 |
| Dioptre Correction |
-6.0 to +2.0 |
| Power Consumption |
5 W |
| Mounting |
Rosette with 1/4"-20 Female (Right) |
| Display |
|
| Colour/Monochrome |
Colour |
| Panel Type |
Micro-OLED |
| Display Size |
0.7" / 1.8 cm |
| Screen Resolution |
1920 x 1080 |
| Aspect Ratio |
19:9 |
| Touchscreen |
No |
| Contrast Ratio |
10,000:1 |
| Colour Support |
1.07 Billion Colours (10-Bit) |
| Pixels Per Inch (ppi) |
3103 ppi |
| Image Controls |
False Colour, Focus Peaking, Histogram, Image Flip, Image Rotate, RGB Parade, Screen Markers, Waveform, Zebra |
| Inputs / Outputs |
|
| Video I/O |
1x BNC (3G-SDI) Input |
| Power I/O |
1x Unspecified 5-Pin Input
1x Fischer 3-Pin Output |
| Other I/O |
1x USB-C (Firmware) |
| Video Format |
SDI (10-Bit)
1080p: 60/59.94/50/47.95/30/29.97/25/24/23.98
1080PsF: 29.97/25/24/23.98
1080i: 60/59.94 |
| Optics |
|
| Dioptre Correction |
-6.0 to +2.0 |
| Field of View |
33° |
| Power |
|
| Input Power |
7 to 24 VDC |
| Power Consumption |
5 W |
| General |
|
| Mounting |
Rosette with 1/4"-20 Female (Right) |
| Material of Construction |
Aluminium, Glass, Steel |
| Dimensions |
4.1 x 2.4 x 2.3" / 105 x 62 x 58 mm |
| Weight |
12.3 oz / 348 g |
| Kinefinity Mini Mount for EAGLE SDI e-Viewfinder |
|
| General |
|
| Compatibility |
Kinefinity e-Viewfinder |
| Physical |
|
| Mounting |
1x Quick Lock
1x 1/4"-20 Screw |
| Colour |
Black |
| Material of Construction |
Aluminium Alloy |
| Dimensions |
Not Specified by Manufacturer |
| Weight |
2.6 oz / 74 g |
| Kinefinity D-Tap Cable for EAGLE SDI e-Viewfinder (15.7") |
|
| General |
|
| Compatibility |
Kinefinity EAGLE SDI e-Viewfinder |
| Inputs / Outputs |
|
| Connector 1 |
1x BNC, Right-Angle Female
1x 5-Pin 0B LEMO-Type, Right-Angle Male |
| Connector 2 |
1x BNC, Right-Angle Female
1x D-Tap, Right-Angle Male |
| Physical |
|
| Colour |
Black |
| Cable Length |
15.7" / 40 cm |
| Weight |
2.5 oz / 72 g |
