Kondor Blue Ultimate Rig for Blackmagic Design URSA Mini 12K/4.6K/4K (Space Grey)

Product #112319 | SKU KB_URSAM_Urig | Kondor Blue
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Modular Camera Cage, Trigger Top Handle
  • Universal ARRI 15mm Bridge Plate System
  • Dual Handgrips with Rosette Arms Bundle
  • Gold Mount Battery Plate
  • Multiple 1/4"-20 and 3/8"-16 Threads
  • Shoe Mounts, NATO Rails, Side Rosette

Description

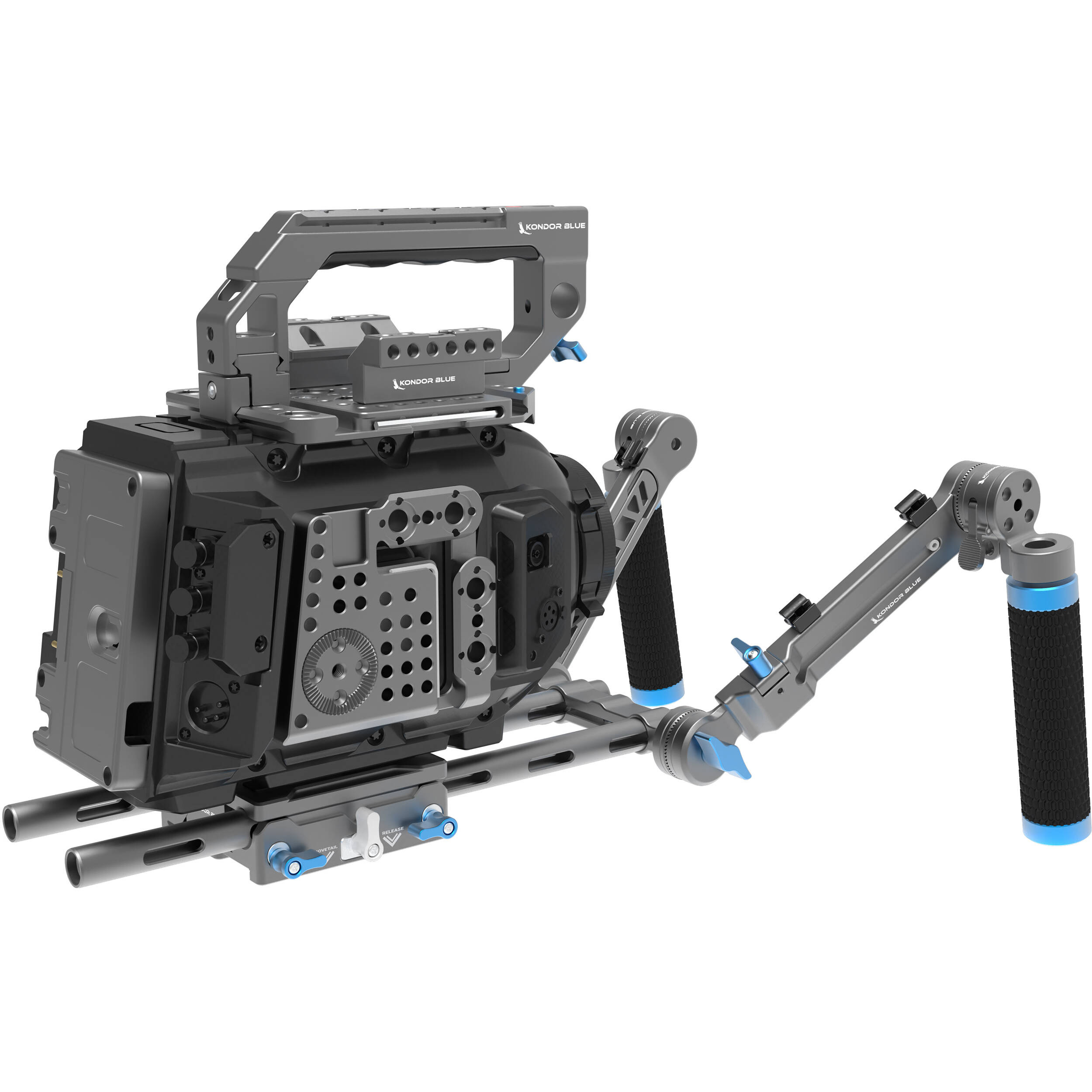

The Kondor Blue Ultimate Rig for Blackmagic Design URSA Mini 12K/4.6K/4K offers protection, handheld functionality, and a range of accessories for your Blackmagic Design URSA Mini 12K, 4.6K, or 4K cinema camera. This modular rig consists of a two-piece camera cage, a trigger top handle, a 15mm ARRI bridge plate, a Gold mount battery plate, two rosette extension arms, two rubber handgrips, and two 12" long 15mm rods.

The camera cage mounts on two sides of the camera, allowing easy access to all the ports and controls. Each component of the rig can be used separately or together. The cage features an ARRI-style rosette, a shoe mount, and various mounting threads on the side. The top plate has multiple threads, two NATO rails, and a bubble level. The sturdy metal Gold mount battery plate attaches to the back of the camera and provides a slot for a high-capacity Gold mount battery to power your rig.

The top handle connects to the dual NATO rails using a dual NATO clamp system. It offers start/stop trigger communication with the URSA Mini via a LANC cable. Additionally, it includes a shoe mount and 1/4"-20 and 3/8"-16 ARRI-style accessory threads for attaching extra accessories.

The bridge plate features a quick-release ARRI-standard dovetail plate, standard 15mm LWS rod ports, 1/4"-20 and 3/8"-16 camera screws, and multiple 1/4"-20 and 3/8"-16 tripod mounting threads. The two included 12" long aluminum 15mm rods have threaded ends. The two rosette arms attach to the 15mm rod block, which then mounts onto the 15mm rods, creating a handheld shoulder rig. The rubber handgrips can rotate and attach to the ends of the extension arms, offering comfortable handheld operation.

Specifications

Kondor Blue Camera Cage For Blackmagic Design URSA Mini 12K, 4.6K & 4K (Cage Only, Space Gray)
Support Type Cage
Grip Type No
Camera Compatibility Blackmagic URSA Mini
Mounting
Battery Plate Type No
Accessory Mounting Cage
Multiplex 1/4"-20 Female Thread
Multiplex ARRI Anti-Twist 3/8"-16 Female Thread
Shoe Mounting Side Plate
1x Cold Shoe
Rosettes Cage, Side
1x ARRI Rosette w/ M6 Female Thread
Rail Mounting Cage, Top
2x NATO Rail
Kondor Blue PPSH 15mm Rods (Pair, Space Gray, 12")
General
Dimensions Not Specified by Manufacturer
Weight Not Specified by Manufacturer
General
Diameter 15 mm
Length 12" / 30.5 cm
Material Aluminium
Thread Type Female / Female
Thread Size 12 mm
Number of Rods 2
Weight 2 oz / 57 g

In The Box

  • Kondor Blue Camera Cage for Blackmagic Design URSA Mini 12K, 4.6K & 4K (Cage Only, Space Gray)
  • Kondor Blue PPSH 15mm Rods (Pair, Space Gray, 12")
  • Kondor Blue Rosette Arms, Grips, and 15mm Rod Block Bundle (Space Gray)
  • 15mm LWS ARRI Bridge Plate
  • Gold Mount Battery Plate
  • Trigger Top Handle

Reviews

0.0 (no ratings yet)

Details

  • Product: Kondor Blue Ultimate Rig for Blackmagic Design URSA Mini 12K/4.6K/4K (Space Grey)
  • Manufacturer: Kondor Blue
  • Model: KB_URSAM_Urig
  • SKU: KB_URSAM_Urig
  • RM Product #: 112319
  • Compatible With: Blackmagic URSA Mini
  • Support Type: Hand-Held Support w/Cage
