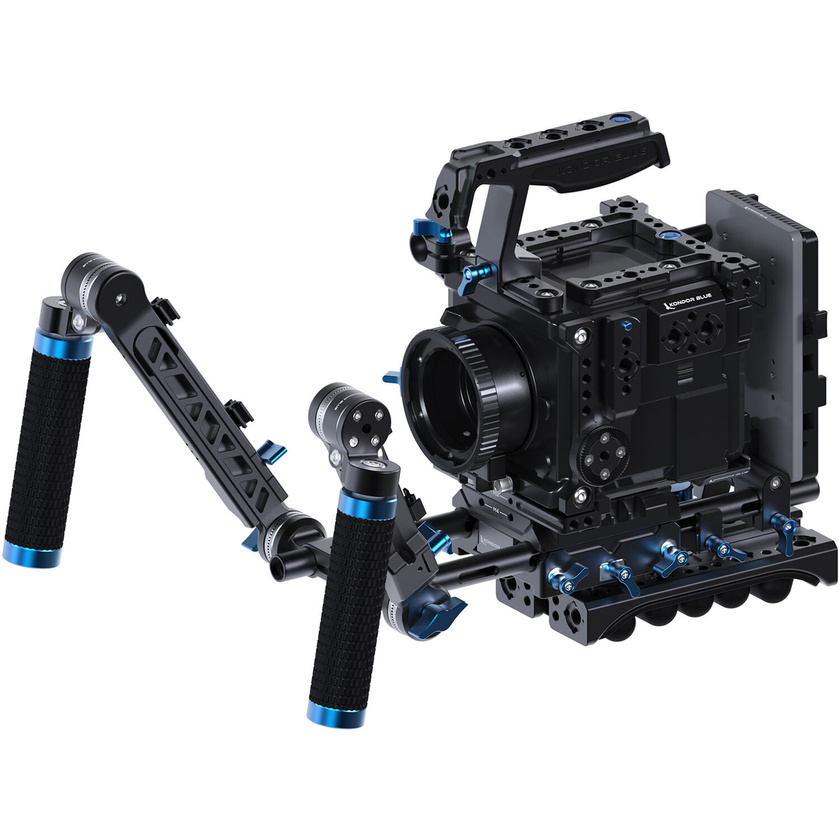

Kondor Blue Ultimate Rig for RED V-RAPTOR (Raven Black)
Features
- For RED V-RAPTOR
- Multiple 1/4"-20 & 3/8"-16 Threads
- V-Mount Battery Plate
- Four NATO Rails, Single-Rod Clamp
- ARRI Rosette, 15mm Rods
- Ergonomic Top Handle, Handgrip Bundle
Description
The Kondor Blue Ultimate Rig for RED V-RAPTOR consists of:
- 1x RED V-Raptor Cage w/ Talon Top Handle
- 1x LWS ARRI Bridgeplate for V-Raptor
- 2x 15MM PPSH Rods (12 Inches)
- 1x RF Cine Cap
- 1xV-Mount Battery Plate
- 1x D-Tap to RED Raptor DSMC3 Power Cable
- 1x Rosette Arms, Grips & Clamp Bundle
- 1x QR Swivel Shoulder Pad
Key Features
Modular Design: Each plate can be mounted independently from the rest so you can custom-build your perfect rig!
Top NATO: Low Profile NATO rail with single rod clamp perfect for focus motors, 1/4"-20 and ARRI 3/8"-16 threads
Top U-Plate: Dual NATO rails with built-in safety stops, ¼”-20 and ARRI ⅜”-16 threads, bubble level, and accessory wings ideal for Kondor Blue Mini Quick Releases and Wireless Transmitters
Side Plates: Symmetrical Rosettes, Vertical NATO rail on the left plate with Safety Pins, 1/4"-20 and ARRI 3/8"-16 threads
Bottom Plate: Helicoil steel threads, Magnetic Tool, Side Wings with 1/4"-20 threads, Rubber Pads for Camera Protection, asymmetrical design to support RED's V-Raptor Expander Blade
NEW Talon Top Handle: Ultimate comfort and functionality with ergonomic rubber grip.
LWS ARRI Bridgeplate: Add 15mm Rod Support, Quick Release functionality, and the standard 85mm height for matte boxes.
15MM PPSH Rods: Lightest aluminum rods in the industry without sacrificing strength. Our unique cut-out design also allows for cable management within the rods.
QR Swivel Shoulder Pad: with adjustable air pressure padding to dial in the desired comfort. Compatible with our dovetail or 15mm rod support for quick mounting on the go. The pad will also swivel to act as a knee or chest pad.
V-Mount Battery Plate: features multiple DC outputs (5, 7.4, 12, 15V, and a D-Tap), enabling you to power multiple devices simultaneously as well as doubling as a battery charger.
ROSETTE ARMS AND GRIPS: allow for quickly adjusting the angle of your grip with a push of a button. The arms can also extend to make sure you have optimum comfort during long takes.
Specifications
General | |
Mounting | NATO Rail 15 mm Rod Clamp 4 x 1/4"-20 Threads 1 x ARRI 3/8"-16 Thread |
Compatible Cameras | RED V-RAPTOR RED KOMODO |
Dimensions | NSBM |
Weight | NSBM |
General | |
Compatibility | RED V-RAPTOR |
Physical | |
Mounting | Multiple x 1/4"-20 Threads Multiple x ARRI-Style 3/8"-16 Threads 2 x NATO Rails |
Colour | Black |
Dimensions | Not Specified by Manufacturer |
Weight | 3 oz / 85 g |
General | |
Compatibility | RED V-RAPTOR |
Physical | |
Mounting | Multiple x 1/4"-20 Threads Multiple x ARRI-Style 3/8"-16 Threads 1 x NATO Rail 1 x ARRI Rosette |
Colour | Black |
Dimensions | Not Specified by Manufacturer |
Weight | 3 oz / 85 g |
General | |
Compatibility | RED V-RAPTOR |
Physical | |
Mounting | 4 x 1/4"-20 Thread 1 x ARRI Rosette |
Colour | Black |
Dimensions | Not Specified by Manufacturer |
Weight | 1.5 oz / 43 g |
General | |
Compatibility | RED V-RAPTOR |
Material of Construction | Helicoil Steel Threads, Rubber Padding |
Mounting | Multiple 1/4"-20 Threads |
Dimensions | NSBM |
Weight | 6 oz / 170.1 g |
Diameter | 15 mm |
Length | 12" / 30.5 cm |
Material | Aluminium |
Thread Type | Female / Female |
Thread Size | 12 mm |
Number of Rods | 2 |
Camera Body Mount | Canon RF |
Material | Aluminium |
Power | |
Power Input | DC Jack: 15 VDC |
Power Output | D-Tap: VDC DC Jack: 15 VDC DC Jack: 12 VDC DC Jack: 7.4 to 8.4 VDC DC Jack: 5 VDC |
General | |
Camera Power Method | Connector |
Inputs/Outputs | 1 x D-Tap 4 x 2.5 mm Coaxial 1 x DC Jack |
Plate Front / Battery Mount | V-Mount |
Plate Rear Mount | 15 mm Rod Clamp |
Number of Battery Bays | 1 |
Material of Construction | ABS Plastic, Aluminium |
Dimensions | 20.3 x 12.7 x 5.1 cm |
Weight | 277.8 g |
Connector 1 | 1 x D-Tap Male (Right-Angle) |
Connector 2 | 1 x 6-Pin LEMO LEMO-Type Female |
LED Indicators | No |
Cable Length | 508 mm |
Weight | 40 g |
In The Box
- Kondor Blue Top NATO Rail with 15mm Rod Clamp for RED V-RAPTOR (Raven Black)
- Kondor Blue Top U-Plate for RED V-RAPTOR (Raven Black)
- Kondor Blue Left-Side Plate for RED V-RAPTOR (Raven Black)
- Kondor Blue Right-Side Plate for RED V-RAPTOR (Raven Black)
- Kondor Blue Bottom Plate for RED V-RAPTOR (Raven Black)
- Kondor Blue PPSH 15mm Rods (Pair, Black, 12")
- Kondor Blue Aluminium Body Cap for Canon RF Mount Cameras (Black)
- Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Raven Black)
- Kondor Blue D-Tap to LEMO 6-Pin Cable for RED RAPTOR DSMC2/3 (20")
- Kondor Blue Rosette Arms, Grips, and 15mm Rod Block Bundle (Raven Black)
- Top Handle
- Quick Release Swivel Shoulder Pad
