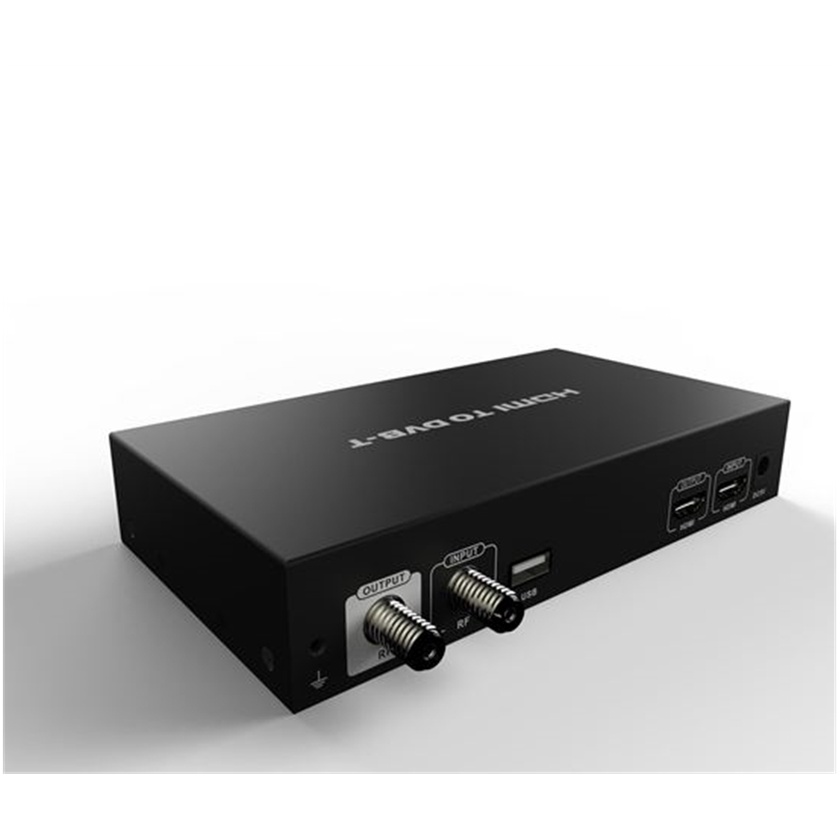

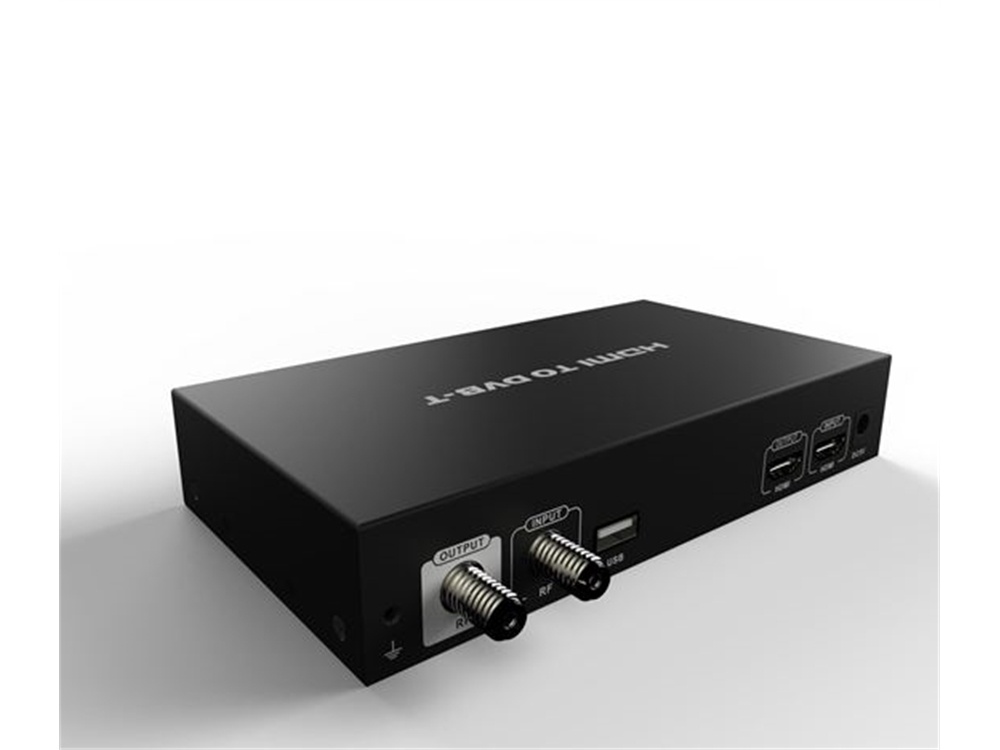

Lenkeng HDMI to RF Digital Modulator with Loop Out Port

Product #55364 | SKU LKV379DVB-TLP | Lenkeng
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Overview

Perfect solution to distribute HDMI signal to DVB-T1 standard digital cable television via coaxial cables

Description

This Lenkeng HDMI to RF Digital Modulator with Loop Out Port is an HDMI to DVB-T Converter, perfect solution to distribute HDMI signal to DVB-T1 standard digital cable television via coaxial cables. Output can be set to any channel number and injects directly to your CATV splitter to distribute to all your TVs, co-existing with all your current regular channels. This HDMI to DVB-T Converter can be installed to distribute as many channels as you need.

Features

  • Support DVB-T1 digital high definition RF signal output
  • Includes HDMI Loop Out Port
  • HDMI input signal resolution up to full HD 1080p@60Hz
  • Distribute one source to multiple displays with one modulator via CATV splitter
  • Support multiple modulators be installed to distribute as many channels you need
  • Firmware upgradeable via USB port
  • “Service Name”, ”Channel” and “Country” can be revised by buttons
  • Strong anti-noise and anti-interference ability

Specifications

HDMI Signal HDMI1.3,fully compatible HDCP
HDMI Loop Out Port Yes
HDMI DDC Signal 5Vp-p (TTL)
HDMI TMDS Signal 0.51.5Vp-p (TMDS)
Input HDMI Resolution supported 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
HDMI graphics resolution 1280x720@60Hz, 1920x1080@60Hz
Video Encoding H.264
Audio Encoding MPEG2
Coaxial output Standard DVB-T1
Coaxial Cable reqired RG6, RG7, RG11
Frequency 1001000MHz
Effective Bit Ratio Max: 31.6M bits
Insert Loss < 2dBm
RF output Wattage(TX) -7dBm-3dBm
RF Interface British system (75Ω type F)
Delay Time 100-150ms (Depends on the decoding ability of receivers)
Audio Format Stereo PMC (44.1kbps, 48kbps)
Power 5V/1A DC
Product Consumption 3.5W
Working Temperature 0°C50°C
Stock Temperature -10°C~70°C
Relative Humidity 0% ~ 90%
Product Dimension 158x115x33mm

Reviews

0.0 (no ratings yet)

Details

  • Product: Lenkeng HDMI to RF Digital Modulator with Loop Out Port
  • Manufacturer: Lenkeng
  • Model: LKV379DVB-TLP
  • SKU: LKV379DVB-TLP
  • RM Product #: 55364
  • Warranty: 2 year manufacturer warranty
