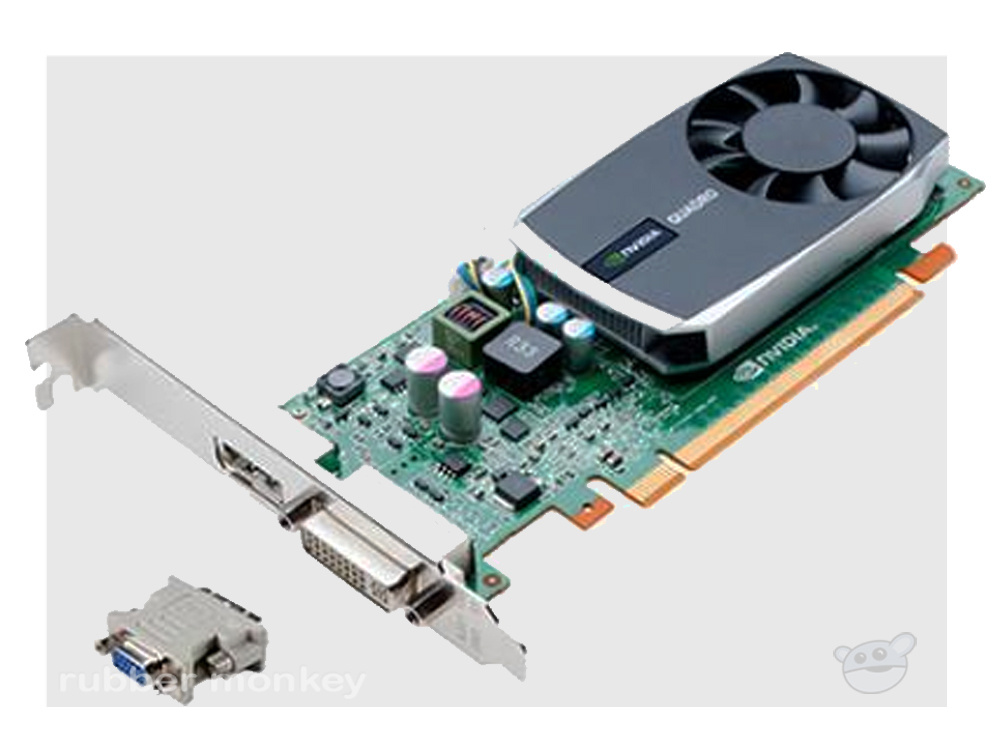

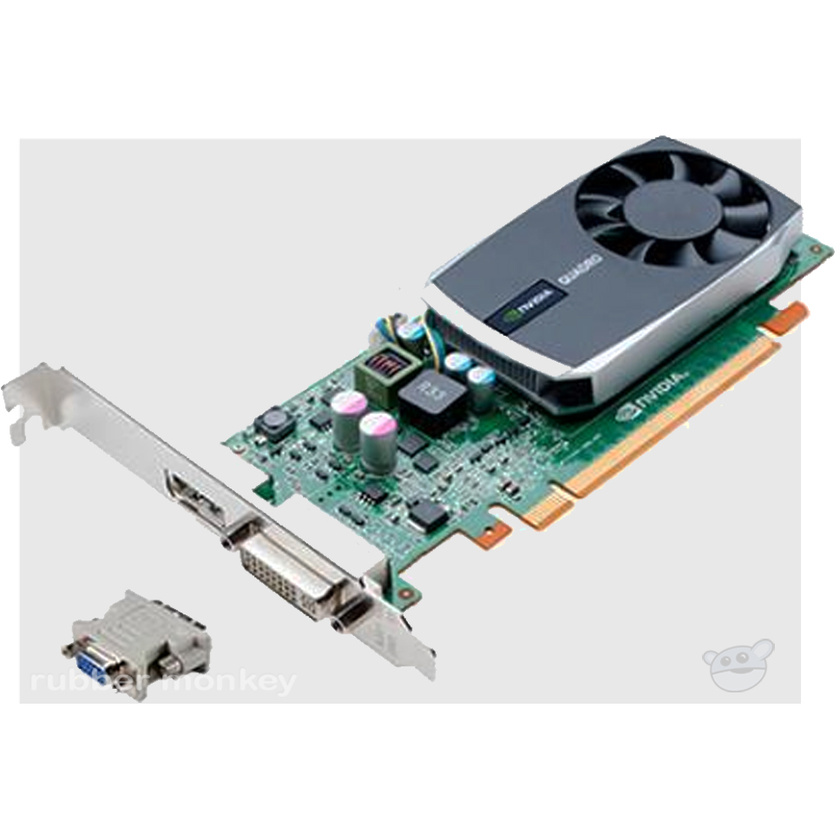

The NVIDIA® Quadro® 600 professional graphics solution delivers exceptional value to the entry level professional graphics market. Today’s applications harness the NVIDIA Scalable Geometry Engine of the Quadro GPU to achieve improved performance when using the leading CAD and DCC applications. Further accelerate applications using NVIDIA’s professional software technologies including CUDA, NVIDIA Application Acceleration Engines and optimized drivers. The Quadro 600 delivers the productivity to design, iterate and deliver higher quality results in less time.
Features & Benefits:
- 1 GB 128-bit, DDR3 memory configuration, 25.6 GB/s memory bandwidth
- 96 CUDA Parallel Processing Cores
- 640 MHz Core GPU Clock, 800 MHz Memory Clock
- Dual-Link DVI-I and DisplayPort monitor connectors that allows attachment of two, 2560 x 1600 resolution monitors
- NVIDIA® Scalable Geometry Engine that improves geometry performance across a broad range of CAD, DCC and medical applications
- GPU Tessellation with Shader Model 5.0 automatically generate finely detailed geometry, for cinematic quality environments and scenes, without sacrificing performance
- NVIDIA Mosaic Technology enables transparent scaling of any application across eight display channels
- Shader Model 5.0, OpenGL 4.1 and Microsoft Direct X 11
- Includes a DVI-to-VGA monitor adapter that allows attachment of one VGA analog monitor, to the Dual-Link DVI-I display connector, with a 2048 x 1536 maximum resolution
Note: Attach DVI-D digital monitors, 1920 x 1200 maximum resolution, using the DisplayPort to Single-Link DVI-D Monitor Cable (45J7915). For more information, please visit: www.lenovo.com/support/monitoraccessories
Technical Specifications
General
- Part number: 0A36183
- Description: NVIDIA Quadro 600 96-core CUDA 1GB Dual-Link DVI, Dual DisplayPort Graphics Card
- Limited warranty period: Three Year
Weight & dimensions
- Depth: 167 mm
- Height: 66 mm
- Width: 21 mm
Graphics
- Description: NVIDIA Quadro 600
- Form Factor: LP
- Graphics bus interface: PCI Express x16
- Graphics chipset: NVIDIA
- Graphics data width: 128
- Graphics type: --
- Video RAM maximum: 1 GB
- Video RAM std/max: 1GB
- Video RAM type: GDDR3
- Video on Planar: No
Technical Information
- Remote Control: No
- Supported Software Applications: ThinkStation E20, E30, C20, C20x, D20, S20
Environmental Information
- Maximum Operating YYYY: 90 %
- Maximum Operating Temperature: 55 C
- Minimum Operating HumidityXXX: 5 %
- Minimum Operating Temperature: 0 C
Architecture
- Depth Metric: 167 mm
- Height Metric: 66 mm
- Height US: 2.7 in
- Weight Metric[2]: 0.43 Kg
- Weight US[2]: 0.9 lbs
- Width Metric: 21 mm
- Width US: 0.8 in
