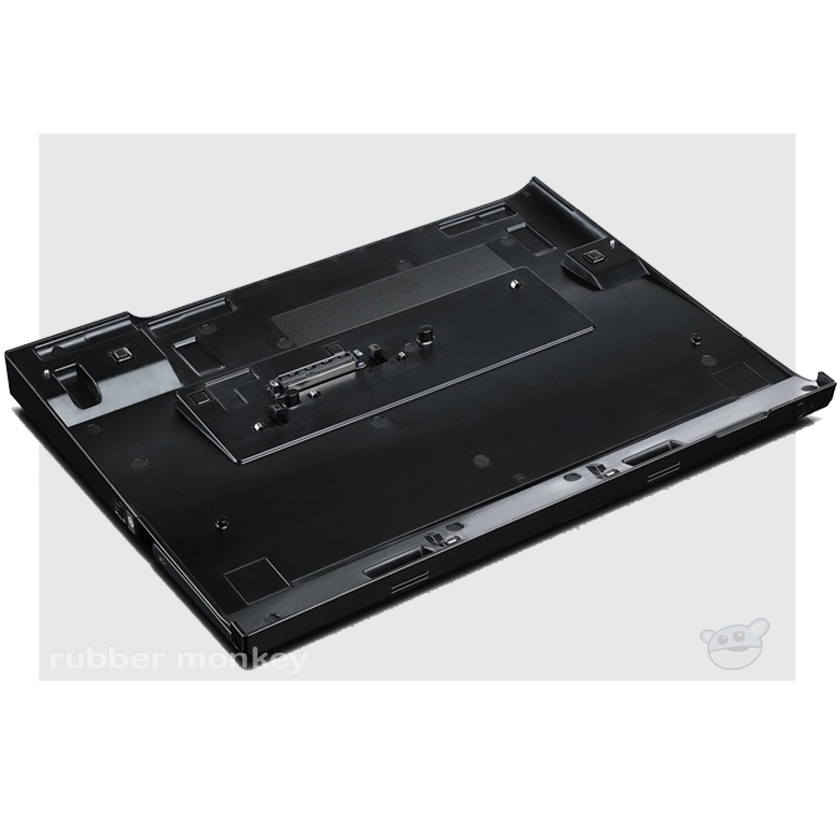

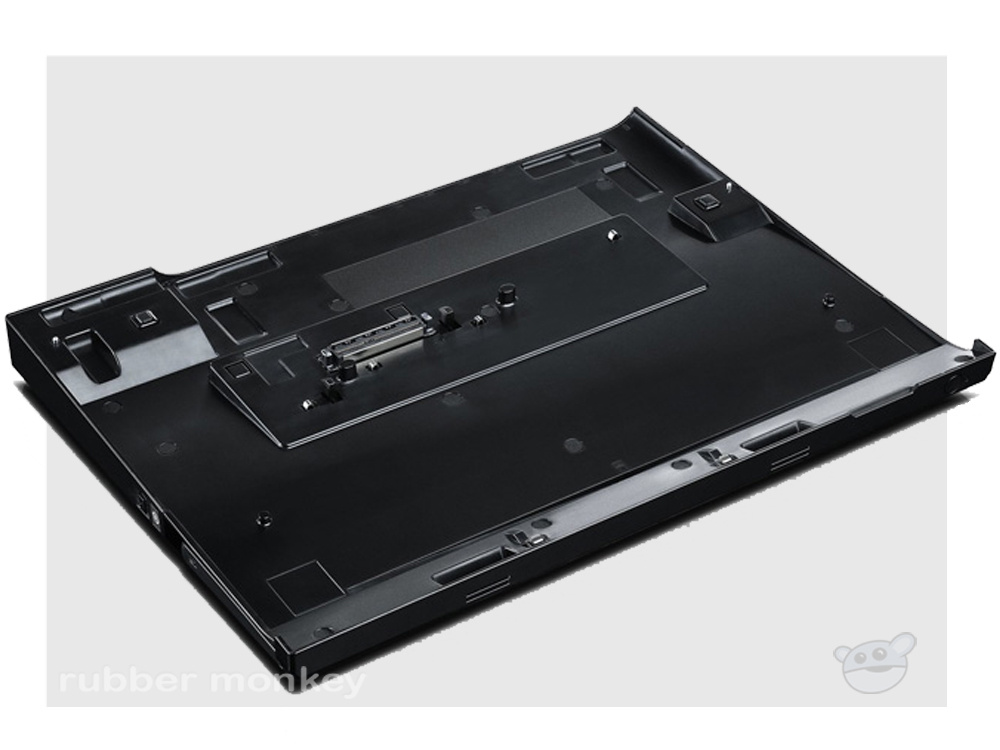

Expand the function of your ThinkPad X220 Series ultraportable or tablet with the sleek and portable ThinkPad UltraBase Series 3. This simple, quick attach docking solution adds a wide array of expansion capabilities, including an optical drive bay, but it is small enough to carry anywhere.
Features & Benefits:
- Thinner and lighter design for easy portability – Ideal for use in the office, at home or on the road
- Ultrabay Slim device bay for optical drive or second hard drive – For a list of compatible options, see www.lenovo.com/support/docks
- Digital and analog video support – VGA monitor port and Display Port – For more information on supported monitor configurations, see www.lenovo.com/support/docks
- Audio capability – Pass through speakers, microphone in, headphone out
- Gigabit Ethernet (RJ-45)
- Four USB 2.0 ports
- System power on button and easy ejection lever
- Integrated key lock and optional cable lock slot for security
- Power pass through to fuel your system and recharge the battery – Uses the ThinkPad 65W adapter or ThinkPad 90W adapter, which ship with notebooks and are also available for sale separately
- 3 year warranty
Technical Specifications
General
- Part number: 0A33932
- Description: ThinkPad UltraBase Series 3
Limited warranty[7]
- Limited warranty period: Three year
Weight & dimensions
- Depth: 230.9 mm
- Height: 32 mm
- Width: 304 mm
Technical Information
- Remote Control: No
- Supported Software Applications: ThinkPad X220, X220t, X220 Tablet
Environmental Information
- Maximum Operating YYYY: 80 %
- Maximum Operating Temperature: 55 C
- Minimum Operating HumidityXXX: 8 %
- Minimum Operating Temperature: -10 C
Architecture
- Depth Metric: 230.9 mm
- Height Metric: 32 mm
- Height US: 1.26 in
- Weight Metric[2]: 0.63 Kg
- Weight US[2]: 1.39 lbs
- Width Metric: 304 mm
- Width US: 11.97 in
