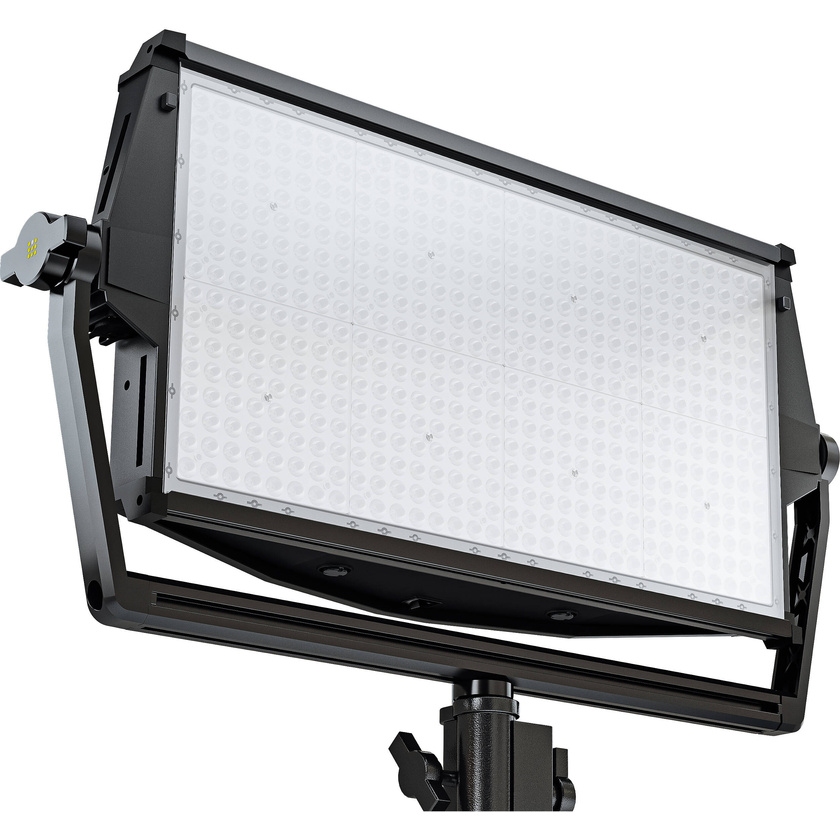

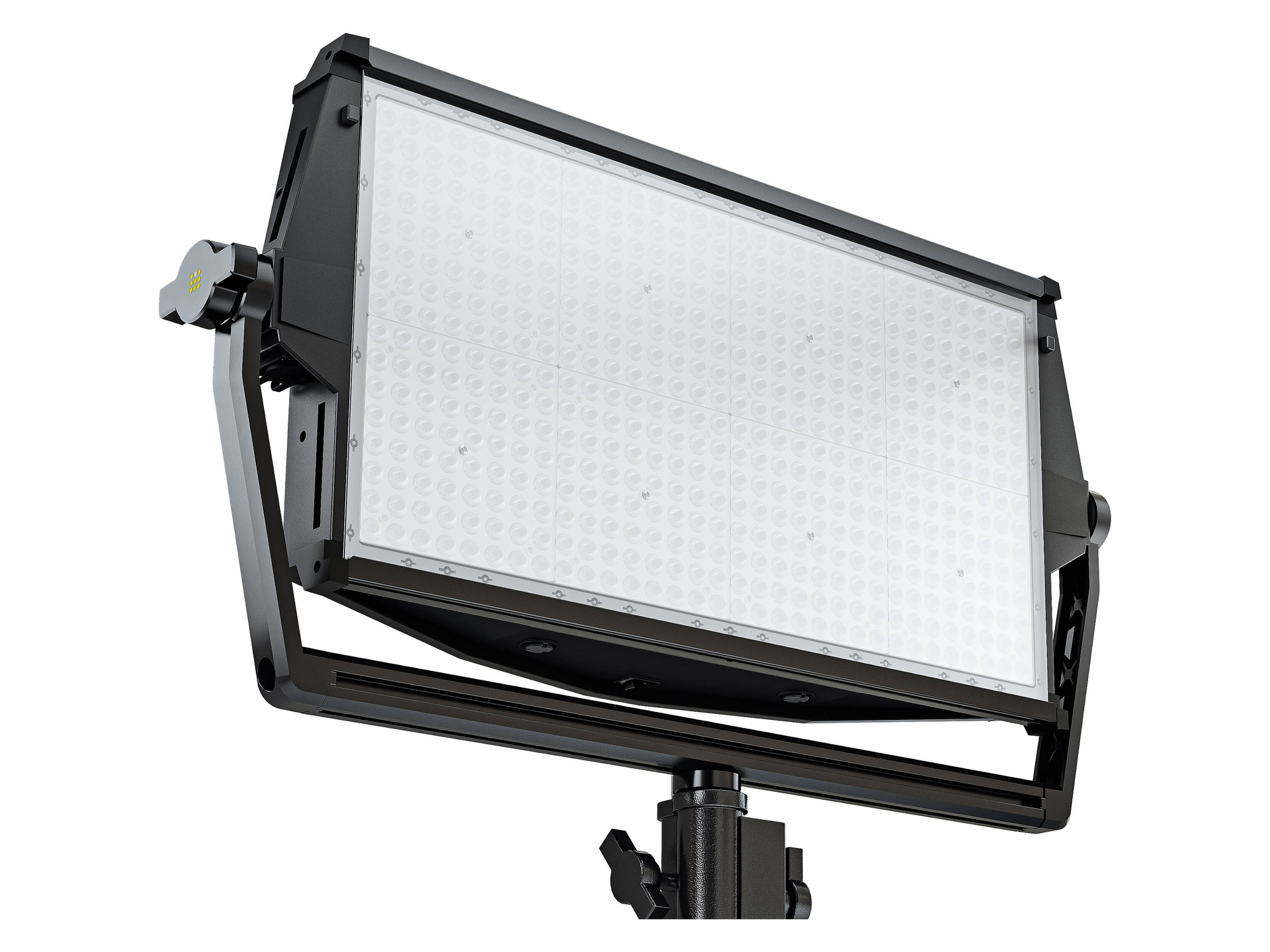

The Litepanels Astra IP 2x1 Bi-Colour LED Light Panel is designed to be versatile enough for both studio and street use. This portable and durable light is built to provide maximum output in any shooting environment. Despite weighing less than 20 lb, including the yoke and power supply, this light is capable of delivering powerful results in a 27 x 16.8 x 4.3" frame. With an adjustable color temperature ranging from 2700 to 6500K, the light ensures accurate and flattering colors with a high rating of 95 for both CRI and TLCI. Controlling the panel is made easy with integrated Bluetooth, an optional DMX module for more complex setups, and a convenient dual-dial system with a clear LCD screen for on-the-spot adjustments.
Specifications
Key Specs
Item Type
1x LED Light Panel
Included Light Modifier
1x Diffuser
Included Storage Case
No
Photometrics
30° at 3200K: 4347 fc / 46,800 Lux at 3.3' / 1 m (Unmodified) 483 fc / 5200 Lux at 9.8' / 3 m (Unmodified) 30° at 5600K: 4598 fc / 49,500 Lux at 3.3' / 1 m (Unmodified) 510 fc / 5500 Lux at 9.8' / 3 m (Unmodified)
Colour Temperature
2700 to 6500K (in CCT Mode)
Colour Modes
Daylight, Tungsten
Colour Accuracy Standard
CRI 95 TLCI 95
Dimming
Built-In Dimmer (Continuous) • 0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Bluetooth Wireless DMX *Adapter Required (Not Included)
Power Source
AC to DC Adapter (Included) Battery (Not Included) *Requires Power Supply/Controller (Not Included)
Battery Plate Type
1x Gold Mount (Included) 1x V-Mount (Included) 1x Sony BP-U Series (Included)
Input Power
100 to 240 VAC, 50 / 60 Hz 12 to 30 VDC
Power Consumption
250 W
Light Fixture
Item Type
1x LED Light Panel
Included Light Modifier
1x Diffuser
Included Storage Case
No
Photometrics
30° at 3200K: 4347 fc / 46,800 Lux at 3.3' / 1 m (Unmodified) 483 fc / 5200 Lux at 9.8' / 3 m (Unmodified) 30° at 5600K: 4598 fc / 49,500 Lux at 3.3' / 1 m (Unmodified) 510 fc / 5500 Lux at 9.8' / 3 m (Unmodified)
Colour Temperature
2700 to 6500K (in CCT Mode)
Colour Modes
Daylight, Tungsten
Colour Accuracy Standard
CRI 95 TLCI 95
Dimming
Built-In Dimmer (Continuous) • 0 to 100%
Cooling System
Fan
Expected Lamp Life
50,000 Hours
Beam Angle
30°
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth Wireless DMX *Adapter Required (Not Included)
Mobile App Compatible
Yes: Android & iOS
Wireless Channels
No
Wireless Groups
No
Power & I/O
Power Source
AC to DC Adapter (Included) Battery (Not Included) *Requires Power Supply/Controller (Not Included)
Inputs/Outputs
1x powerCON TRUE1 AC Power Input
Battery Plate Type
1x Gold Mount (Included) 1x V-Mount (Included) 1x Sony BP-U Series (Included)
Input Power
100 to 240 VAC, 50 / 60 Hz 12 to 30 VDC
Included Adapter / Cable
1x USA Type-A/B to powerCON TRUE1 AC to DC Adapter
Power Pass-Thru
Yes
Power Consumption
250 W
Mounting
Yoke Type
Manually-Operated Yoke
Environmental
Environmental Protection
Dust/Weather/Water-Resistant (IP65)
Operating Temperature
-4 to 113°F / -20 to 45°C
General
Display
LCD
Certifications
COE
Materials
Aluminium
Dimensions
27 x 16.8 x 4.8" / 68.7 x 42.6 x 12.3 cm (Fixture with Yoke) 24.9 x 16.8 x 4.8" / 63.2 x 42.6 x 12.3 cm (Fixture without Yoke)
Weight
17.2 lb / 7.8 kg (Fixture with Cable/Yoke)
In The Box
Litepanels Astra IP 2x1 Bi-Colour LED Light Panel
Standard Yoke
US Power Cable
Medium Diffuser
