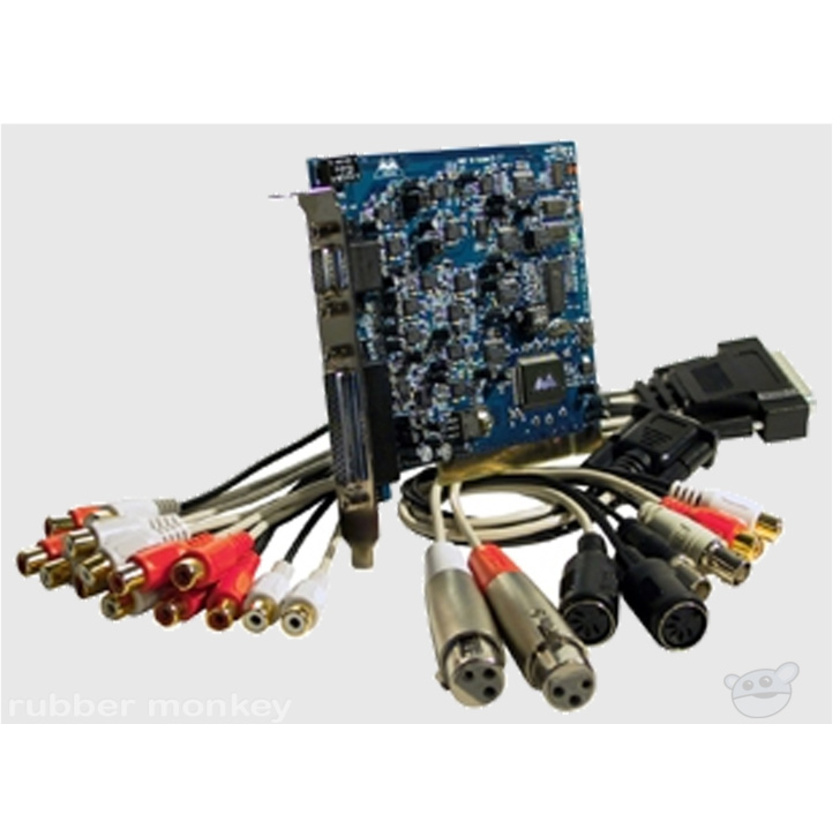

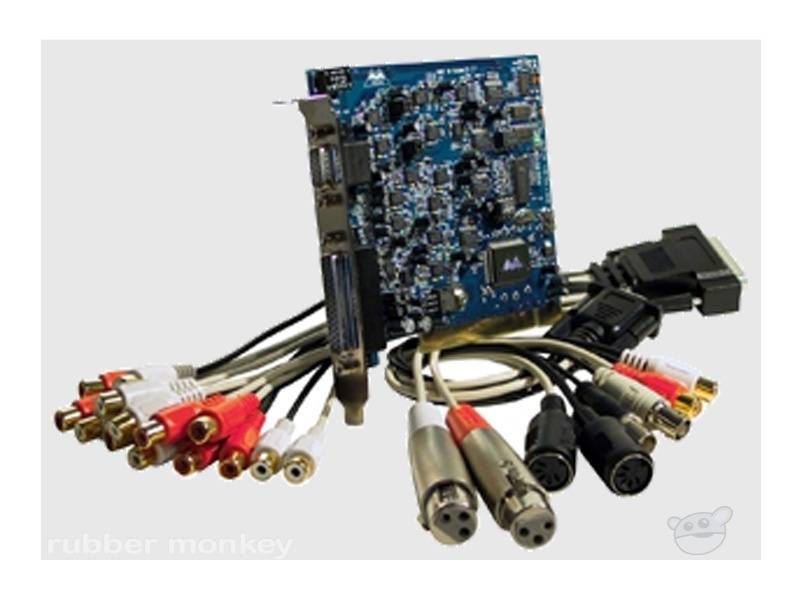

The Delta 1010LT delivers much of the same universal connectivity, high fidelity and seamless performance as the popular Delta 1010 on a single PCI card—and at a fraction of the price. Multiple analog I/O, MIDI, S/PDIF and surround sound support are all here. Two inputs even have mic/line preamps on XLR connectors, saving the expense of outboard preamps. It’s all on a compact, half-size PCI card with two color-coded breakout cables. Combine up to four Deltas* in your system for a maximum of 32 analog and four stereo S/PDIF inputs and outputs.
Key Features:
- 8 x 8 analog I/O
- 2 mic preamps or line inputs
- S/PDIF digital I/O (coaxial) with 2-channel PCM
- SCMS copy protection control
- digital I/O supports surround-encoded AC-3 and DTS pass-through
- 1 x 1 MIDI I/O
- directly drive up to 7.1 surround (bass management software included)
- software controlled 36-bit internal DSP digital mixing/routing
- +4dbu/-10dBV operation individually switched in software
- word clock I/O for sample accurate device synchronization
- Apple G5 compatible - Incompatible exceptions
- includes Ableton Live Lite music production software, so you can make music right away
Compatibility:
- ASIO 2
- MME
- Sound Manager
- OMS
- DirectX
- GSIF 2
- Mac OS X Core Audio / Core MIDI
System Requirements:
Mac:
- Windows 98SE / Me / 2000 (SP4) / XP (SP2)* / Vista SP2 (32Bit , 64 Bit) / Win7 (32Bit , 64 Bit)
- For 96kHz operation: Pentium III 500MHz w/ 128MB RAM
- For 48kHz operation: Pentium II 400MHz w/ 64MB RAM
* Home and Professional Edition only. Windows Media Center Edition is not supported.
** M-Audio suggests you also check the minimum system requirements for your software, as they may be greater than the above.
PC:
- G3/G4* 500MHz
- G5 w/PCI-X expansion slots** - Incompatible exceptions
- OS 9.2.2, w/ 128MB RAM
- OS X 10.1.5, 10.2.6, 10.3.6, 10.4, 10.5.1 w/ 256MB RAM***
- OMS 2.3.8 for MIDI under OS 9.2.2
* G3/G4 accelerator cards not supported
** Intel based Mac Pro & DualCore G5 with PCI-Express expansion slots not supported.
*** M-Audio suggests you also check the minimum system requirements for your software, as they may be greater than the above.
