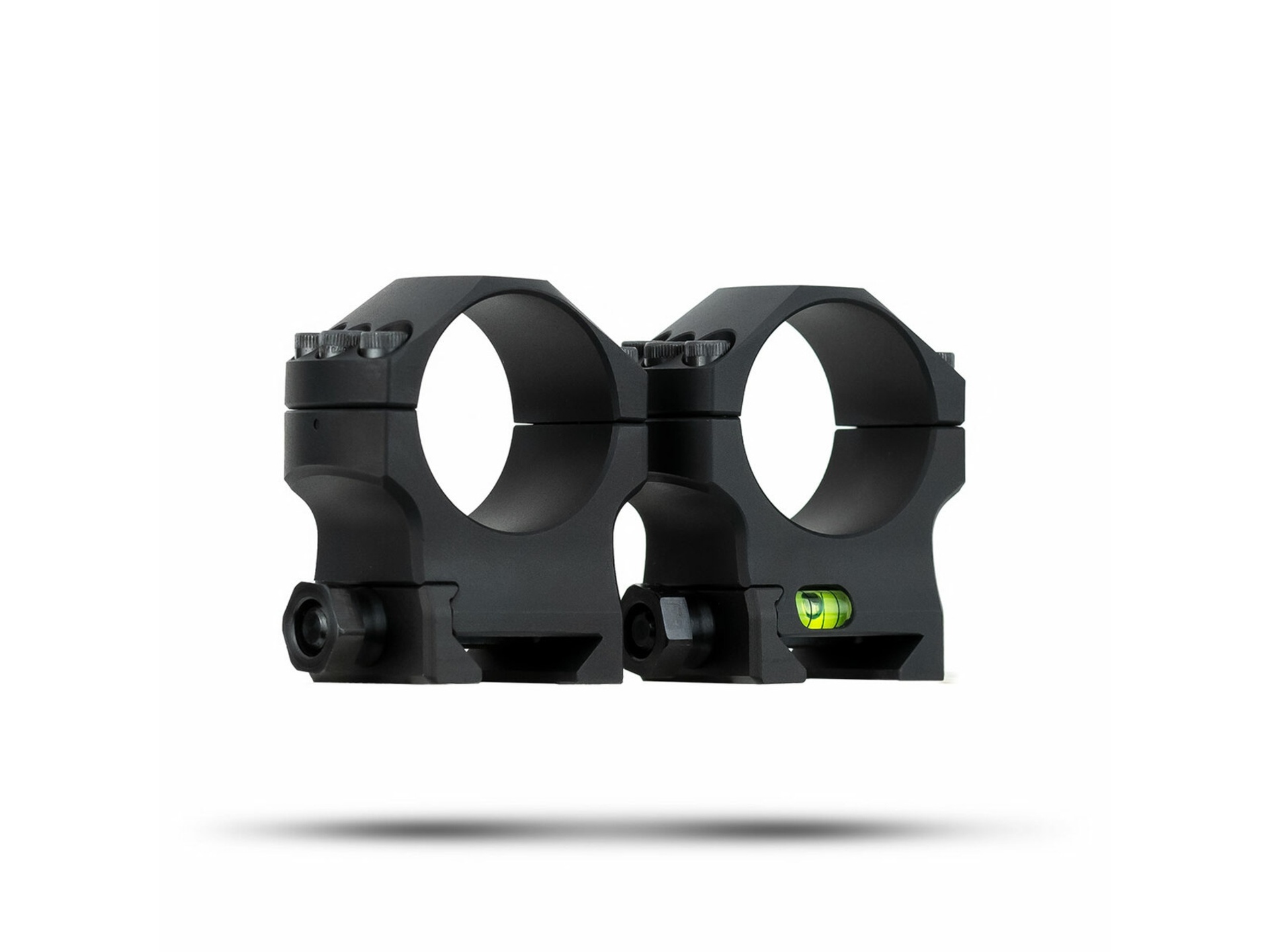

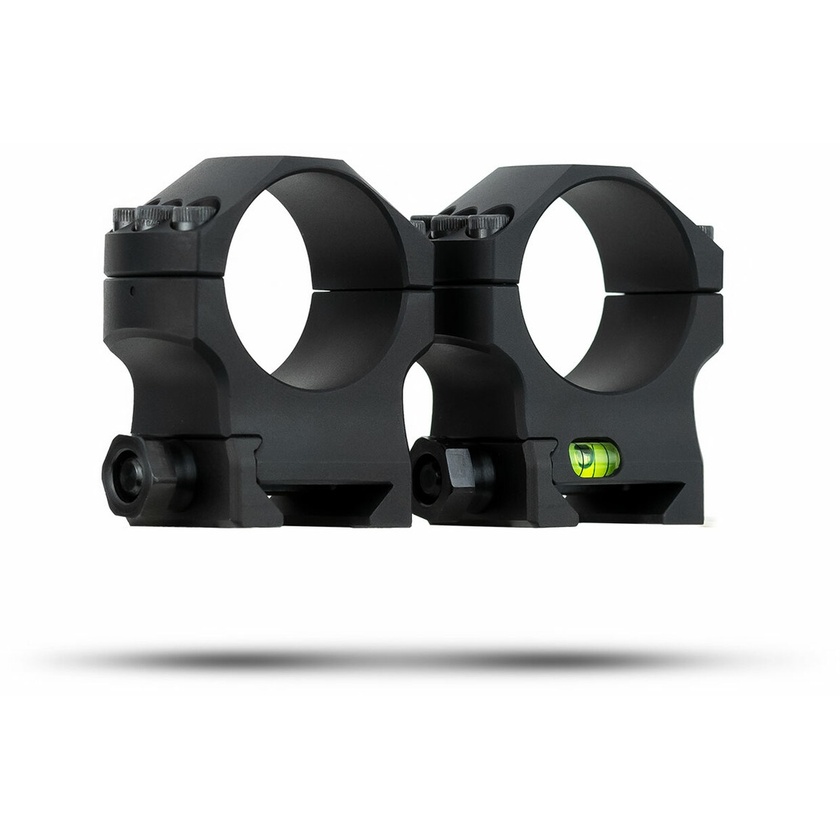

MDT Elite Scope Rings (2 x 30mm, High)

Product #91102 | SKU 102714-BLK | MDT
In stock Ships tomorrow
SAVE $130
Sale Price $389.00
was $519.00
In stock Ships tomorrow
- +
ON SALE in Mid Winter Sale until 31 Jul 11pm or while stock lasts

Shipping & Availability
Ships tomorrow. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect


  • Diameter: 30mm
  • Height: High (1.25")
  • 25mm of lateral contact with scope tube
  • 30mm of lateral contact with mounting rail
  • Built-in bubble level


The MDT Elite Scope Rings offer a solid, lightweight mounting system for your optics. Made from precision-machined aluminium, they are available in 30mm, 34mm and 35mm diameters. The two diameter options are available in four different heights (measured from top of rail to centre of bore).

MDT Precision Scope Rings are designed and manufactured to STANAG 4694 specification, also known as NATO spec. This means the scope ring sits tight to the top of the scope base rail, with pressure being applied to the underside of the angled rail surfaces to maintain a solid interface. This design also allows mounting on out-of-spec rails. By contrast, US MIL-STD-1913 spec mounts attach only to the angles sides of the rail, leaving a small gap between the top of the rail and the underside of the mount, and significantly reducing the amount of contact area between the mount and rail. Testing performed by NATO has shown that the STANAG attachment method increases the robustness of the interface, leading to increased alignment repeatability. MDT Elite Precision Scope rings can be mounted to scope base rails designed to both the STANAG and MIL-STD specifications.

Key Features:

  • Designed for ultimate precision and strength
  • 25mm of lateral contact with scope tube
  • 30mm of lateral contact with mounting rail
  • The main body is machined on an automated seven-axis, high-end CNC machine tool
  • Extra wide profile provides extremely stable mounting
  • The bottom rail interface is machined at the same time as the scope clamp interface, guaranteeing all rings are square and parallel
  • CMM checked to 1.5 millionths of an inch precision
  • Machined from Billet 7075-T651 Aluminium – 1/3 the weight of steel with similar strength
  • Extra thick clamp system will never bend, fatigue, or become loose with use
  • Built-in bubble level on medium, high, and extra-high rings (No bubble level on low rings)
  • Stepped base-to-cap interface allows the fasteners on one side to be tightened before making final scope alignment adjustments
  • Six oversized #8-32 Grade 8 fasteners used for clamping the scope
  • Sleek curves blend well into most scopes

In The Box

  • MDT Elite Scope Rings (2 x 30mm, High)


0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review


  • Product: MDT Elite Scope Rings (2 x 30mm, High)
  • Manufacturer: MDT
  • Model: 102714-BLK
  • SKU: 102714-BLK
  • RM Product #: 91102
