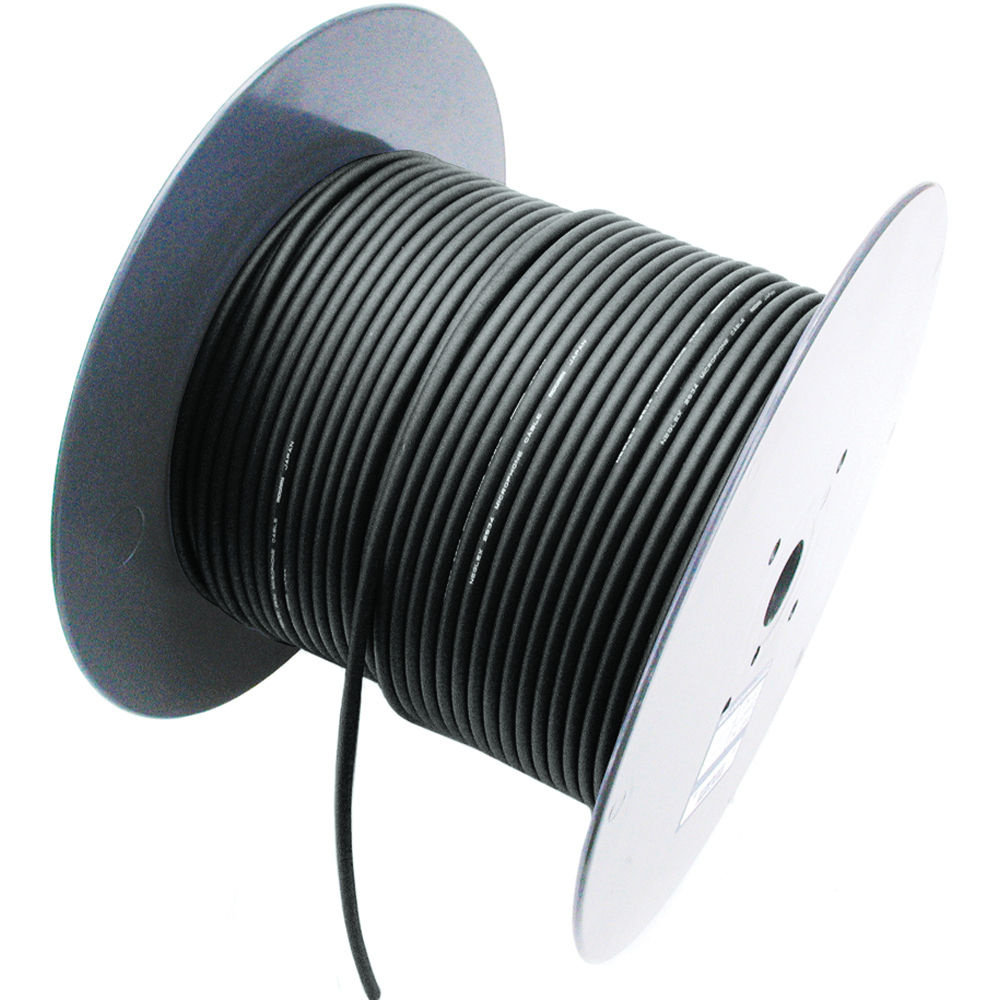

The Mogami W2552 Microphone Cable (Black, 328'/100 m) is a high performance low impedance balanced microphone cable. It is small in size and has a special rubber-like PVC jacket, which makes it very flexible and exhibits excellent resistance to rough handling and abrasion.
Specifications
| Conductor |
Quantity: 2 Type: 12/0.12 A (T250D3) Size: 0.135 mm² (26 AWG) |
| Outer Diameter |
197" (5 mm) |
| Flex Life |
11,000 cycles |
| Tensile Strength |
421 N |
| Insulation |
Diameter: 0.06" (1.5 mm) Material: LNXLPE (low noise cross-linked polyethylene) Resistance: 100,000 MW × m minimum at 125 VDC, 68°F (20°C) |
| Shield |
Served Shield: Approximately 67/0.12 A |
| Jacket |
Diameter: 0.2" (5 mm) Material: Flexible PVC |
| DC Resistance |
Inner Conductor: 0.043 W/ft (0.14 W/m) Shield: 0.003 W/m(0.009 W/ft) |
| Capacitance |
At 1 KHz, 68°F (20°C) K 0 : 27 pF/ft (90 pF/m) K 1 : 3 pF/ft (10 pF/m) Quad-connection |
| Inductance |
0.24 µH/ft (0.8 µH/m) (between conductors at 1 kHz 20°C) |
| Noise |
Electrostatic Noise: 50 mV (maximum) Electromagnetic Noise: 0.15 mV (maximum) |
| Microphonics |
Up to 30 mV (at 50 kW load) |
| Emigration |
Non-emigrant to ABS |
| Temperature |
-4 to 158°F (-20 to 70°C) |
| Roll |
Length: 328' (100 m) Weight: 8.27 lb (3.75 kg) |
