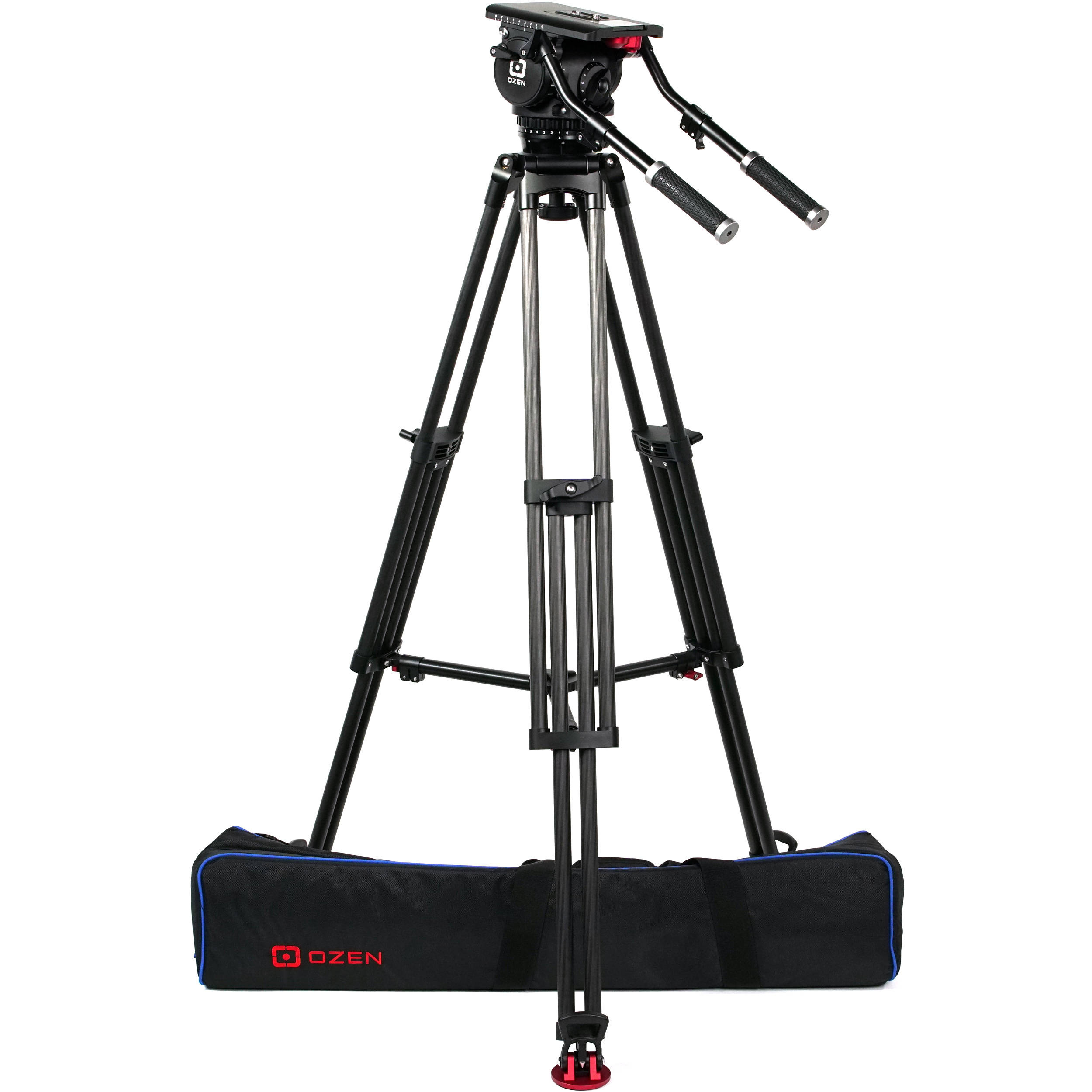

The OZEN 100CF1HD 100mm Carbon Fibre Tripod & Agile 20 Fluid Head System works with 4 to 28kg payloads. It offers 16-step counterbalance, 9/9 + 0 pan/tilt fluid drag, and working heights ranging from 72.9 - 150cm. The 100CF1HD comes equipped with a Contender heavy-duty mid-level spreader, as well as with deep-tread rubber feet for better traction on smooth surfaces. Included with the system is a SoftCase 100HD1, which has a carry strap and an internal pouch for storing the included telescopic pan bars.
OZEN 20CF1HD 100mm AGILE 20 E-Z-Load Heavy-Duty Carbon Fiber Tripod System
This product is no longer available
Features
- 100mm Heavy-Duty Carbon Fibre Tripod
- Agile 20 Fluid Head
- Counterbalanced Payload: 4 to 28kg
- 16-Step Counterbalance
- 9/9 + 0 Pan/Tilt Fluid Drag
Description
Specifications
| General | |
| Head Mount Type | 100 mm Bowl |
| Load Capacity | 45 kg |
| Maximum Working Height | 150cm (with Spreader) |
| Minimum Working Height | 72.90 cm (with Spreader) |
| Materials | Carbon Fibre |
| Weight | 4 kg |
| Legs | |
| Leg Lock Type | Twist Lock |
| Leg Sections | 2 |
| Feet Features | Rubber |
| Spreader | Mid-Level |
| Tripod Platform | |
| Base Mount | 100 mm Half Ball |
| Pan & Tilt | |
| Drag Control | Pan: Variable 9-Step Plus 0 Tilt: Variable 9-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -80° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Physical | |
| Material | Aluminium, Stainless Steel |
| Load Capacity | 4 to 28 kg |
| Counter Balance | Incremental 16-Step |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -40 to 60°C |
| Dimensions | 208 x 190 mm |
| Weight | 6 kg |
| Physical | |
| Carrying/Transport Options | Shoulder Strap |
In The Box
- OZEN 100CF1HD 100mm Single-Stage Heavy-Duty Carbon Fibre Tripod
- OZEN Agile 20 Fluid Head
- OZEN Soft Case for Single-Stage Heavy-Duty 100mm Systems for 100HD1 Tripod
Reviews
(no ratings yet)Details
- Product: OZEN 20CF1HD 100mm AGILE 20 E-Z-Load Heavy-Duty Carbon Fiber Tripod System
- Manufacturer: OZEN Tripods
- Model: System 20CF1HD
- SKU: OZ-20CF1HD
- RM Product #: 97794
- Maximum Height: 72.9 cm
- Minimum Height: 150.0 cm
- Load Capacity: 45.0 kg
- Weight: 4.00 kg
- Material: Aluminium
- Base Type: 100mm Half Ball
