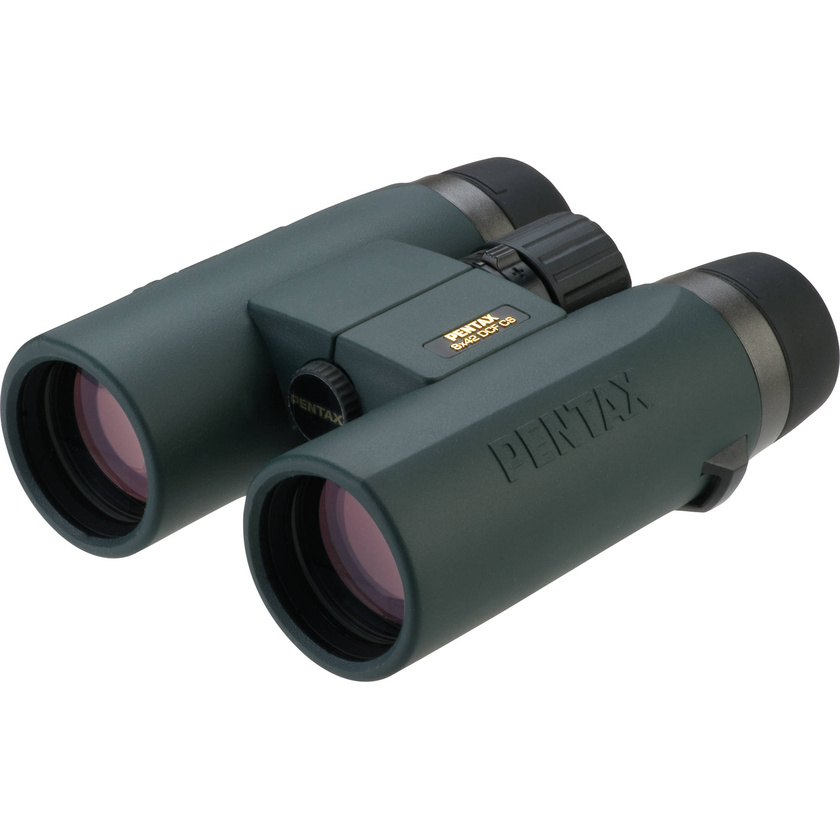

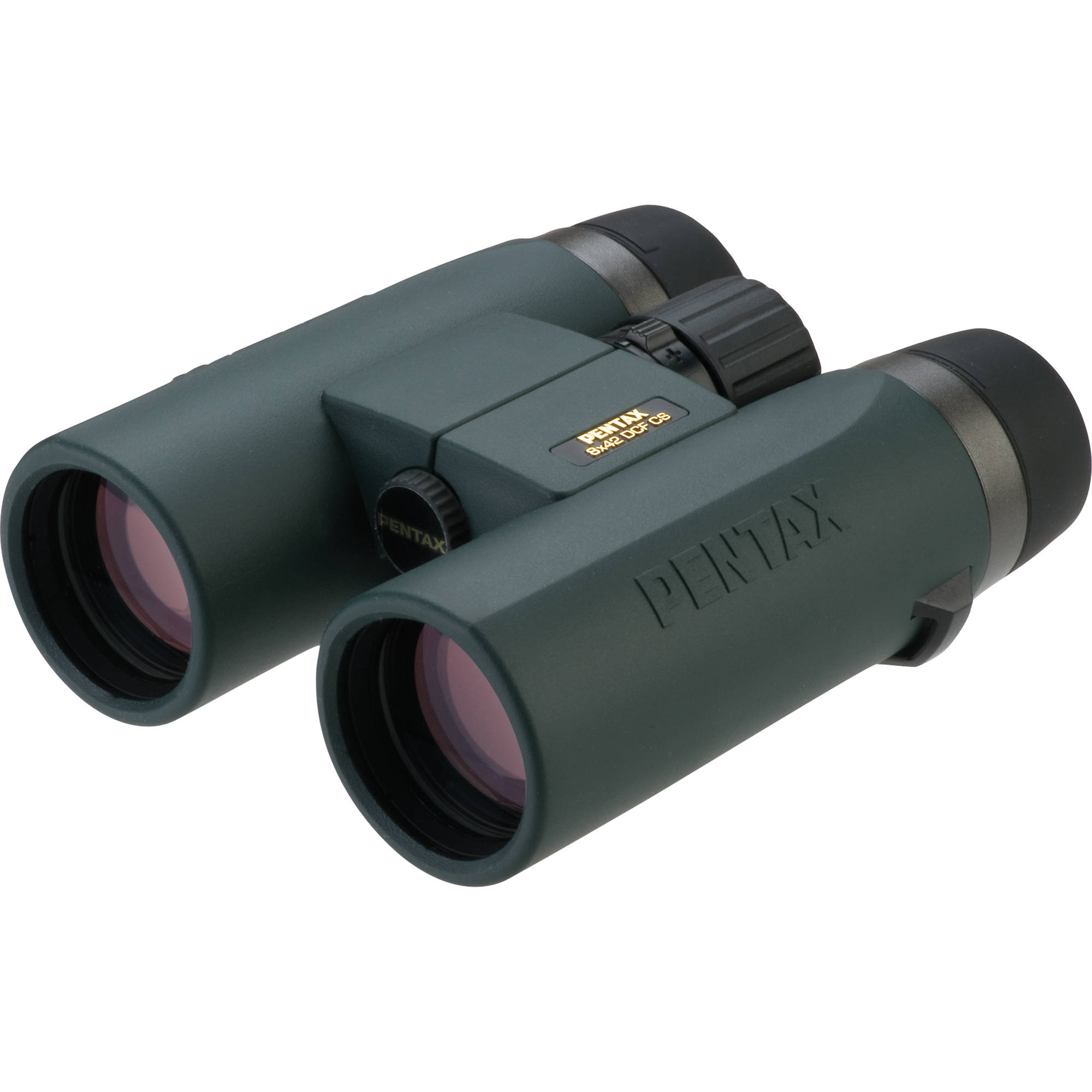

PENTAX offers two roof prism binoculars for everyday use - be it moderate or extreme weather conditions. The lightweight PENTAX DCF CS series is available in 8x42 and 10x42 models that offer tough, water resistant, fiber reinforced polycarbonate bodies, a durable internal focus design and a rubber covered exterior. Each model features PENTAX's renowned fully-multi-coated lenses and phase coated prisms. Compact for maximum comfort (5.6" and 5.8") these binoculars are ideal for field use.
- Waterproof and nitrogen-filled (JIS Class 6) to handle the most extreme weather conditions (submersible to 1m).
- Silver-deposited roof prisms reflect more light through the prism for a brighter image.
- Inner-focus optical design allows improved sealing and improves balance.
- Full rubber housing protects the binoculars from shock and makes them easier to hold.
- Long eye relief for comfortable viewing with or without glasses.
- Compact size 5.6" and 5.8" for maximum comfort in field use.
- Available in 8x42 and 10x42 magnifications.
- Phase coated roof prisms provide high resolution, high contrast images.
- Fully-multi-coated optics provide the maximum light transmission and reduced internal reflections.
- Fiber-reinforced polycarbonate for strength and rigidity.
- Center diopter ring with click stops is easy to access and holds the adjustment firmly.
- Helicoid eyepieces with four click stops allow you to properly set the eye relief.
Specifications
- Product Type: Roof-prism, Center Focusing (internal focus)
- Objective Lens: 4 elements in 3 groups
- Focusing Range: 2.5m to infinity (8.2' to infinity)
- Eyepiece: 4 elements in 3 groups
- Lens: Full-Multi-Coating
- Prism: Phase Coating
- Sub Prism: Silver-Deposition
- Objective Lens Diameter: 42mm
- Specifications: 8X
- Apparent Field Of View: 60 degrees
- Real Field Of View: 7.5 degrees
- Field Of View At 1000m: 131m (393 ft)
- Exit Pupil: 5.2mm
- Eye Relief: 21mm
- Relative Brightness: 27.6
- Diopter Adjustment Range: +/- 3
- Eye Width Adjustment Range: 54-76mm (21. – 3.0”)
- Eyepiece Ring: Helicoid (4 stops)
- Body Color: Dark Green and Black
- Height, Width: 148 x 134mm (5.8 x 5.3”)
- Thickness: 52mm (2.0”)
- Weight: 640g (22.6 oz.)
- Waterproof: Yes (JIS Class 6, submersible to 1m, nitrogen-filled)
