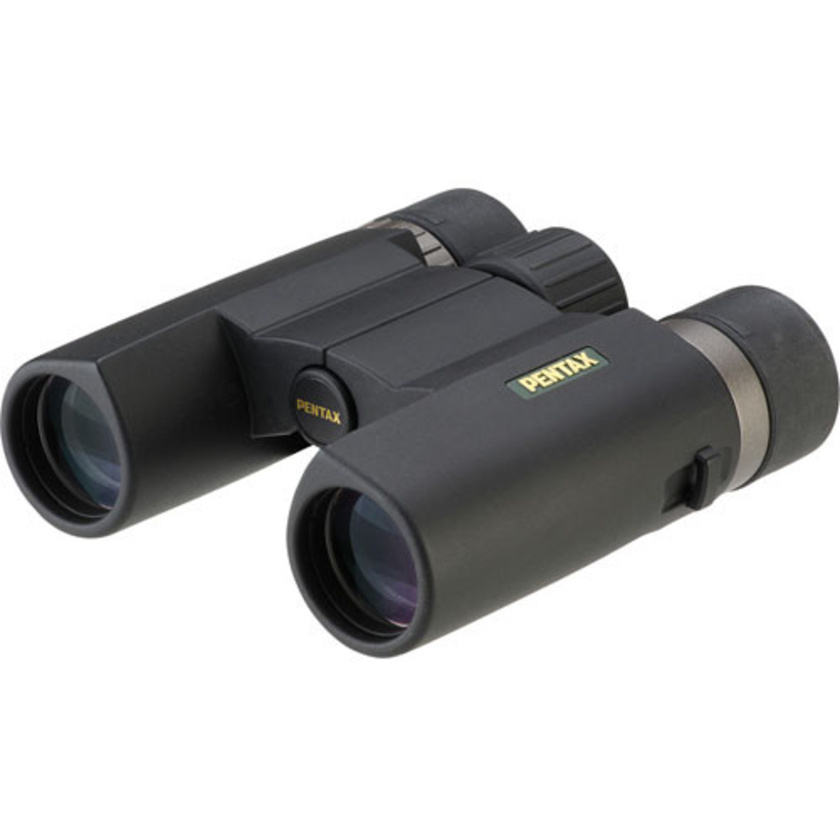

Available in 9X28 magnification, the PENTAX DCF LV binoculars feature a durable, lightweight, compact body. With high-resolution phase-coated and super-reflective coated roof prisms for high contrast images, the nitrogen-filled waterproof (JIS Class 6) construction allow these binoculars to be used in the most extreme weather conditions and submerged to 3.3 feet. The inner-focus optical design adds durability and the helicoid eyepiece rings offer comfortable eye relief. Fully multi-coated lenses increase light transmission and color quality while rubber covered exterior provides a sure grip and protects the internal mechanisms. All PENTAX binoculars offer a Worry Free Warranty.
Features
- Extremely durable, lightweight, compact body makes these binoculars ideal for difficult conditions.
- Nitrogen-filled waterproof (JIS Class 6) construction allow these binoculars to be used in the most extreme weather conditions and be submerged to 1 meter.
- Helicoid eyepiece rings give the most comfortable eye relief.
- Rubber covered exterior provides a sure grip and protects the internal mechanisms.
- Available in 9x28 magnification.
- High-resolution phase-coated and super-reflective coated roof prisms provide high resolution, high contrast images.
- Inner-focus optical design adds to the durability.
- Fully multi-coated lenses increase light transmission and color quality.
Specifications
- Objective Lens: 3 elements in 2 groups
- Focusing Range: Approx. 9.9 ft. – infinity
- Lens: 5 elements in 4 groups
- Prism: Roof
- Objective Lens Diameter: 28mm
- Magnification: 9X
- Apparent Field Of View: 50 degrees
- Real Field Of View: 5.6 degrees
- Field Of View At 1000m: 98m
- Coating: Lens- Fully multi-coating
Prism- Phase coating
Sub-prism- Super-refraction coating
- Binocular Type: Roof prism, center focusing (internal focus)Lens Construction
- Field Of View At 1000y: 294’
- Exit Pupil: 3.1mm
- Eye Relief: 18mm
- Multi Layer Coating: Yes
- Relative Brightness: 9.6
- Diopter Adjustment Range: +/- 4
- Eye Width Adjustment Range: 2.3 – 2.9”
- Eyepiece Ring: Helicoid with 4 click stops
- Body Color: Black
- Height, Width: 4.6 x 4.5” (11.7 x 11.4 cm)
- Thickness: 1.8” (4.6cm)
- Weight: 12.9 oz. (0.37kg)
- Waterproof: 1m depth of water (JIS Class 6), Nitrogen filled
- Camera Accessories: Rain Shielding Eyepiece Cap (eyepiece lens cap), Case, Neck Strap
