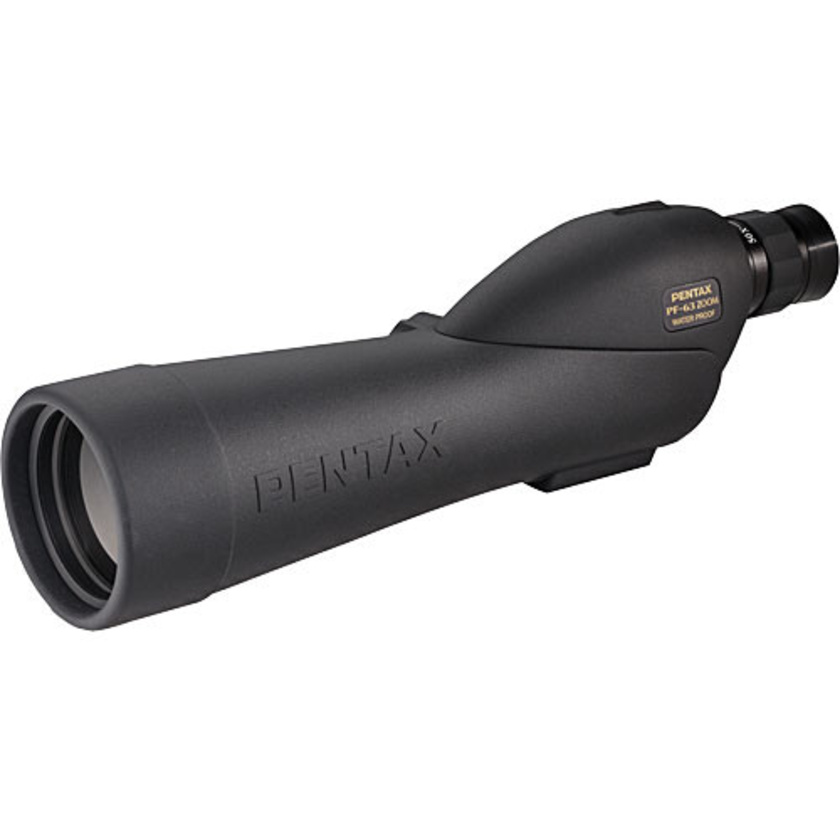

The PENTAX PF-63 Zoom spotting scope offers one of the most ergonomically comfortable designs on the market. The waterproof and nitrogen filled body features a side focus knob for easy adjustment and zooms from 20x-50x, while the full rubber coating makes the scope extremely tough, even in the most challenging viewing conditions.
Features
- A compact and lightweight body is realised through a 63mm compact objective lens, and an inner-focus type eyepiece that is integrated with the main body.
- Zoom function for easy change in magnification - The eyepiece has a magnification range of 20 to 50 times. The magnification can be changed quickly in response to changes in the subject.
- Straight type is convenient for observation while in motion and enables for easy subject spotting.
- A bright field of view is achieved by greatly improving the amount of transmitted and reflected light by using multi-layer optical coatings on the lens, and prisms that use the highly refractive BaK4 glass.
- A rubber coating has been applied to the body's exterior, making it easier to hold as well as offering some protection from shocks and impact.
- The PF-63 Zoom has a waterproof construction (JIS Class 6 equivalent, water resistant to a depth of 1 meter*). Observations can be conducted even in rain or fog due to the airtight structure of the integrated eyepiece.*The spotting scope cannot be used underwater.
- The PF-63 Zoom is equipped with a target line on the top part of the body, allowing for the subject to be rapidly spotted with a high line of sight.
- Focusing knob with a 180-degree rotation angle enables quick focusing.
Specifications
- Lens Type: Porro-prism, straight
- Body Design: Fibre reinforced polycarbonate
- Focusing: Inner focusing
- Optical Coating: Lens elements multi-coated porro-prism single-coated
- Prism: BaK-4
- Magnification: 20x - 50x
- Objective Lens Diameter: 63 mm
- Field of View: 1.6 - 0.9 degrees
- Apparent Field of View: 32 - 45 degrees
- Field of View at 1000m: 28-16m
- Exit Pupil: 3.2-1.3mm
- Eye Relief: 22-17mm
- Relative Brightness: 10.2 - 1.7
- Focusing Range: 12m to Infinity
- Eyepiece Ring: Collapsible
- Body Color: Black
- Waterproof: Nitrogen-filled, Waterproof to 1m depth to handle the most extreme weather conditions
- Dimensions: 328mm x 100mm x 98mm
- Weight: 840g
- Armour: Rubber Exterior, Black
- Tripod Mount: Fixed
- Accessories: Objective lens cap, eyepiece lens cap, case
