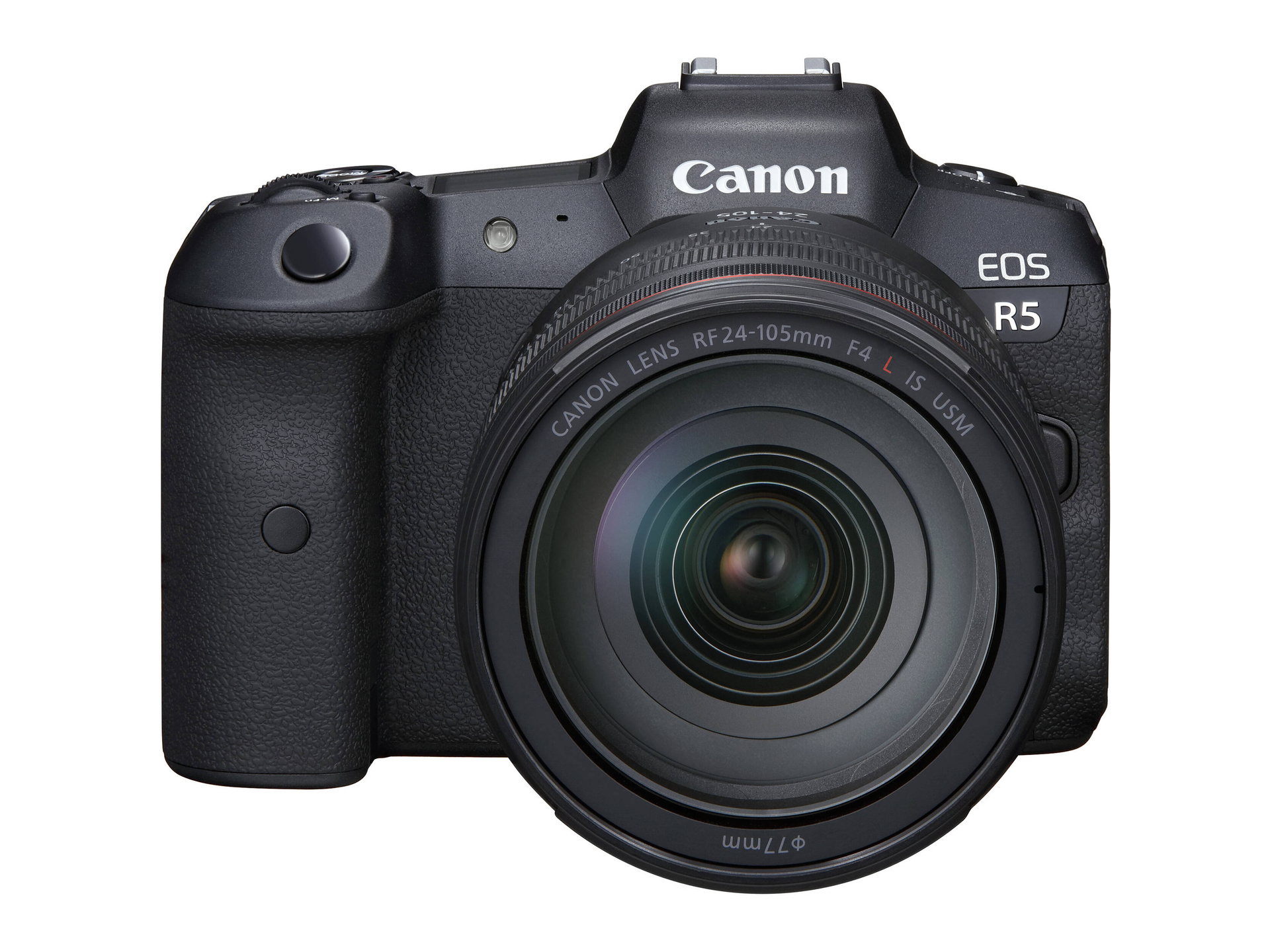

| Canon EOS R5 Mirrorless Camera |
|
| Key Specs |
|
| Lens Mount |
Canon RF |
| Sensor Resolution |
Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464) |
| Image Sensor |
36 x 24 mm (Full-Frame) CMOS |
| Image Stabilisation |
Sensor-Shift, 5-Axis |
| ISO Sensitivity Range |
100 to 51,200 (Extended: 50 to 102,400)
Video
100 to 25,600 (Extended: 51,200) |
| Continuous Shooting |
Mechanical Shutter
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Electronic Shutter
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG) |
| Internal Recording Modes |
H.265 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [170 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [170 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s]
H.264 4:2:0 8-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [120 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s]
Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [2600 Mb/s] |
| External Recording Modes |
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps |
| Media/Memory Card Slot |
Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
| Video I/O |
1x Micro-HDMI (Unspecified Signal) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Power I/O |
1x USB-C (5VDC at 1.5 A) Input |
| Other I/O |
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input)
1x Canon N3 Control Input |
| Wireless |
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control |
| Display Type |
Free-Angle Tilting Touchscreen LCD |
| Battery Type |
1x LP-E6NH Rechargeable Lithium-Ion |
| Imaging |
|
| Lens Mount |
Canon RF |
| Sensor Resolution |
Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464) |
| Image Sensor |
36 x 24 mm (Full-Frame) CMOS |
| Sensor Crop (35mm Equivalent) |
Crop Factor: 1x
Additional Modes: 1.6x
Additional Crop Occurs in Select Video Modes |
| Image Stabilisation |
Sensor-Shift, 5-Axis |
| Built-In ND Filter |
No |
| Capture Type |
Stills & Video |
| Exposure Control |
|
| Shutter Type |
Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| Shutter Speed |
Mechanical Shutter
1/8000 to 30 Seconds
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Electronic Shutter
1/8000 to 1/2 Second |
| Bulb/Time Mode |
Bulb Mode |
| ISO Sensitivity Range |
100 to 51,200 (Extended: 50 to 102,400)
Video
100 to 25,600 (Extended: 51,200) |
| Metering Method |
Centre-Weighted Average, Evaluative, Partial, Spot |
| Exposure Modes |
Aperture Priority, Manual, Programme, Shutter Priority |
| Exposure Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps) |
| Metering Range |
-3 to 20 EV |
| White Balance |
2000 to 10,000K
Presets: Auto, Cloudy, Colour Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Continuous Shooting |
Mechanical Shutter
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Electronic Shutter
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG) |
| Interval Recording |
Yes |
| Self-Timer |
2/10-Second Delay |
| Still Image Capture |
|
| Image Sizes |
3:2 JPEG / Raw
44.7 MP (8192 x 5464)
22.4 MP (5808 x 3872)
11.6 MP (4176 x 2784)
5.9 MP (2976 x 1984)
3.8 MP (2400 x 1600) |
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9 |
| Image File Format |
JPEG, Raw |
| Bit Depth |
14-Bit |
| Video Capture |
|
| Internal Recording Modes |
H.265 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [170 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [170 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s]
H.264 4:2:0 8-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [120 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s]
Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [2600 Mb/s] |
| External Recording Modes |
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps |
| Fast-/Slow-Motion Support |
Yes |
| Gamma Curve |
Canon Log, Canon Log 3 |
| Recording Limit |
Up to 30 Minutes |
| IP Streaming |
Yes |
| Built-In Microphone |
Stereo |
| Audio Recording |
AAC Audio
LPCM Audio |
| Interface |
|
| Media/Memory Card Slot |
Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
| Video I/O |
1x Micro-HDMI (Unspecified Signal) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Power I/O |
1x USB-C (5VDC at 1.5 A) Input |
| Other I/O |
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input)
1x Canon N3 Control Input |
| Wireless |
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Canon Camera Connect
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed |
| Global Positioning (GPS, GLONASS, etc.) |
GPS
Via Connected Smartphone |
| Monitor |
|
| Display Size |
3.2" |
| Resolution |
2,100,000 Dot |
| Display Type |
Free-Angle Tilting Touchscreen LCD |
| Secondary Display |
Top: Status Display |
| Viewfinder |
|
| Type |
Built-In Electronic (OLED) |
| Size |
0.5" |
| Resolution |
5,760,000 Dot |
| Eye Point |
23 mm |
| Coverage |
100% |
| Magnification |
Approx. 0.76x |
| Dioptre Adjustment |
-4 to +2 |
| Focus |
|
| Focus Type |
Auto and Manual Focus |
| Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points |
Phase Detection: 1053 |
| Autofocus Sensitivity |
-6 to +20 EV |
| Flash |
|
| Built-In Flash/Light |
No |
| Maximum Sync Speed |
1/250 Second |
| Flash Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps) |
| Dedicated Flash System |
eTTL |
| External Flash Connection |
PC Terminal |
| Environmental |
|
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
0 to 85% |
| General |
|
| Battery Type |
1x LP-E6NH Rechargeable Lithium-Ion |
| Shoe Mount |
1x Hot Shoe |
| Tripod Mounting Thread |
1x 1/4"-20 Female (Bottom) |
| Material of Construction |
Magnesium Alloy |
| Dimensions (W x H x D) |
5.43 x 3.84 x 3.46" / 138 x 97.5 x 88 mm |
| Weight |
1.62 lb / 738 g (With Battery, Recording Media) |
| Canon RF 24-105mm F/4 L IS USM Lens |
|
| Key Specs |
|
| Focal Length |
24 to 105mm |
| Maximum Aperture |
f/4 |
| Lens Mount |
Canon RF |
| Lens Format Coverage |
Full-Frame |
| Focus Type |
Autofocus |
| Image Stabilisation |
Yes |
| Filter Size |
77 mm (Front) |
| Maximum Aperture |
f/4 |
| Minimum Aperture |
f/22 |
| Lens Mount |
Canon RF |
| Lens Format Coverage |
Full-Frame |
| Angle of View |
84° to 23° 20' |
| Minimum Focus Distance |
1.48' / 45 cm |
| Maximum Magnification |
0.24x |
| Optical Design |
18 Elements in 14 Groups |
| Diaphragm Blades |
9, Rounded |
| Focus Type |
Autofocus |
| Image Stabilisation |
Yes |
| Filter Size |
77 mm (Front) |
| Dimensions (ø x L) |
3.29 x 4.22" / 83.5 x 107.3 mm |
| Length at Maximum Extension |
5.94" / 151 mm |
| Weight |
1.54 lb / 700 g |
