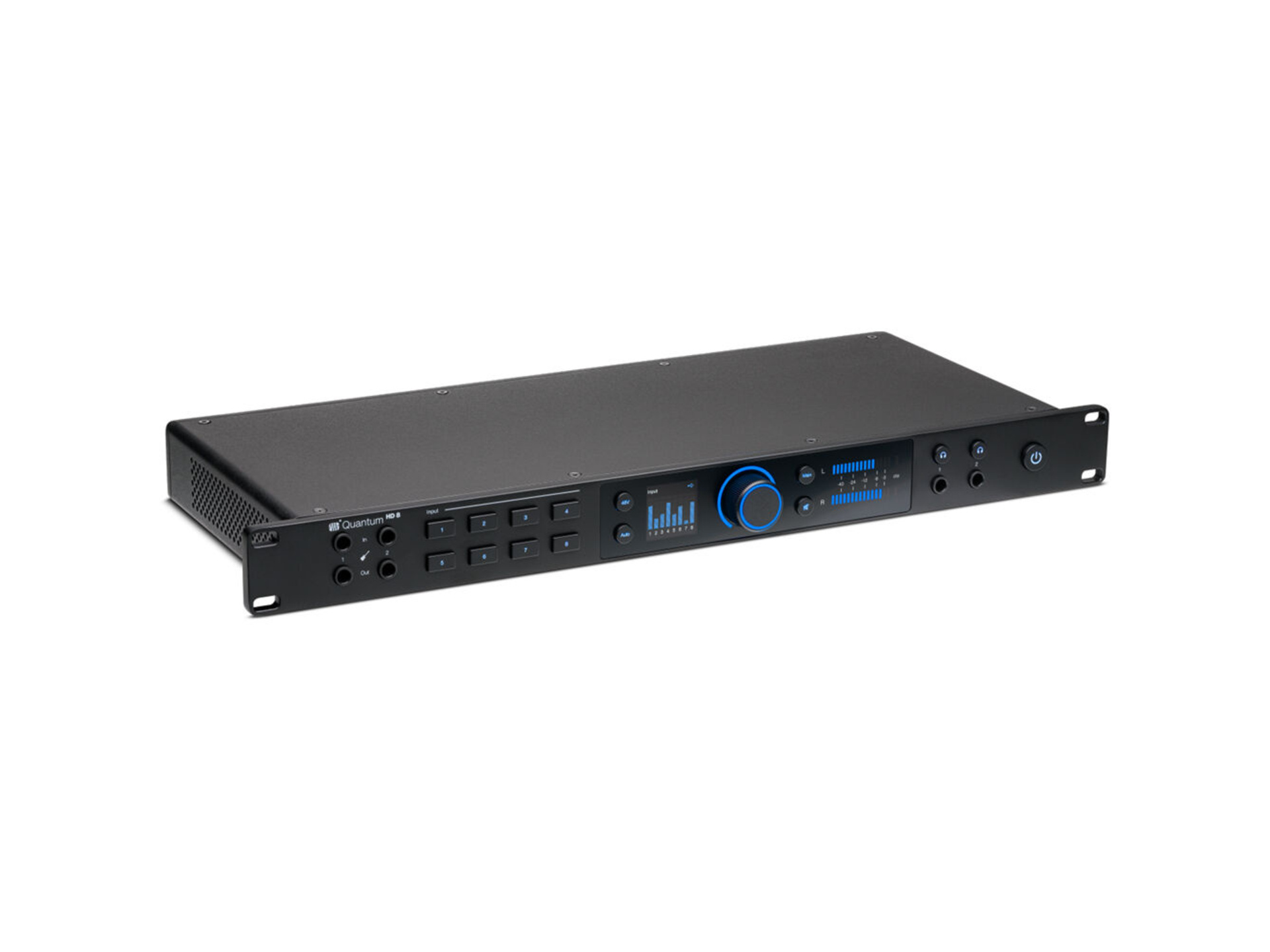

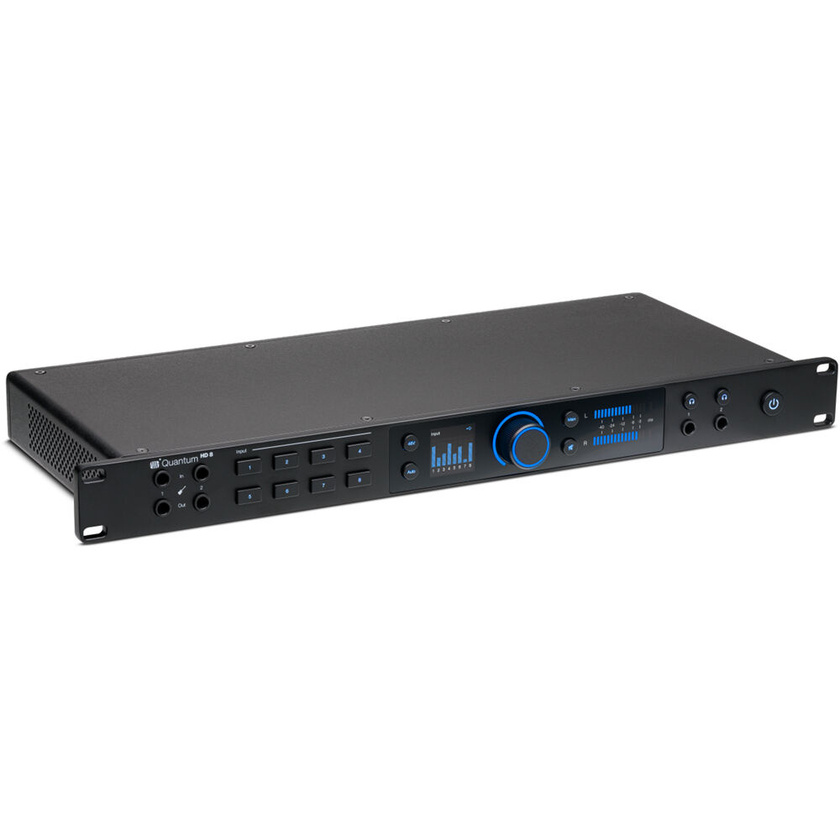

PreSonus Quantum HD 8 USB-C Audio Interface

Product #114574 | SKU QUANTUM HD8 | Presonus
Contact us for an ETA what does this mean?
Our Price $2,089
Contact us for an ETA what does this mean?
- +

Email me when stock arrives


Features

  • For Producers, Musicians, Creators
  • AC Powered, Mac/Windows/iOS/Android
  • 8 Mic / Line / Hi-Z Preamp
  • 2 Reamp Out, 10 Line Out, 2 Phone Out
  • 32-Bit / 192 kHz AD/DA Conversion
  • Auto Gain, Low Latency, 48V Phantom

Description

The PreSonus Quantum HD 8 USB-C Audio Interface combines 30 years of design experience to provide high-fidelity audio and flexible connectivity options for producers, musicians, and creators in the studio or onstage. With eight MAX-HD mic preamps offering +75 dB of gain, the HD 8 is perfect for popular microphones. The interface also includes front-facing instrument inputs developed in collaboration with Fender engineers. The 32-bit / 192 kHz convertors with a dynamic range of 124 dB ensure clear and detailed audio recordings. The Quantum HD 8 is compatible with Mac/Windows computers as well as iOS/Android devices for recording on the go.

The Auto Gain button simplifies the process of setting the optimal gain level for microphones and instruments. Two reamp outputs allow for experimentation with amps and effects to customize your sound. The built-in DSP monitor mixer and loopback audio make it easy to create monitor and streaming mixes. Utilizing the ADAT I/Os, you can record and playback up to 16 additional channels of audio by connecting an external A/D converter. The Universal Control app enables recording directly to a mobile device and remote control of the Quantum HD 8. This interface comes with professional recording software to start your productions immediately.

Specifications

Key Specs
Channels of I/O 26 Inputs / 30 Outputs
Channels of I/O Analogue:
8 Input / 12 Output
ADAT:
16 Input / 16 Output at 48 kHz
S/PDIF:
2 Input / 2 Output at Up to 192 kHz
Maximum Sampling Rate 192 kHz / 32-Bit
Number of Microphone Inputs 8
Analogue Audio I/O 8x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
10x 1/4" TRS Balanced Line/Monitor Output
2x 1/4" TS Unbalanced Hi-Z Output
2x 1/4" TRS Headphone Output
Digital Audio I/O 2x TOSLINK Optical ADAT Input (S/MUX Support)
2x TOSLINK Optical ADAT Output (S/MUX Support)
1x RCA Coaxial S/PDIF Input (on Included Breakout Cable)
1x RCA Coaxial S/PDIF Output (on Included Breakout Cable)
Host Connection USB-C
OS Compatibility macOS
Windows
Power Requirements AC Input
Channels of I/O 26 Inputs / 30 Outputs
Channels of I/O Analogue:
8 Input / 12 Output
ADAT:
16 Input / 16 Output at 48 kHz
S/PDIF:
2 Input / 2 Output at Up to 192 kHz
Built-In DSP No
Maximum Sampling Rate 192 kHz / 32-Bit
Number of Microphone Inputs 8
Built-In Microphone No
Input Level Adjustment via Software
Expansion Slots No
Signal Processing
Gain/Trim Range Mic Inputs:
75 dB
Connectivity
Analogue Audio I/O 8x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
10x 1/4" TRS Balanced Line/Monitor Output
2x 1/4" TS Unbalanced Hi-Z Output
2x 1/4" TRS Headphone Output
Phantom Power 48 V, Selectable On/Off
Digital Audio I/O 2x TOSLINK Optical ADAT Input (S/MUX Support)
2x TOSLINK Optical ADAT Output (S/MUX Support)
1x RCA Coaxial S/PDIF Input (on Included Breakout Cable)
1x RCA Coaxial S/PDIF Output (on Included Breakout Cable)
Host Connection USB-C
Host Connection Protocol Not Specified by Manufacturer
USB (Non-Host) No
Sync I/O No
Network I/O No
MIDI I/O 1x DIN 5-Pin Input (on Included Breakout Cable)
1x DIN 5-Pin Output (on Included Breakout Cable)
Wireless No
Performance
Frequency Response Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.1 dB
Line, Monitor Outputs:
20 Hz to 20 Hz ±0.2 dB
Headphone Outputs:
20 Hz to 20 kHz ±0.3 dB
Maximum Input Level Mic Inputs:
+18 dBu
Hi-Z Inputs:
+21 dBu
Line Inputs:
+18 dBu
Maximum Output Level Line/Main Outputs:
+18 dBu
Headphone Outputs:
11 dBu (at 50 Ohms)
Impedance Mic Inputs:
1600 Ohms
Hi-Z Inputs:
1 Megohm
Line Inputs:
10 Kilohms
Line/Main Outputs:
51 Ohms
Headphone Outputs:
33 Ohms
Dynamic Range Mic Inputs:
116 dBA
Hi-Z Inputs:
111 dBA
Line Inputs:
118 dBA
Line/Monitor Outputs:
123 dBA
Headphone Outputs:
118 dBA
Digital AD/DA Convertors:
124 dB
THD Mic Inputs:
0.002%
Hi-Z Inputs:
0.003%
Line Inputs:
0.001%
Line/Monitor Outputs:
0.001%
Headphone Outputs:
0.001%
EIN -130 dBu A-Weighted
Digital Audio
Sample Rates Up to 192 kHz
Sample Rate Conversion No
Bit Depths 32-Bit
Audio Storage & Playback
Media/Memory Card Slot No
Compatibility
OS Compatibility macOS
Windows
Mobile App Compatible Yes: Android & iOS
App Name: Universal Control App
Functionality: Adjust Settings, Remote Control
Power
Power Requirements AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Rackmount Size 1 RU
Dimensions 19 x 8.6 x 1.7" / 48.3 x 21.8 x 4.3 cm
Weight 6.4 lb / 2.9 kg

In The Box

  • PreSonus Quantum HD 8 USB-C Audio Interface
  • DB-9 Breakout Cable
  • USB-C to USB-C Cable
  • Power Cord
