RCF TT 10-A Active 2-Way Monitor has been discontinued, here are some related products you might like:

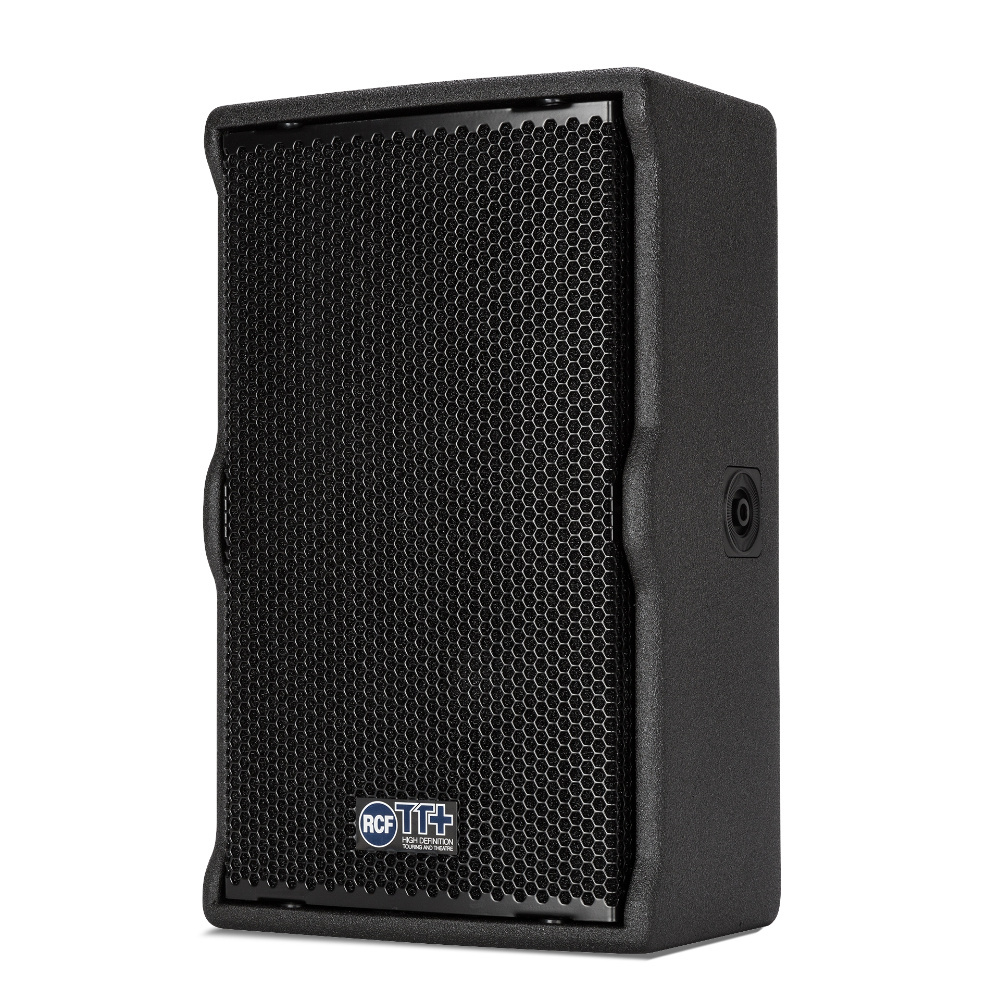

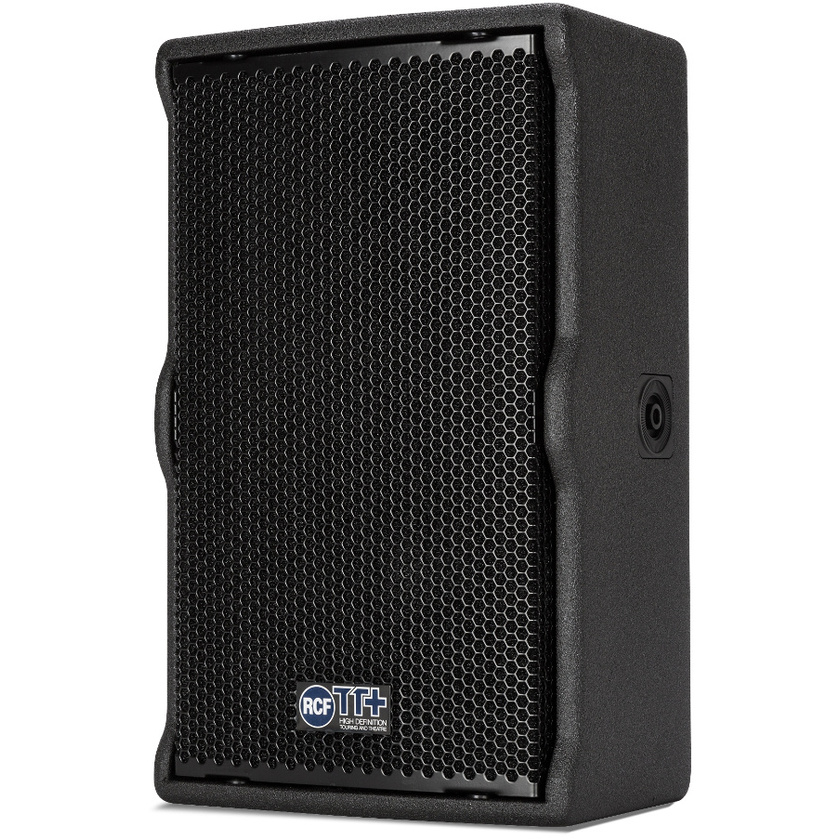

RCF TT 10-A Active 2-Way Monitor

Product #94994 | SKU 13000549 | RCF
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • For Live Sound Reinforcement
  • Small- to Mid-Sized Touring and Theatre
  • 1000W RMS, Class-D Amplifier, 130 dB SPL
  • 10" Woofer, 2.5" Voice Coil
  • 1" HF Driver, 1.75" Voice Coil

Description

With 130 dB SPL power and a small footprint, the active two-way RCF TT10-A speaker saves the day when you need top quality sound power and unobtrusive size. Though remarkably compact and lightweight, the TT10-A offers the distinguished high-end TT+ sound quality, DSP capabilities, networked control, rugged hardware and a complete set of rigging options.

Key Features:

  • 130 dB SPL Max
  • 1000W RMS, two-way Class-D amplifier
  • Rotatable 90° x 70° Constant Directivity Horn
  • Quick Fit Bracket Socket
  • FiRPHASE
  • 10’’ neodymium Woofers, 2.5’’ voice coil
  • Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
  • RDNet Networked Management
  • 60 ÷ 20000 Hz Frequency Range

Specifications

Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity 1000 W RMS
Amplifier Class Class-D
Drivers
HF Driver 1 x 1" / 2.5 cm Rotatable Horn Compression Driver
HF Voice Coil 1.75" / 4.45 cm
LF Driver 1 x 10" / 25.4 cm Woofer
LF Voice Coil 2.5" / 6.3 cm
Magnet Neodymium
Performance
Frequency Response 60 Hz to 20 kHz
Maximum SPL 130 dB
Coverage Angle 90° H x 70° V (Rotatable Horn)
Max Input Level +4 dB
Protections Crossover Overload, Thermal
Connectivity
Audio I/O 1 x XLR 3-Pin Female Balanced/Unbalanced Input
1 x XLR 3-Pin Male Balanced/Unbalanced Thru
Network I/O 2 xetherCON (Control/Network/RDNet) In/Out
Signal Processing
Crossover High-Pass:
900 Hz
AEQ Yes
Parametric AEQ Yes
Semi-Parametric AEQ Yes
Dynamic Processing Limiter
Alignment Delay None
Phase Adjustment Yes
Digital Signal Processing Delay, FIR Filter (Adjustable via Optional Software)
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x powerCON Input
1 x powerCON Output
Power Consumption 300 W
Physical
Mounting 3 x M10 Fly Point (Bottom, Top)
2 x Bracket Point (Side)
Handles 1 x Top
Cooling Convection
Construction Material Perforated Metal Grille, Plywood
Certifications COE, as per Manufacturer
Dimensions 490 x 306.1 x 299 mm
Weight 11.5 kg

In The Box

  • RCF TT 10-A II Active 2-Way Monitor

Reviews

0.0 (no ratings yet)

Details

  • Product: RCF TT 10-A Active 2-Way Monitor
  • Manufacturer: RCF
  • Model: 13000549
  • SKU: 13000549
  • RM Product #: 94994
