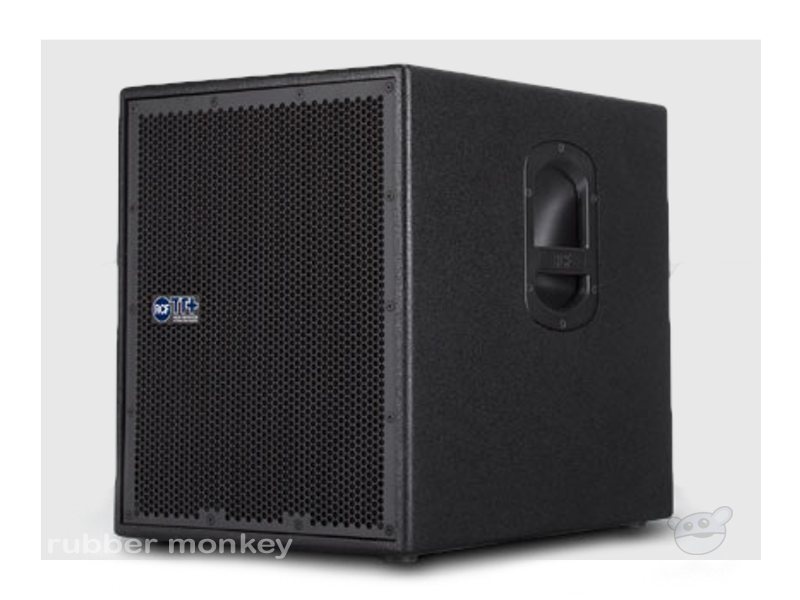

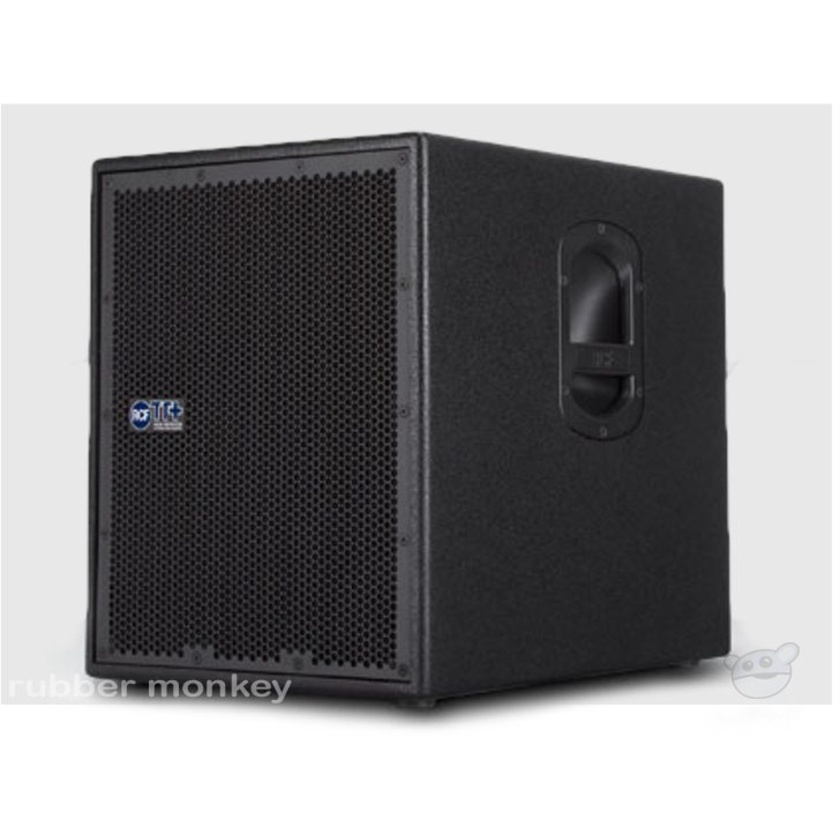

The TTS12-A is an extremely compact high power subwoofer designed to compliment the TT08-A Speaker System.
Based around a band pass design using a newly designed 4” voice coil vented neodymium 12” woofer the TTS12-A is powered by the onboard 1000 Class D power switching amplifier. The system can be wired with one subwoofer plus two satellite TT08-A in full stereo, or on a one to one ratio from the built in active crossover system.
Product Features and Applications:
- Very compact size
- Maximum output per size available on the market
- Minimum weight
- High power full neodymium 12" transducer
- 1000 Watt switching amplifier
- XLR in/out, Powercon in/out
- Baltic birch cabinet
- Small theatres and night clubs
- Portable and installed audio-visual systems
- Houses of worship
- Surround playback systems
Technical Specifications:
- Frequency Response -3 dB:45 Hz ÷ 120 kHz
- Max SPL:131 dB
- Woofer:12" neo, 100 mm voice coil
- Total power:1000 W
- Low frequencies:D/1000 W
- Cooling:Convection
- Connections:Powercon in/out
- Cabinet Material:Baltic birch
- Height:480mm
- Width:390mm
- Depth:530mm
- Net Weight:28kg
