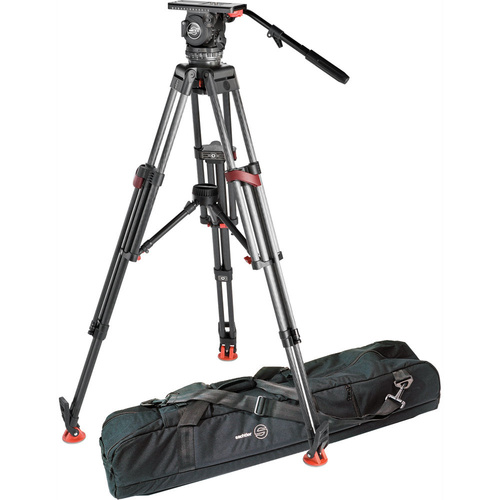

Sachtler System 20 S1 SL HD MCF Sachtler System 20 S1 SL HD MCF

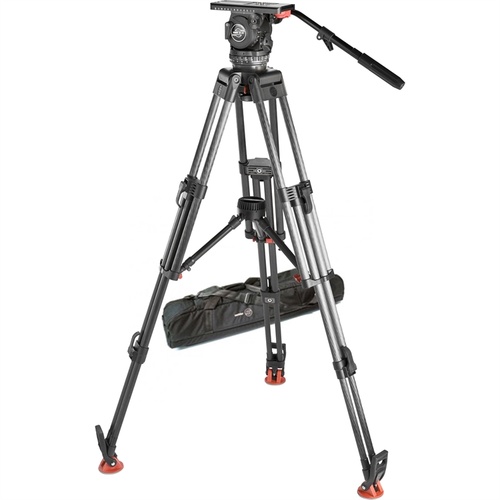

Sachtler System 20 S1 HD MCF Sachtler System 20 S1 HD MCF

Sachtler System 20 S1 HD CF

Product #652 | SKU 2072S1 | Sachtler
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Video 20 S1 Fluid Head
  • ENG 2 CF HD Tripod
  • Ground-level Spreader
  • Padded Bag
  • 16-step Counterbalance

Related Products

Sachtler Rubber Feet (Set of 3) Sachtler Rubber Feet (Set of 3)
Sachtler Camera Plate 16 Touch and Go Quick Release Plate Sachtler Camera Plate 16 Touch and Go Quick Release Plate
Manfrotto 148KN Reducing Bushing Set Manfrotto 148KN Reducing Bushing Set
SHAPE Female Spigot (3/8"-16 to 1/4"-20) SHAPE Female Spigot (3/8"-16 to 1/4"-20)
Platinum Tools 19001C 6-in-1 Screwdriver Platinum Tools 19001C 6-in-1 Screwdriver
Noga MG9038CA CineArm MG (Large) Noga MG9038CA CineArm MG (Large)
Sachtler 3270 Telescopic Pan Handle (Right) Sachtler 3270 Telescopic Pan Handle (Right)
Sachtler 3271 Telescopic Pan Handle (Left) Sachtler 3271 Telescopic Pan Handle (Left)
Benro BA1075 100mm to 75mm Bowl Adapter Ring Benro BA1075 100mm to 75mm Bowl Adapter Ring
Impact 1/4"-20 Female to 3/8"-16 Male Adapter with 1 1/8" Flange Impact 1/4"-20 Female to 3/8"-16 Male Adapter with 1 1/8" Flange
Impact 3/8" to 3/8" Adapter Spigot Impact 3/8" to 3/8" Adapter Spigot
Impact Small 3/8" Female Threaded Adapter to 1/4"-20 Male Threaded Post Impact Small 3/8" Female Threaded Adapter to 1/4"-20 Male Threaded Post
Impact 3/8" and 1/4"-20 Adapter Spigot Impact 3/8" and 1/4"-20 Adapter Spigot

Description

The Sachtler System 20 S1 HD CF brings together the update of a classic fluid head with a quick-action, double extension tripod to provide a professional level of support for today's news-gathering videographer. Whether you're shooting with a large ENG camcorder or the latest video DSLR, this system--which also includes ground spreaders and a padded carry bag--will give you the quick, easy balance and flexible control you need.

Features

Video 20 S1 Fluid Head
This relaunch of the legendary Video 20 head incorporates a wider payload range and a faster, simpler balancing system. The increased range means that even lightweight cameras--such as video DSLRs--can be used effectively, aided by a 16-step counterbalance system that allows for fine degrees of tuning. Like its predecessor, the Video 20 S1 can also easily handle heavier ENG and EFP camcorders, with a Boost Button included for sudden shifts in payload range. Other features include 7 levels of drag, a self-illuminating bubble level, a Touch and Go plate for speedy mounting and removal, and Sachtler's already proven Speedbalance technology.

ENG 2 CF HD Tripod
The ENG 2 CF is extremely lightweight, solid and stable. Weighing in at just 4kg, its completely dual tube design ensures it can safely carry payloads of up to 95kg even at its maximum height. Double extension tripods are ideal for a much wider variety of applications, due to their expanded height range--i.e., lower bottom and higher top positions--which makes transport length even shorter. A folding handle lets you easily carry the tripod in a horizontal position, while Sachtler's quick clamping system means you can securely--and visibly--lock the tripod.

Ground-level Spreader, Carry Bag
The included ground-level spreader ensures absolute stability on flat surfaces, while the ENG/EFP padded bag comfortably and quickly contains the whole kit for efficient transport.


Specifications

General
Load Capacity 2-25kg
Maximum Height 70.1" (178cm)
Minimum Height 28.3" (72cm)
Folded Length 37" (94cm)
Levelling Bubble/Illuminated Yes/Yes
Weight 10.4kg
Head
Counter Balance System 16 Steps + Boost Button
Quick Release/Wedge Plate Touch & Go Plate 16
Balance Plate 4.7" (120mm)
Tilt Drag 7 Steps
Tilt Range +90° to -70°
Tilt Lock Independent
Spring Loaded Counter Balance 7 Steps
Pan Range 360°
Pan Lock Independent
Legs
Material Carbon Fibre
Head Attachment Fitting 100mm
Leg Stages/Sections 2/3
Leg Lock Type Quick Clamp Torque Lock
Independent Leg Spread Yes
Spiked/Retractable Feet Spiked
Centre Brace Ground-level

In The Box

  • Sachtler System 20 S1 HD CF
  • Video 20 S1 Fluid Head
  • Telescoping Pan Bar
  • ENG 2 CF HD Tripod
  • Ground-level Spreader
  • Padded Bag
  • Limited 1-Year Warranty

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Sachtler System 20 S1 HD CF
  • Manufacturer: Sachtler
  • Model: 2072S1
  • SKU: 2072S1
  • RM Product #: 652
  • Closed Length: 94 cm
  • Minimum Height: 72.0 cm
  • Load Capacity: 25.0 kg
  • Weight: 10.40 kg
  • Maximum Height: 178.0 cm
  • Head Type: Fluid
  • Material: Carbon Fibre
  • Stage & Sections: 2/3
