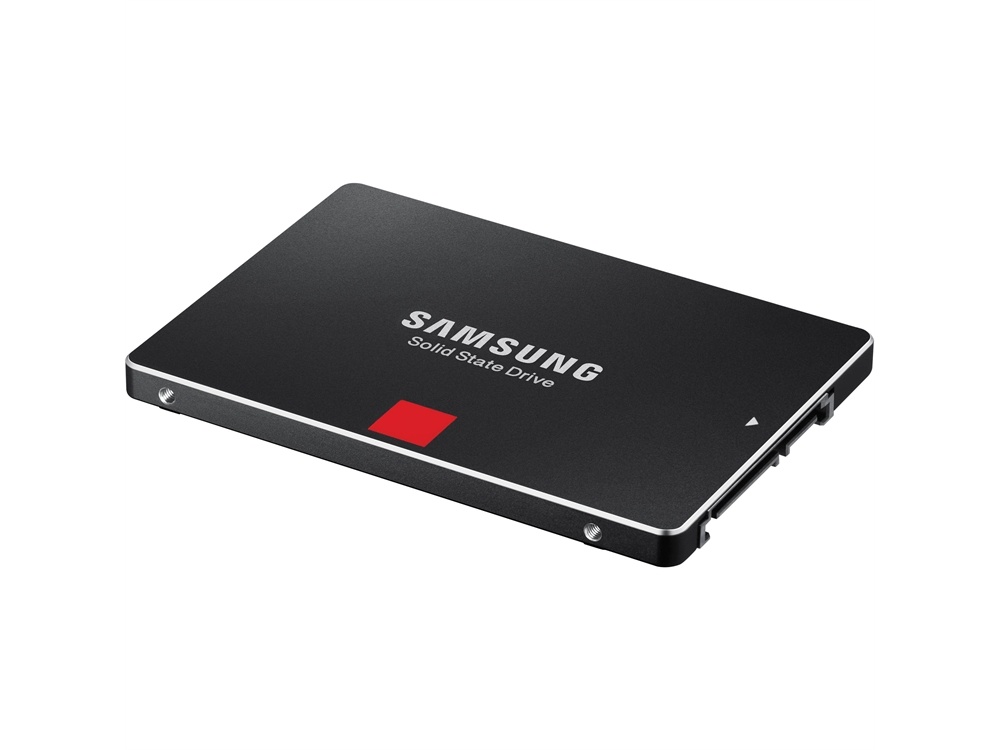

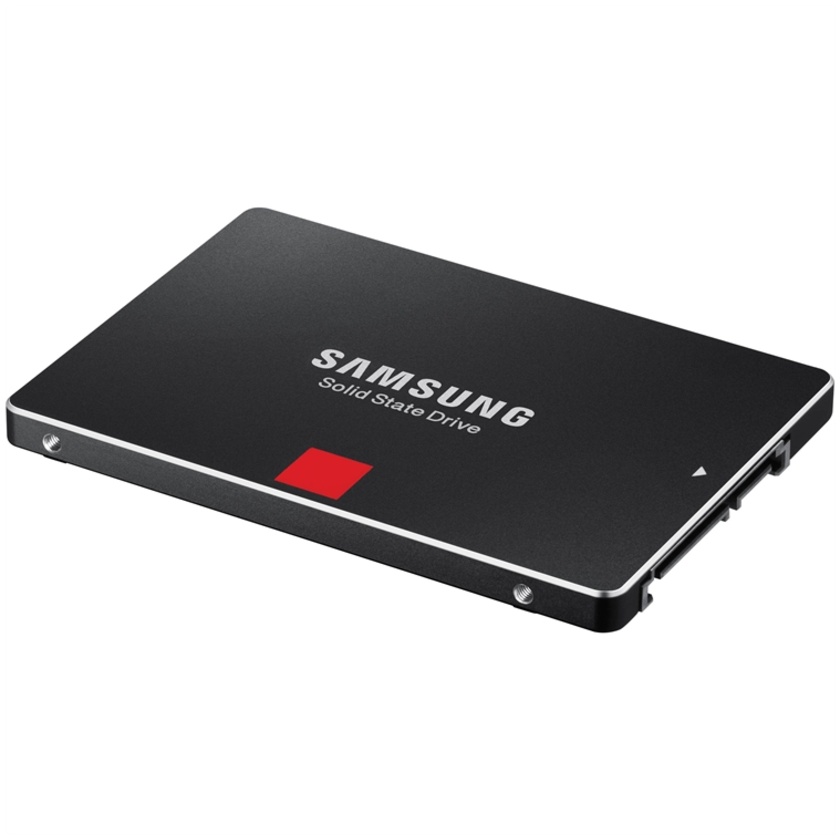

The 128GB 2.5" SSD 850 Pro from Samsung is an internal drive that offers storage space for Windows and Mac systems. This SSD features 32 layer 3D V-NAND technology that offers twice the speed and density of traditional SSDs. This feature provides up to 100K IOPS random read speed and 90K random write speeds. Sequential read and writes are up to 550 MB/s and 470 MB/s. This SSD can also offer higher speeds by enabling RAPID mode. Besides offering performance, the SSD 850 Pro uses 50% less power than traditional hard drives and supports device sleep mode that uses only 2mW.
Features
V-NAND Technology
Flash memory is stacked to 32 cell layers, on top of one another, to offer higher density and higher performance within a smaller footprint. The result is higher read and write performance in both sequential and random speeds
RAPID Mode
Magician software offers the option to enhance performance by using the computer systems DRAM memory as a cache. Enabling RAPID mode can double the read and write performance
Reliable
V-NAND technology was designed to handle a 40GB day workload, which after ten years equates to 150 Terabytes written.
Power Management
When compared to DDR2 or DDR3 cache memory used in other SSD drives, this drive uses LPDDR2 cache memory that offers higher performance while using 30 percent less power when active and 93 percent less power when idle
Encryption
Includes hardware AES-256-bit encryption that secures your data without the lost of performance when compared to software-base encryption. All 850 Pro SSDs are enabled with SED technology that keeps your data safe even if you lose your computer. Complies also with the TCG Opal v2.0 standards, PSID, and is compatible with IEEE 1667 protocol. You can also erase or initialise date using crypto erase service
Dynamic Thermal Guard Protection
Monitors and maintains the drive's temperature by cutting back the write performance to reduce power consumption that generates heat until the drive reaches back to a safer temperature
One-stop Instal Navigator Software
Toolkit that includes an auto instal guide that is a simple three-step installation process that copies all the data from your SSD or hard drive to the 850 Pro. Magician software is also available through the One-stop Instal Navigator software that offers benchmarking, OS optimisation, disk health status tracking and over-provisioning settings
Specifications
| Capacity | 128 GB |
| Interface | SATA III 6 Gb/s |
| Form Factor | 2.5" |
| Controller | Samsung 3-Core MEX Controller |
| NAND Flash | Samsung 32 layer 3D 2-bit V-NAND |
| Sequential Read Speed | Up to 550 MB/s |
| Sequential Write Speed | Up to 470 MB/s |
| Read Performance | 4 kB Random Reads (QD32): up to 100,000 IOPS 4 kB Random Reads (QD1): up to 10,000 IOPS |
| Write Performance | 4 kB Random Writes (QD32): up to 90,000 IOPS 4 kB Random Writes (QD1): up to 36,000 IOPS |
| TRIM Support | Yes (requires OS support) |
| RAID Support | Yes (with RAID controller) |
| Encryption | Yes, Class 0 (256-Bit AES), TCG/Opal v2.0, MS eDrive (IEEE1667) |
| Standard Operating Voltage | 5 V ± 5% |
| Power Consumption | Active Reads: 3.3 W (max) Active Writes: 3.0 W (max) Idle: 0.4 W (max) |
| Device Sleep | Yes (2 mW) |
| Reliability (MTBF) | 2 million hours |
| Reliability (TBW) | 150 TBW / 80 GB |
| Annualised Failure Rate (AFR) | 0.45% |
| Uncorrectable Bit Error Rate | 1 sector per 1017bits read |
| Environmental Requirements | Temperature: 32 to 158°F / 0 to 70°C Humidity: 5 to 95%, non-condensing |
| Data Retention | 1 year power-off once SSD reaches rated write endurance at 104°F / 40°C |
| Hardware Compatibility | Windows 8 (32 & 64-bit), 7 (32 & 64-bit), Vista, XP, Mac OSX, Linux |
| Software Compatibility | Windows 8 (32 & 64-bit), 7 (32 & 64-bit), Vista SP1 and above, XP SP2 and above, Server 2008 (32 & 64-bit), Server 2003 with SP2 and above (32 & 64-bit) |
| Dimensions (WxHxD) | 3.94 x 2.75 x 0.27" / 100.08 x 69.85 x 6.86 mm |
| Weight | 0.14 lb / 63.5 g |
