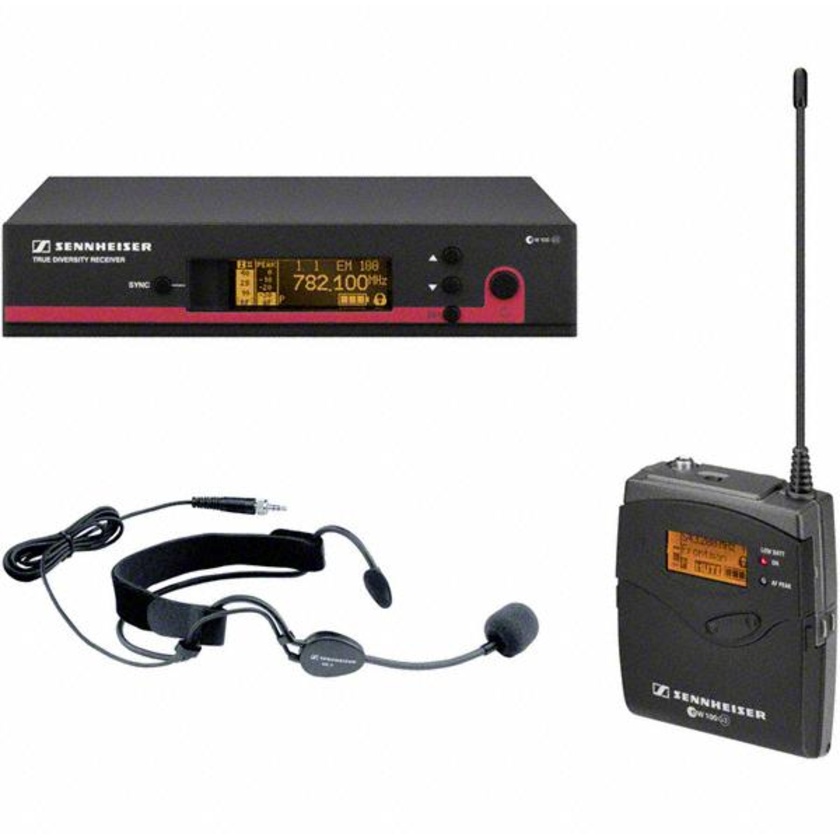

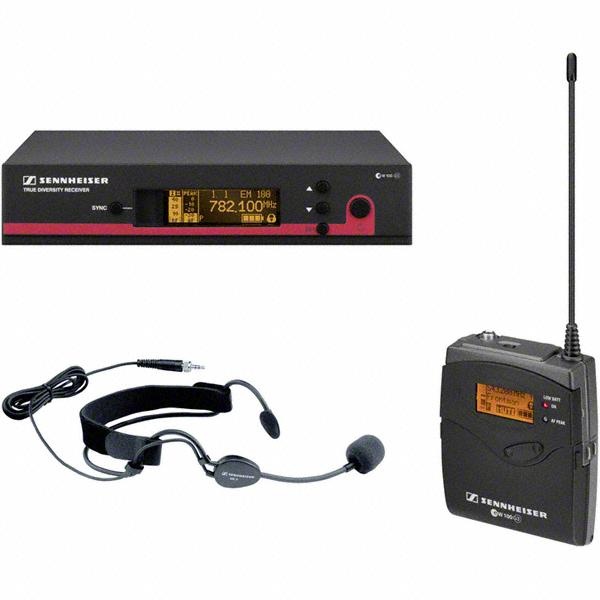

The Sennheiser EW152 G3-B - Headset Microphone Presenter System provides dependable performance for both speech and performance applications and includes a UHF diversity receiver, bodypack transmitter and ME3 headset microphone. The transmitter and receiver synchronize channel and frequency at the touch of a button.
The bodypack allows you to charge the (optional) rechargeable pack while it remains in the transmitter. The receiver's back-lit display allows for easy operation under dimly-lit conditions and its user friendly menu makes operation quick and easy. The EW152 G3 is at home in theaters, clubs, town halls, houses of worship, DJ applications and more.
- Sturdy metal housing (transmitter and receiver
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 12 compatible frequencies
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface
- User-friendly menu operation with more control options
- Illuminated graphic display (transmitter and receiver)
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Programmable Mute function
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
Product Highlights
- Frequency: 626 - 668MHz
- UHF Receiver
- Bodypack Transmitter
- ME3 Cardioid Headset Microphone
- 42 MHz Bandwidth
- 1680 Tunable UHF Frequencies
- 12 Compatible Frequencies Per Bank
Delivery Includes
- 1 EM 100 G3 rack-mount receiver
- 1 SK 100 G3 bodypack transmitter
- 1 ME 3-ew headset (cardioid)
- 1 NT 2 power supply unit
- 2 antennas
- 2 stacking elements
- 2 AA batteries
- Operating instructions
Specifications
System
- Type of System: True Diversity UHF Wireless Headworn Mic System
- RF Carrier Frequency Range: 626 - 668 MHz
- Overall Frequency Response: Line: 25Hz - 18kHz / Mic: 80Hz - 18kHz
- Signal-to-Noise Ratio: > / - 110dBA
- # Of Channels: 1680 (20 Channel Banks, 1 Fixed Banks, 12 Factory Preset Channels Each)
Receiver
- Type of Receiver: EM100 Half-Rack Mountable True Diversity UHF
- Type of Outputs: Balanced XLR / Unbalanced 1/4" Phone
- Headphone Monitoring: 1/4" Phone (Front Panel)
- Power Requirements: 12VDC
- Display: Back-lit LCD Display
- Mounting Options: GA 3 Rackmount Kit (Not Included)
- Antenna Type: BNC Type x2
- Dimensions: 190 x 212 x 43mm
- Weight: 900g
Transmitter
- Type of Transmitter: SK100 Bodypack Transmitter
- Type of Input Connector: Locking 1/8" (3.5mm) Mini
- Type of Microphone: ME3 Headoworn Microphone
- Polar Pattern: Cardioid
- Interchangeable Mic Head: No (Locking 1/8" mini input on bodypack accommodates compatible microphones)
- Battery Type/Approx. Life: AA 1.5V Batteries x2 (8 Hours Typ.)
- Mute Switch: Programmable Mute Function
- Level Control: Yes
- Antenna Type: 1/4 Wave
- Display: Back-Lit LCD
- Dimensions (WxDxH): 82 x 64 x 25mm
- Weight: 160g
