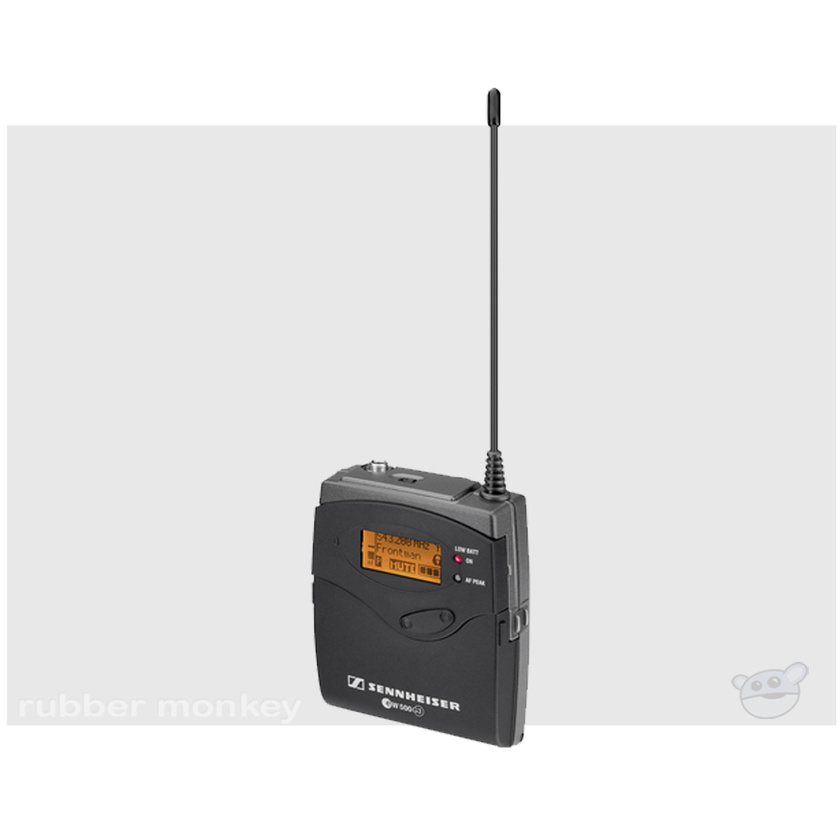

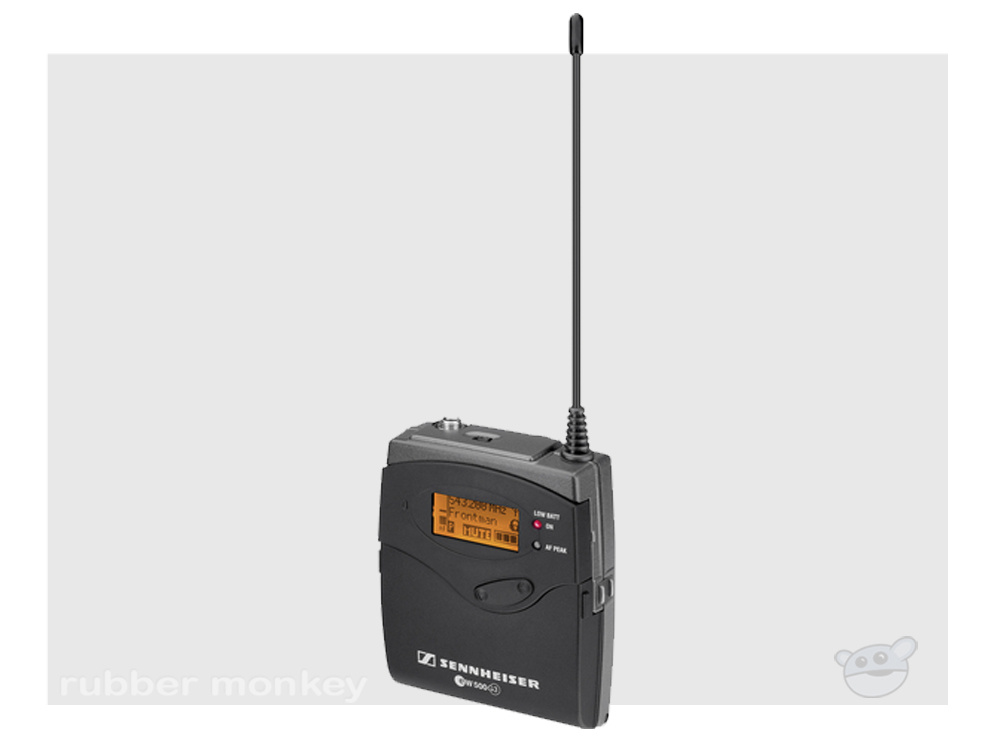

The Sennheiser SK500 G3-G - Bodypack Transmitter makes it easy to operate multiple wireless systems on stage with its switchable output power. This compact, lightweight transmitter has wireless sync for one-touch linking to compatible G3 receivers.
**Suitable for:**Sennhiesser 500 series G3 transmitters.
- Sturdy metal housing
- 42MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 32 compatible frequencies
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface from receiver
- User-friendly menu operation with more control options
- Illuminated graphic display
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter features battery indication in 4 steps, also shown on receiver display
- Programmable Mute function
- Contacts for recharging BA 2015 Accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
Product Highlights
- Frequency: 566 - 608 MHz
- HDX Noise Reduction
- Back-lit Display
Delivery Includes
- 1 SK 500 G3 bodypack transmitter
- 1 protective pouch
- 2 batteries
- Operating instructions
Specifications
- RF frequency range: 566-608 MHz
- Transmission/receiving frequencies: 1680 (max. 20 Presets)
- Switching bandwidth: 42 MHz
- Peak deviation: +/- 48 kHz
- Compander: HDX
- Frequency response (microphone): 80-18,000Hz
- Signal-to-noise ratio: > 115 dB(A)
- THD, total harmonic distortion: < 0,9 %
- In compliance with: ETS 300422 , ETS 300445 , CE , FCC
- Audio-XLR connector: 3,5 mm jack
- RF output power: 10/30 mW
- Operating time (transmitter): > 8 h
- Input voltage range: 1,8 V line
- Input voltage range: max. 3,0 Veff line
- Dimensions (Transmitter): 82 x 64 x 24 mm
- Weight (Transmitter): ~ 160 g
