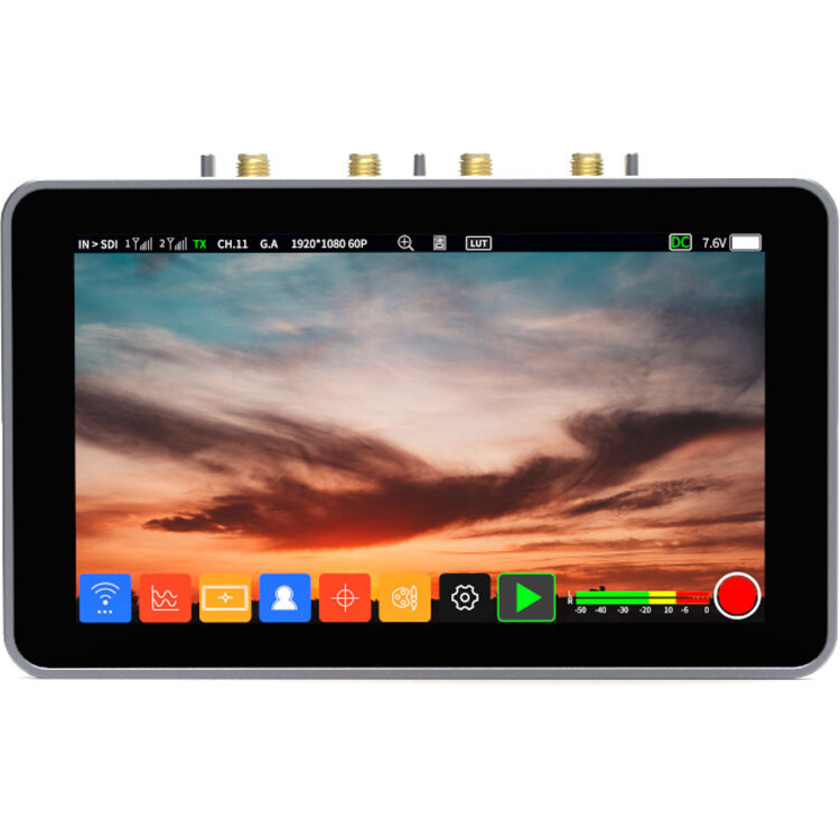

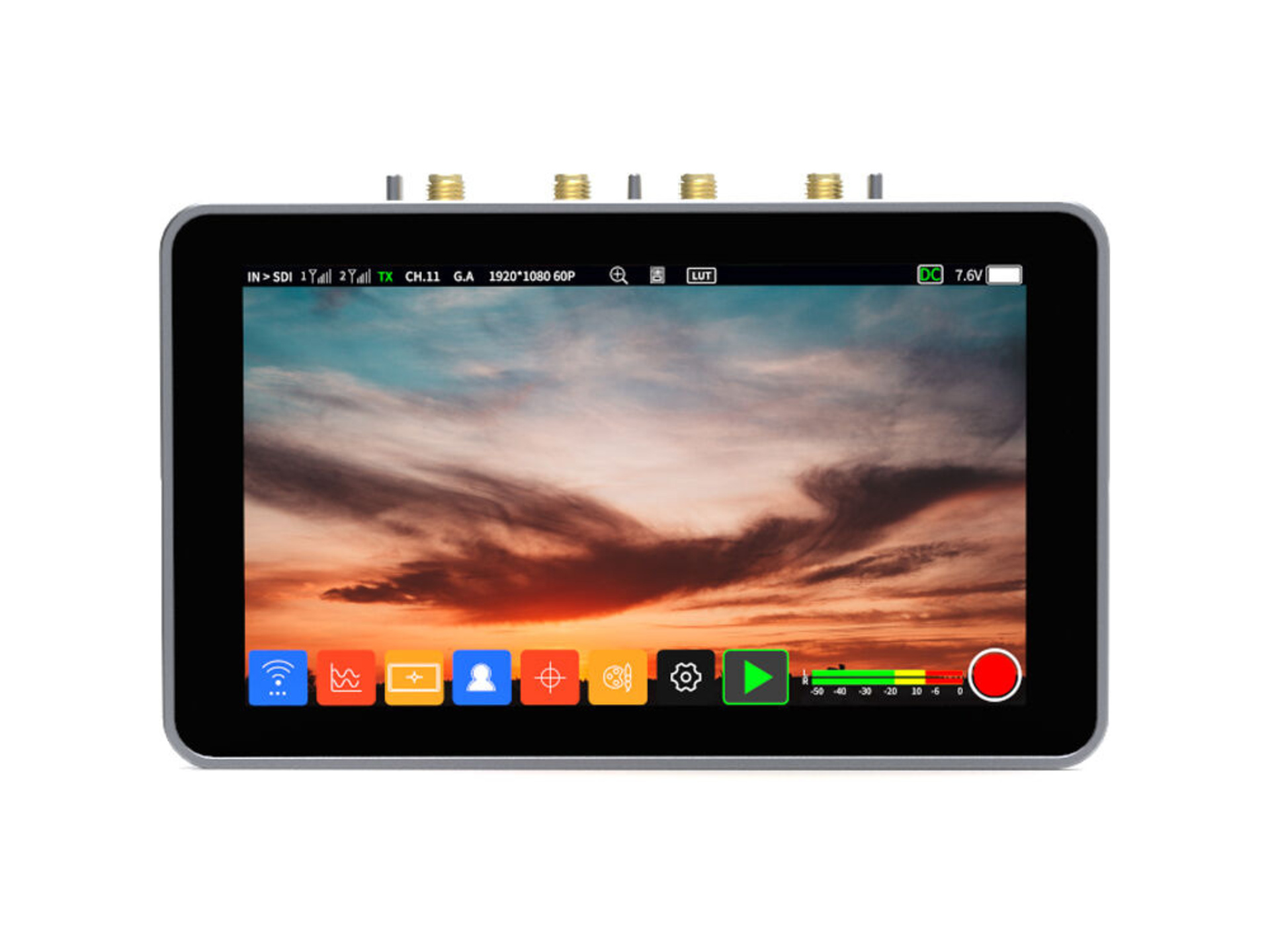

The Shimbol ZO600MS 5.5" 1080p60 Wireless 3G-SDI & HDMI Touchscreen Recorder/Monitor offers the capability to view and capture high-quality 1080p60 video using a 3D LUT. This versatile monitor can function as a transmitter or receiver and is compatible with Shimbol wireless components. It also allows for video transmission to iPhone or iPad. With a 5.5" 1920 x 1080 touchscreen display, it supports 1080p60 input and provides both 3G-SDI and HDMI input and output. The monitor boasts a brightness of 2000 cd/m² and a contrast ratio of 1200:1, making it suitable for daylight viewing.
Shimbol ZO600MS 5.5" 1080p60 Wireless 3G-SDI & HDMI Touchscreen Recorder/Monitor
In Stock with Supplier
Usually ships in 1 - 2 weeks
Our Price
$979
In Stock with Supplier
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- 1920 x 1080 Touchscreen Display
- Up to 1080p60 SDI & HDMI Input/Output
- 1080p60 Recording to SD Card, HDR
- 984' Wireless Range, 3D LUT Support
- 2000 cd/m² Brightness, 1200:1 Contrast
- Waveform, Vectorscope, Focus Peaking
Description
Specifications
| Key Specs | |
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | Yes, Hybrid Log Gamma |
| Video I/O | 1x HDMI Input 1x HDMI Output 1x BNC Input 1x BNC Output |
| Video Format | HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Built-In Battery | No |
| Battery Type | 1x L-Series |
| Power Consumption | 13 W (Maximum) |
| Display | |
| Panel Type | LCD |
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 2000 nits / cd/m2 |
| Contrast Ratio | 1200:1 |
| HDR Support | Yes, Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 500 ppi |
| Inputs / Outputs | |
| Video I/O | 1x HDMI Input 1x HDMI Output 1x BNC Input 1x BNC Output |
| Wireless Range | 984.3' / 300 m |
| Channel Bandwidth | 20 MHz |
| Latency | 0.08 sec |
| RF Power | 17 dBm |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Power | |
| Input Power | 6.5 to 16.8 VDC |
| Built-In Battery | No |
| Battery Type | 1x L-Series |
| Power Consumption | 13 W (Maximum) |
In The Box
- Shimbol ZO600MS 5.5" 1080p60 Wireless 3G-SDI & HDMI Touchscreen Recorder/Monitor
- Antenna
- SD Card
- Tempered Screen Protector
- HDMI Cable
- SDI Cable
- Tilting Shoe Mount
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Shimbol ZO600MS 5.5" 1080p60 Wireless 3G-SDI & HDMI Touchscreen Recorder/Monitor
- Manufacturer: Shimbol
- Model: ZO600MS
- SKU: ZO600MS
- RM Product #: 118784
- Screen Size: 5.5"
- Connection: HDMI
- Screen Resolution: 1920 x 1080
- Connection: 3G-SDI
