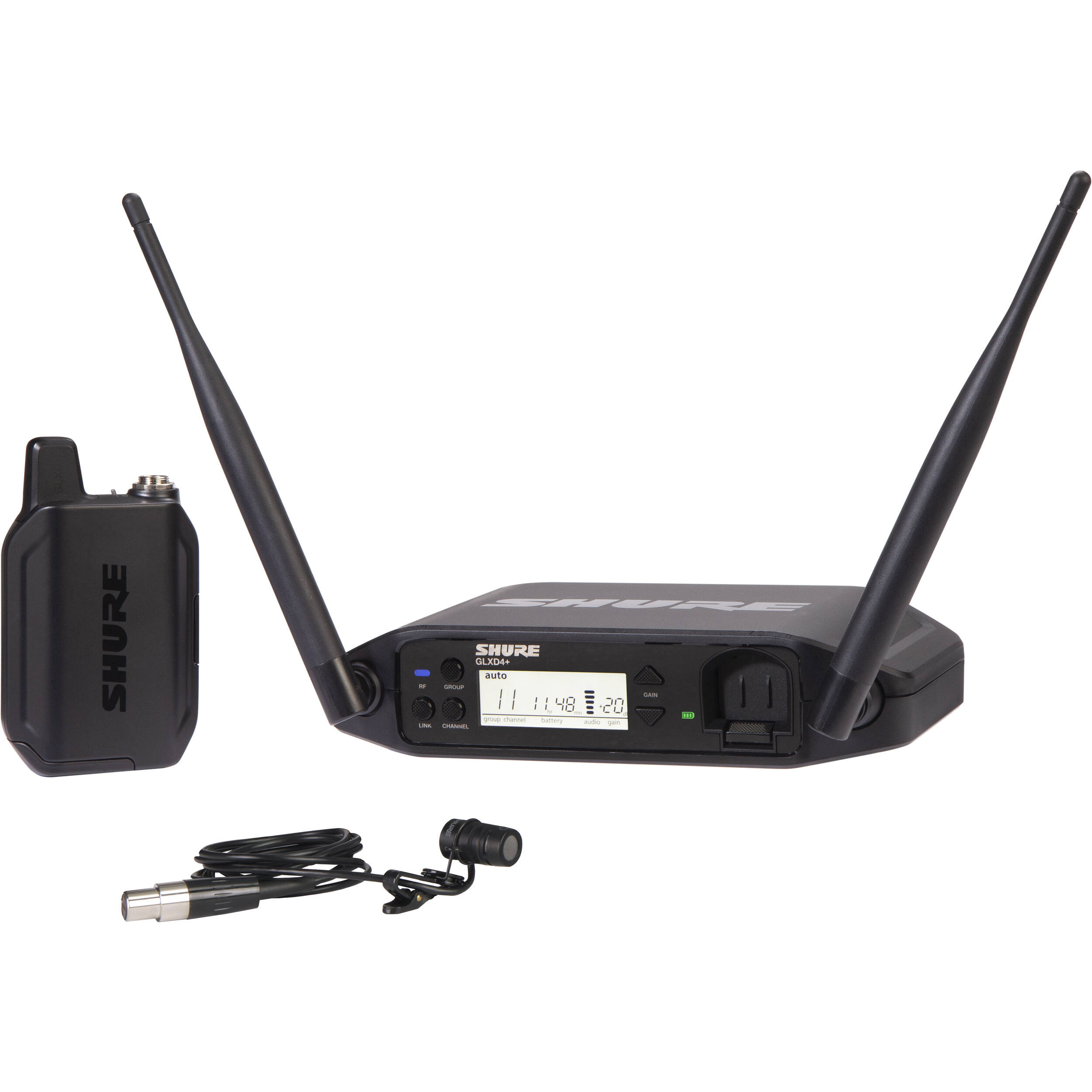

Shure GLXD14+ Dual-Band Cardioid Wireless Presenter System

Name: Shure GLXD14+ Dual-Band Cardioid Wireless Presenter System
Brand: Shure
SKU: 103445
Price: 1609.00 NZD
Availability: BackOrder

Product #103445 | SKU GLXD14+-WL85 | Shure

| Write a review

Usually ships in 4 - 6 weeks what does this mean?

Shure GLXD14+ Dual-Band Cardioid Wireless Presenter System

Our Price $1,609

Usually ships in 4 - 6 weeks what does this mean?

Email me when stock arrives

Request price match

Talk to our experts

Shipping & Availability

Usually ships in 4 - 6 weeks. Deliver to Auckland for $12 Change location

Click & Collect

Check availability

Features

For Presenters and Broadcasters
WL185 Cardioid Lavalier Microphone
Lightweight Bodypack Transmitter
Portable Tabletop Receiver
Auto Scans 2.4 and 5.8 GHz Frequencies
Easy Setup with Auto Pairing

Description Specifications In The Box

Description

The Shure GLXD14+ Dual-Band Cardioid Wireless Presenter System features the premium wearable WL185 lavalier microphone for spoken word applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

Shure WL185 Lavalier Microphone

The Shure WL185 Lavalier Microphone brings a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, this lavalier uses an interchangeable condenser cartridge, meaning there will always be a lavalier to suit your application.

Key Features

For Presenters and Broadcasters
WL185 Cardioid Lavalier Microphone
Lightweight Bodypack Transmitter
Portable Tabletop Receiver
Auto Scans 2.4 and 5.8 GHz Frequencies
Easy Setup with Auto Pairing

Specifications


System
Wireless Technology	Digital 2.4 GHz/5.8 GHz
Included Transmitters	1 x Bodypack
Diversity	True Digital Diversity
Max Operating Range	100' / 30.5 m (Line of Sight)
Max Transmitters per Band	8
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	No *As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Latency	4.5 to 8 ms
Dynamic Range	120 dBA
Modulation	Proprietary
Receiver
Receiver Type	Tabletop
Antenna	2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels	1
Audio I/O	1 x XLR 3-Pin Male Balanced Mic/Line Output 1 x 1/4" TRS Female Balanced Output
Audio Output Level	XLR Output: +1 dBV 1/4" Output: +8.5 dBV
Phantom Power Protection	On 1/4", XLR Outputs
Frequency Response	20 Hz to 20 kHz (Dependant on Mic)
Network I/O	None
Word Clock I/O	None
USB/Lightning Connectivity	1 x USB-C Female (Firmware Update)
Impedance	XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced)
RF Output Power	10 mW (EIRP, Max)
Spurious	Rejection: >35 dB
Power Requirements	AC/DC Power Adapter
AC/DC Power Adapter	14.5 to 17 VDC at 600 mA (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Display & Indicators	1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing	ABS
Operating Temperature	0 to 45°C
Dimensions	183 x 40 x 122 mm
Weight	310 g
Transmitter
Transmitter Type	Bodypack
RF Output Power	10 mW (EIRP)
Audio I/O	1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Plug-In Power	5 V
Pad	None
Muting	Off/On Switch
Audio Input Level	-8.4 dBV / 7.5 V p-p
Auto-Level Control	No
Gain Range	-20 to +40 dB (1 dB Steps)
Sync Method	Proprietary
Antenna	1 x Internal, Fixed (Beltpack)
Power Requirements	Battery
Battery Type	1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity	2420 mAh
Battery Charging Time	.25 to 3 Hours
Approx. Battery Life	12 Hours (Lithium Rechargeable)
USB/Lightning I/O	1 x USB-C (Charging)
Display & Indicators	1 x LED (Battery Status, Sync)
Housing	Metal
Dimensions	67 x 115 x 28.5 mm (without Antennas)
Weight	153.1 g (without Batteries)
Microphone
Microphone Type	Lavalier
Colour	Black
Sound Field	Mono
Capsule	Electret Condenser
Polar Pattern	Cardioid
Frequency Range	50 Hz to 17 kHz
Equivalent Noise Level	28 dB A-Weighted
Maximum SPL	130.5 dB SPL
Impedance	1.8 Kilohms
Sensitivity	-45.5 dBV/Pa
Dynamic Range	102.5 dB
Outputs	1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length	3.94' / 1.2 m
Operating Voltage	1.5 to 10 V

In The Box

Shure GLXD14+ Dual-Band Cardioid Wireless Presenter System
Shure GLXD4+ Dual-Band Wireless Tabletop Receiver
Shure GLXD1+ Dual-Band Wireless Bodypack Transmitter
Shure WL185 Cardioid Lavalier Microphone with TA4F Connector (Black)
Carrying Case

Reviews

(no ratings yet)

Own or use this product?
Give it a quick rating:

Share your thoughts with other customers:
Write a review

Details

Product: Shure GLXD14+ Dual-Band Cardioid Wireless Presenter System
Manufacturer: Shure
Model: GLXD14+-WL85
SKU: GLXD14+-WL85
RM Product #: 103445
Length Meters: 1.2 m
System Type: Lavalier System
Warranty: 2 year manufacturer warranty (excluding consumable e.g. lithium-ion batteries).
