Features

  • For Performers and Presenters
  • SM58 Dynamic Cardioid Capsule
  • Handheld Transmitter
  • Digital Predictive Diversity Receiver
  • 1760 Auto-Scan Frequencies

Related Products


Description

The Shure SLXD24/SM58 Digital Wireless Handheld Microphone System with SM58 Capsule offers presenters and performers a wireless handheld microphone system that's dependable, easy to set up, and features crystal-clear, digital sound quality. Built around a rugged, single-channel, half-rack receiver with removable antennas, the system is ideally suited for portable rigs or long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.

The SLX-D operates in the UHF band to transmit high-quality, 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilises Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

This configuration includes the SLXD2 handheld transmitter featuring an interchangeable microphone capsule design and equipped with the SM58 cardioid dynamic capsule, an industry standard for vocalists and presenters. The lightweight metal transmitter features a selectable 1/10mW RF power output and a transmission range up to 100m. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

The all-metal, rackmount SLXD4 receiver features an intuitive LCD interface with metres for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links the them together for quick, coordinated frequency scans from a single receiver.

Wireless Workbench

Wireless Workbench is a free software for audio professionals that puts a full suite of RF spectrum management tools in one place to give you full command of your compatible wireless devices. Guarantee that you are prepared to succeed in any RF environment – no matter the location.

Wireless Workbench helps you set up and manage your networked wireless devices. Quickly perform RF scans and identify & deploy frequencies to your devices in just a few clicks for maximum efficiency. Once the production begins, remotely monitor the RF for every piece of Shure wireless gear to ensure a successful production.

Key Features:

Handheld Transmitter with Legendary SM58 Dynamic Cardioid Capsule
  • With durable aluminium housing, the SLXD2 handheld transmitter offers a lightweight design that's comfortable to hold and features an LCD to show essential information.
  • The SM58 dynamic microphone capsule features a cardioid polar pattern that minimises background noise and feedback, while its brightened midrange and bass roll-off deliver that sought-after warm and clear vocal reproduction.
  • The transmitter's interchangeable capsule design allows you to choose the ideal capsule for your application. Shure offers a variety of optional dynamic and condenser mic capsules with varying pickup patterns—capsules include the Beta 58A, Beta 87A, and KSM8.
Transparent Digital Sound, Dependable Performance, and More Mics
  • The SLX-D delivers 24-bit digital audio with a fast transient response and over 120 dB of dynamic range—resulting in clear, accurate sound for your events..
  • Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas for the cleanest signal—before dropouts occur.
  • With a low latency of 3.2 ms, the system is ideal for meetings that require live sound reinforcement.
  • The SLX-D's spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
  • Ethernet networking saves you time with coordinated group scanning between multiple receivers from a single location; TCPI command streams from third-party companies such as AMX and Crestron are also supported.
Ready to Rackmount, Easy to Use
  • Housed in a tough, half-rack metal chassis with detachable antennas, the SLXD4 receiver is a great fit for A/V installations or as part of a portable rackmount rig—ready to travel to a meeting or event.
  • The SLX-D is engineered to provide outstanding sound for small- to medium-sized spaces and facilities—without costly, complicated features required primarily for large venues.
  • Intuitive front-panel controls and a high-contrast LCD screen with audio and RF metres makes set up a snap.
  • The auto-scan function automatically seeks out the cleanest available frequency for you. The receiver and transmitter then easily link to the same frequency via infrared.
  • The receiver offers up to 60 dB of adjustable gain and the display shows you where the ideal level should be.
Optional Rechargeable Battery Management
  • Adding the SB903 lithium-ion rechargeable battery, along with an SBC10-903 single charger or an SBC203 dual-docking charger, offers a cost-effective and environmentally friendly alternative to throwing away AA batteries (battery and chargers available separately).
  • Using the SB903 battery and SBC203 charger simplifies the task of keeping multiple transmitters charged and ready—you can even recharge the battery while still in the transmitter.
  • When powered by an SB903, the transmitter displays the remaining battery life in hours and minutes.
Enhance the Reliability of Your System

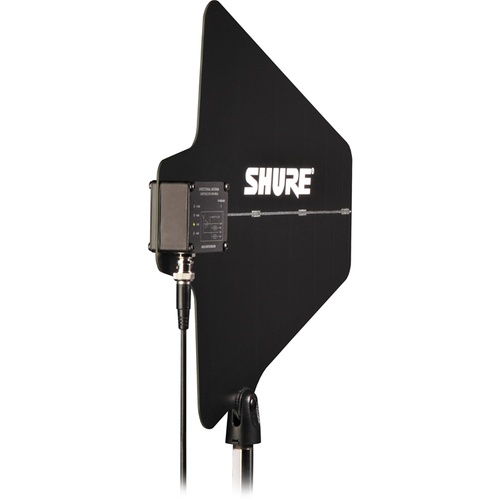

  • Adding UA874 active antennas or PA805SWB passive antennas increases the range of your system and offers increased protection against interference.
  • The UA844+SWB antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time.
A Variety of Mics and Transmitters Available
  • Shure offers a bodypack transmitter with a variety of lavalier and headset microphones to adapt your system as your needs evolve.
  • The WL183 (omnidirectional), WL185 (cardioid), and WL184 (supercardioid) lavalier mics offer hands-free presentation options.
  • The miniature WL93 and subminiature MX150 mics are smaller, easy-to-conceal lavaliers.
  • The discreet MX153 subminiature earset mic provides exceptional clarity in spoken word applications.
  • The PGA31 is a comfortable, durable headset microphone for active performance.

Specifications

System
Wireless Transmission Digital UHF
Number of RF Channels 1760
Included Transmitters 1 x Handheld
Diversity True Digital Diversity
RF Channel Scanning Auto-Scan
Max Operating Range 328' / 100 m
Max Systems per Setup 32
Sample Rate/Resolution 24-Bit
Latency 3.2 ms
Dynamic Range 120 dBA (Typical)
Encryption None
Receiver
Form Factor Tabletop / Rackmount
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TRS Female Balanced Output (Lockable)
Gain Range 0 to +21 dB (3 dB Steps)
Pad 30 dB
Audio Output Level -18 to +42 dB (Balanced, Unbalanced)
Phantom Power Protection On 1/4", XLR Outputs
Frequency Response 20 Hz to 20 kHz +1/-2 dB (Dependant on Mic)
Network I/O 1 x RJ45 (10/100 Mb/s)
Network Protocols DHCP, Manual IP
Impedance 1/4" Output:
1.3 Kilohms (Balanced)
670 Ohms (Unbalanced)
XLR Output:
400 Ohms (Balanced)
150 Ohms (Balanced)
Adjacent Channel Isolation >70 dB
Spurious Rejection: >75 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 15 VDC at 600 mA, Centre-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators LCD (AF Level, Channel, Frequency, Group, Power, RF Level, Sync, Transmitter Battery Status)
Housing Steel
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 7.8 x 1.7 x 6" / 197 x 42 x 152 mm
Weight 1.8 lb / 816 g (without Antenna)
Transmitter
Form Factor Handheld
RF Output Power 1 / 10 mW
Audio I/O None
Pad None
Muting None
Audio Input Level 8.2 dBV
Auto-Level Control No
Gain Range 0 +21 dB
Signal Processing None
Frequency Response 20 Hz to 20 kHz (Dependant on Mic)
Sync Method IR
Antenna Internal Single-Band Helical
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB 903 (Not Included)
Battery Charging Time 1.25 to 5.5 Hours
Approx. Battery Life 8 Hours (Lithium Shure SB903)
8 Hours (Alkaline)
USB/Lightning Connectivity None
Display & Indicators LCD (Battery Status, Channel, Group, Power)
Housing Aluminium
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 1.5 x 6.9" / 37.1 x 176 mm
Weight 5.2 oz / 147 g
Microphone
Form Factor Handheld Capsule
Colour Black
Sound Field Mono
Capsule Dynamic
Polar Pattern Cardioid
Frequency Range 50 Hz to 15 kHz
Sensitivity -54.5 dBV/Pa
CMRR None
Diameter 1.97" / 50 mm
General

In The Box

  • Shure SLXD24/SM58 Digital Wireless Handheld Microphone System with SM58 Capsule
  • Shure SLXD4 Digital Wireless Receiver
  • Shure SLXD2/SM58 Digital Wireless Handheld Microphone Transmitter with SM58 Capsule
  • Wireless Microphone Clip
  • Rackmounting Kit
  • 1/4 Wave Antennas
  • Shure PS43US 15-VDC Power Supply for Shure Wireless Receivers
  • AA Batteries
