The Shure SLXD3 Digital Plug-On XLR Transmitter presents itself as a dependable plug-on XLR transmitter in the digital wireless realm. It seamlessly pairs with the SLXD4, SLXD4D, and SLXD5 receivers, making it incredibly versatile. Its compact and lightweight design, coupled with its durable all-metal construction, ensure its ability to withstand rugged conditions on set. Additionally, the transmitter offers phantom power, further enhancing its usability. Whether you opt for a handheld dynamic or condenser microphone for on-location interviews or prefer to connect a shotgun mic for wireless booming, the SLXD3 accommodates both options (microphones sold separately).

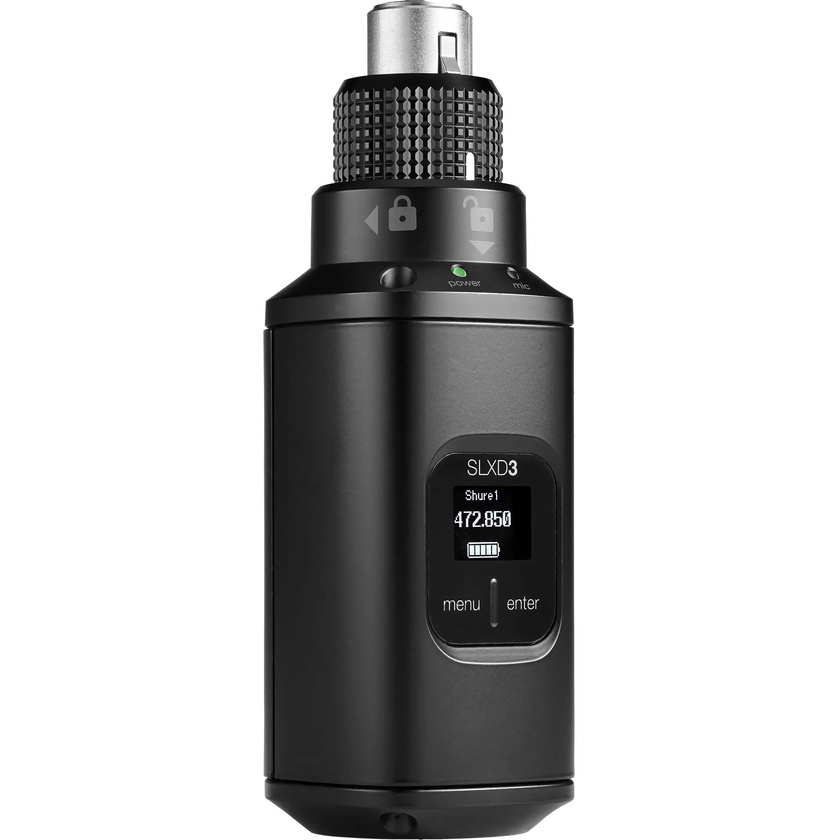

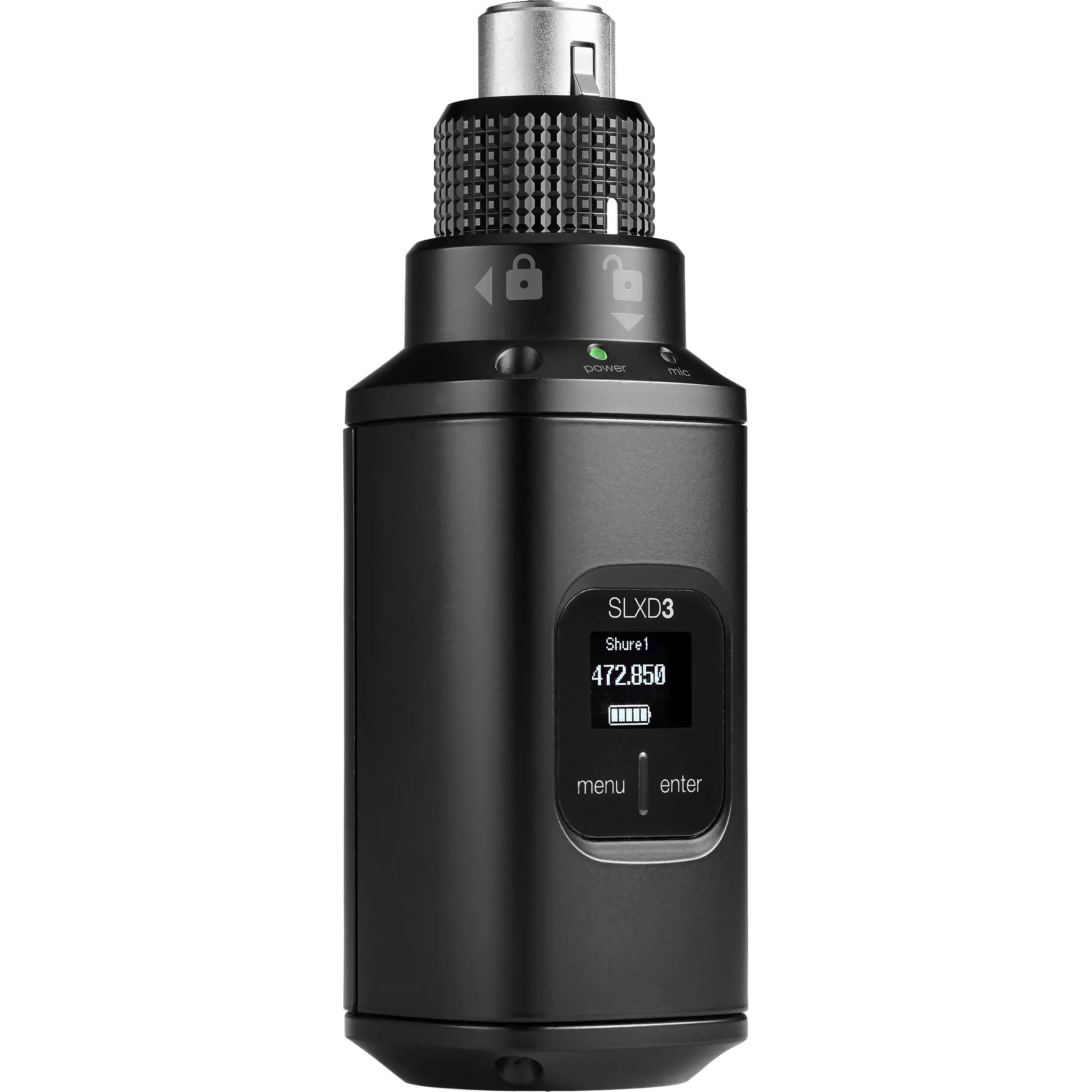

Shure SLXD3 Digital Plug-On XLR Transmitter (L57: 650- 693 MHz)
Usually ships in 4 - 6 weeks
Our Price
$949
Usually ships in 4 - 6 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 4 - 6 weeks.
Deliver to
Auckland
for $7.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
4 - 6 weeks
Click & Collect
Promotion
Giveaway! Go in the draw to win a Shure AONIC 40 Noise-Cancelling Wireless Over-Ear Headphones (Black) when purchasing select Shure gear! Entries close May 31st
Features
- Use with SLXD4, SLXD4D, SLXD5 Receiver
- For XLR Handheld and Shotgun Mics
- Provides +12 or +48 VDC Phantom Power
- Twist-Lock XLR Microphone Connector
- 118 dB Dynamic Range, 24-Bit Audio
- 24 MHz Bandwidth, 1760 Frequencies
Description
Specifications
| Key Specs | |
| Wireless Technology | Digital UHF |
| Max Operating Range | 328' / 100 m |
| Transmitter Type | Plug-On |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Input (Locking) |
| RF Frequency Band | L57: 650- 693 MHz |
| RF Bandwidth | 43 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328' / 100 m |
| Built-In Recorder | No |
| Timecode Support | Yes |
| Mobile App Compatible | No |
| Sample Rate/Resolution | 24-Bit |
| Latency | 3.2 ms |
| Encryption | No |
| THD | <0.02 % |
| Transmitter | |
| Transmitter Type | Plug-On |
| RF Output Power | 1 / 10 / 30 mW |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Input (Locking) |
| Included Cable Connector | No |
| Phantom Power | +12 V +48 V |
| Pad | 12 dB |
| Muting | Off/On Switch |
| Audio Input Level | +20.5 to -3.5 dBV |
| Auto-Level Control | No |
| Gain Range | 0 +21 dB |
| Signal Processing | No |
| Frequency Response | 20 Hz to 20 kHz (Dependant on Mic) |
| Sync Method | IR |
| Antenna | Internal |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Shure SB903 (Not Included) |
| Battery Charging Time | 1.25 to 5.5 Hours |
| Approx. Battery Life | 8 Hours (Lithium Shure SB903) |
| USB/Lightning I/O | No |
| Display & Indicators | OLED (Battery Status, Channel, Group) |
| Housing | Metal |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | 1.6 x 5 x 1.6" / 41 x 126 x 41 mm |
| Weight | 7.1 oz / 200 g |
In The Box
- Shure SLXD3 Digital Plug-On XLR Transmitter (L57: 650- 693 MHz)
- Leather Holder with Belt Clip
- AA Battery
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Shure SLXD3 Digital Plug-On XLR Transmitter (L57: 650- 693 MHz)
- Manufacturer: Shure
- Model: SLXD3
- SKU: SLXD3
- RM Product #: 111765
- Warranty: 2 year manufacturer warranty (excluding consumable e.g. lithium-ion batteries).
