SmallRig 4826 CB75 Camera Base Battery has been discontinued, here are some related products you might like:

SmallRig 4826 CB75 Camera Base Battery

Product #121717 | SKU 4826 | SmallRig
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Built-in threaded mounting points
  • Compatible with Arca-Swiss quick release mount plates
  • Versatile power outputs
  • High-power fast charging

Description

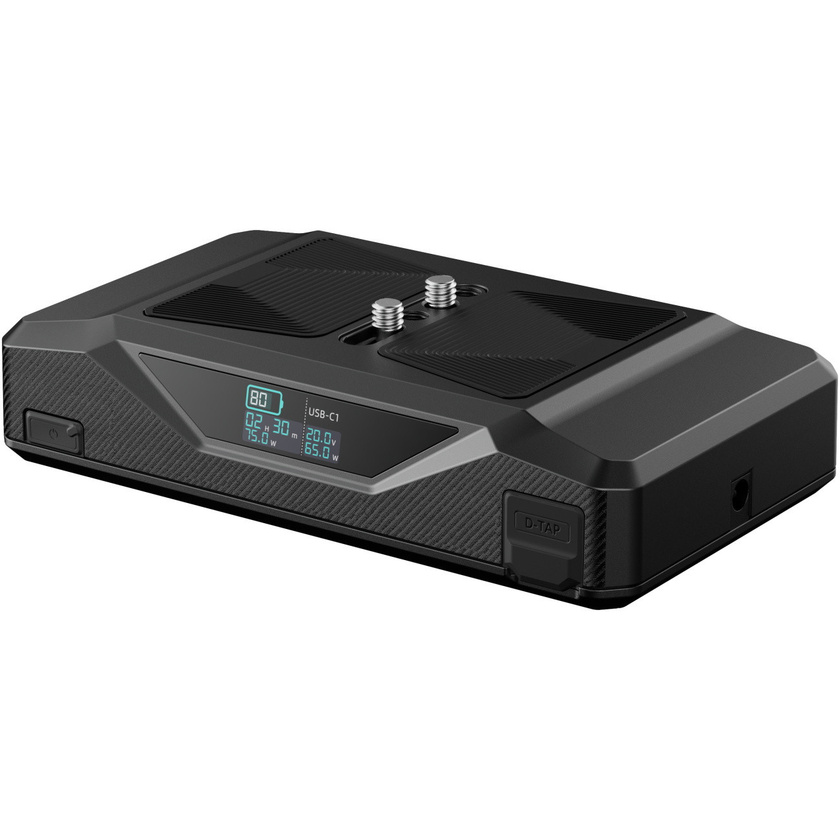

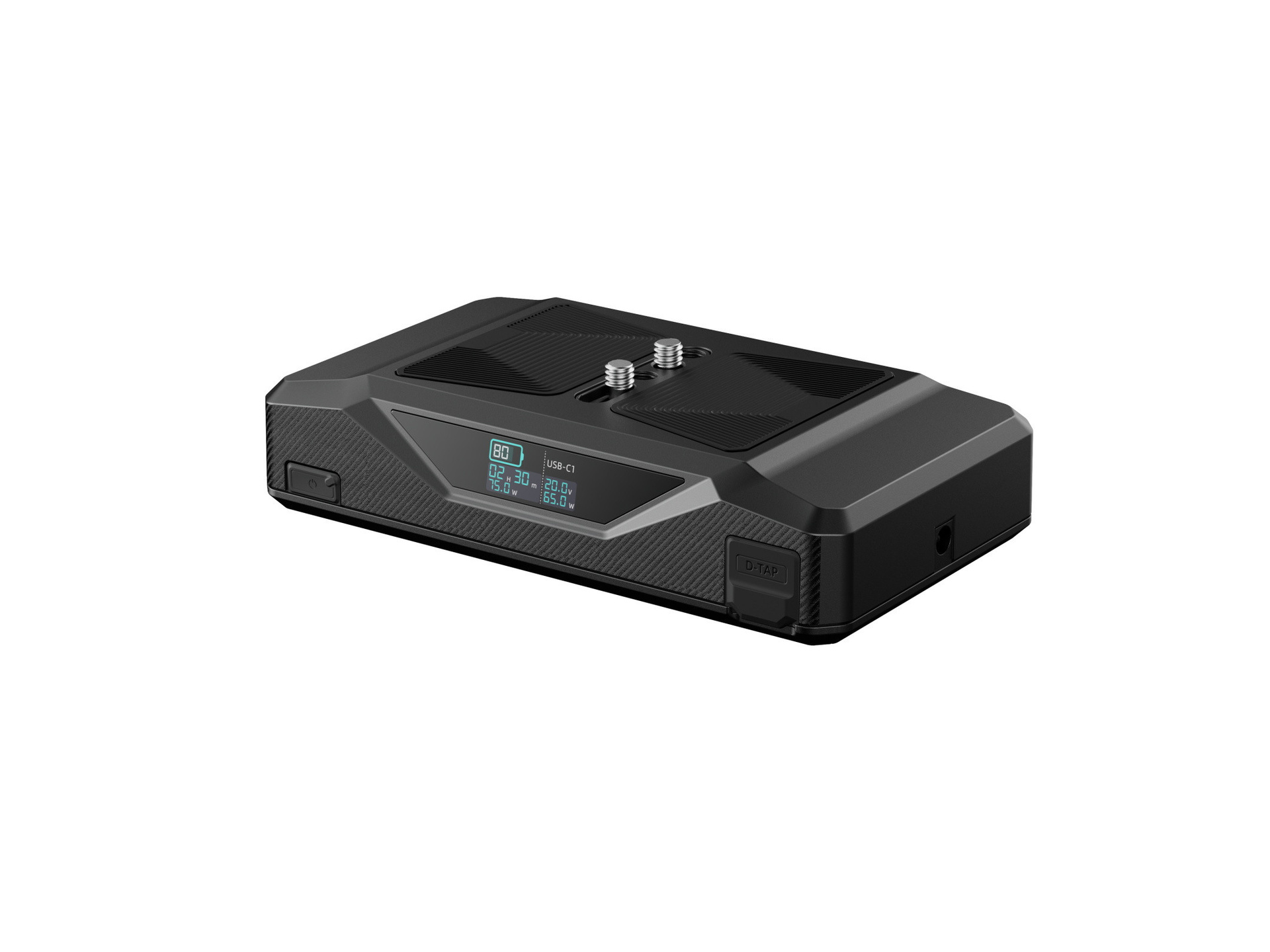

The SmallRig 4826 CB75 Camera Base Battery seamlessly combines high-efficiency power delivery with instant mounting functionality, serving as both a battery and a baseplate. Its dual-sided mounting system includes a top 1/4"-20 screw for direct attachment to cameras or cages, and a bottom 1/4"-20 threaded hole for tripod mounting, eliminating the need for adapters and creating a streamlined power solution. When used with Arca-Swiss quick release mount plates (ID4486) and compatible cages, it facilitates smooth slide-in installation with one-click auto-locking, significantly enhancing setup efficiency.

Equipped with versatile power outputs—including two D-Tap ports, two 65W USB-C ports, and one 8V DC5521 DC port—the unit can simultaneously power multiple devices, making it ideal for demanding production scenarios. The 65W fast-charging technology allows for a full recharge in only 2 hours, ensuring uninterrupted shooting schedules. Despite its slim 3cm / 1.2in profile, the battery boasts a substantial 73.8Wh capacity, capable of supporting professional equipment throughout all-day shooting.

Premium LG battery cells integrate with robust protection circuitry to deliver stable, reliable power with enhanced safety. The full-color HD display provides real-time power monitoring for effective energy management. This professional-grade power solution comprehensively addresses core needs—from instant mounting and multi-device power delivery to rapid recharge capability—making it the ideal power foundation for cinematographers.

Specifications

Product Dimensions 149.0 x 86.0 x 33.0mm / 5.9 x 3.4 x 1.3in
Package Dimensions 178.0 x 153.0 x 57.5mm / 7.0 x 6.0 x 2.3in
Product Weight 528.0 ± 10.0g / 18.6 ± 0.4oz
Package Weight 675.0 ± 10.0g / 23.8 ± 0.4oz
Battery Parameters 14.76 V/5,000 mAh/73.8 Wh
Battery Capacity 20,000 mAh (4×5,000 mAh)
Rated Total Output 73.8 W
D-Tap1 / D-Tap2 Input 16.8 V/6 A (Max)
D-Tap1 / D-Tap2 Output 10.4-16.8 V/8 A (Max)
USB-C1 Input/Output 65 W (Max)
5 V/3 A, 9 V/3 A, 12 V/3 A, 15/3 A, 20 V/3.25 A
USB-C2 Input/Output 65 W (Max)
5 V/3 A, 9 V/3 A, 12 V/3 A, 15/3 A, 20 V/3.25 A
USB-C1 + USB-C2 Simultaneous Output Power 100 W (Max)
USB-C1/USB-C2 Support Protocols PD3.0/QC2.0/QC3.0/PPS/AFC/DCP-1.5 A/APPLE-2.4 A
8V-OUT Output 7.8-8.4 V/3 A (Max)
Discharging Cut-off Voltage 10.4 V
Charging Temperature 0℃-45℃
Discharging Temperature -15℃-60℃
Material Aluminum alloy+PC+ABS

In The Box

  • SmallRig 4826 CB75 Camera Base Battery
  • 100W USB-C to USB-C PD Cable (30cm / 11.8in)
  • Allen Wrench

Reviews

0.0 (no ratings yet)

Details

  • Product: SmallRig 4826 CB75 Camera Base Battery
  • Manufacturer: SmallRig
  • Model: 4826
  • SKU: 4826
  • RM Product #: 121717
  • Batteries / Chargers: Batteries Only
  • Wattage / mAh: 20000mAh
  • Battery: Lithium-Ion
  • Warranty: See here for warranty details view terms
