SmallRig 5488 Turbo Charging Kit for NP-FW50 Camera Batteries has been discontinued, here are some related products you might like:

SmallRig 5488 Turbo Charging Kit for NP-FW50 Camera Batteries

Product #123956 | SKU 5488 | SmallRig
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Ensures full compatibility with Sony NP-FW50 batteries
  • Includes two high-capacity batteries
  • Efficient Dual Charging
  • Clear Power Indicators

Description

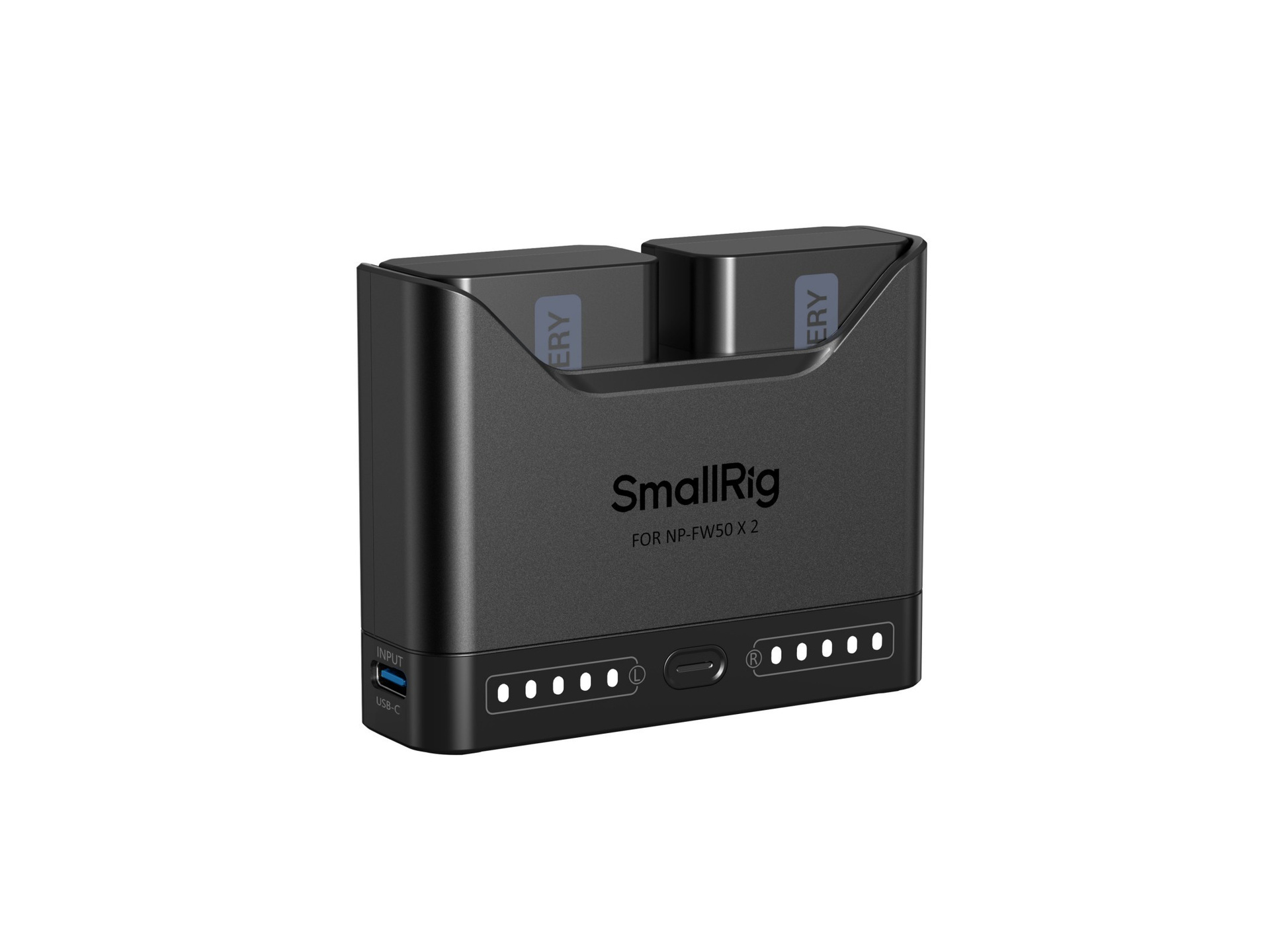

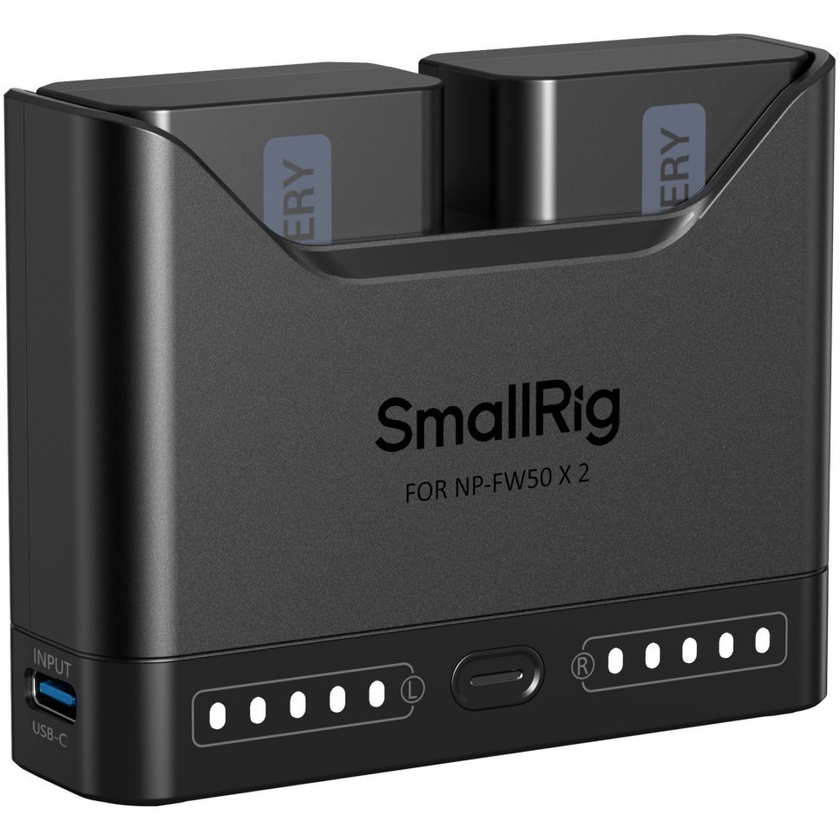

The SmallRig 5488 Turbo Charging Kit for NP-FW50 Camera Batteries includes two batteries and a dual-channel fast charger. Featuring a full decoding chip, this kit ensures full compatibility with Sony NP-FW50 batteries, eliminating pop-up warnings while supporting in-camera power display and original charger use.

Each battery delivers a true-rated output of 1030mAh, providing extended shooting time for demanding workflows. The charger’s dual-slot design allows for simultaneous charging of two batteries or single-battery charging, fully charging two batteries in approximately 1.5 hours for optimal efficiency.

Intelligent circuitry offers multiple safety protections, including over-temperature and over-voltage safeguards. It monitors temperature and voltage, automatically slowing down charging during overheating, cutting off power in case of overvoltage, and employing trickle charging near full capacity to preserve battery health.

Each charging channel features five LED indicators that display power levels in 20% increments, even without external power. A red warning light activates when battery levels are critically low. Additionally, the charger incorporates a universal USB-C input port and comes with a fast-charging cable, making it compatible with wall adapters, car chargers, and power banks for versatile charging options.

Certifications: FCC, CE, RoHS

Note:

  1. Recommended to use a power adapter with 11W or higher output.

  2. When using a 5V / 1A adapter, the charger operates in slow-charge mode, prioritizing the charging of the battery in Channel 1 first. It automatically switches to Channel 2 once Channel 1 is fully charged.

Specifications

Product Dimensions 72.9 x 57.1 x 22.5mm / 2.9 x 2.2 x 0.9in
Package Dimensions 137.0 x 123.0 x 32.0mm / 5.4 x 4.8 x 1.3in
Product Weight 125 ± 10g / 4.4 ± 0.4oz
Package Weight 193 ± 10g / 6.8 ± 0.4oz
Charger Specifications
Material(s) PC + ABS
USB-C Input 5V / 2.2A; 11W (Max)
Rated Output (Per Channel) 8.4V / 0.5A
Operating Temperature 0°C to 45°C / 32°F to 113°F
Battery Specifications
Battery Type Lithium-ion Battery
Nominal Voltage 7.2V
Cell Capacity 1030mAh
Rated Energy 7.62Wh
Charging Limit Voltage (Li-ion Battery Interface) 8.4V
Charging Current (Li-ion Battery Interface) Standard Charge 0.2C (206mA)
Fast Charge 0.7C (515mA)
Maximum Discharge Current 1.03A
Discharge Cut-off Voltage 5.5V
Charging Temperature 0°C to 55°C / 32°F to 131°F
Discharging Temperature -10°C to 60°C / 14°F to 140°F
Material(s) PC + ABS

In The Box

  • Camera Battery Charger for NP-FW50
  • Camera Battery for NP-FW50 x 2
  • Battery Cover x 2
  • 60W USB-C to USB-C Cable (1m / 3.3ft)

Reviews

0.0 (no ratings yet)

Details

  • Product: SmallRig 5488 Turbo Charging Kit for NP-FW50 Camera Batteries
  • Manufacturer: SmallRig
  • Model: 5488
  • SKU: 5488
  • RM Product #: 123956
  • Battery: Lithium-Ion
  • Battery Mount / Series: Sony NP-FW50
  • Batteries / Chargers: Battery & Charger Kits
  • Warranty: See here for warranty details view terms
