SmallRig 5696 Portable Charger Case Kit for NP-FZ100 Camera Batteries has been discontinued, here are some related products you might like:

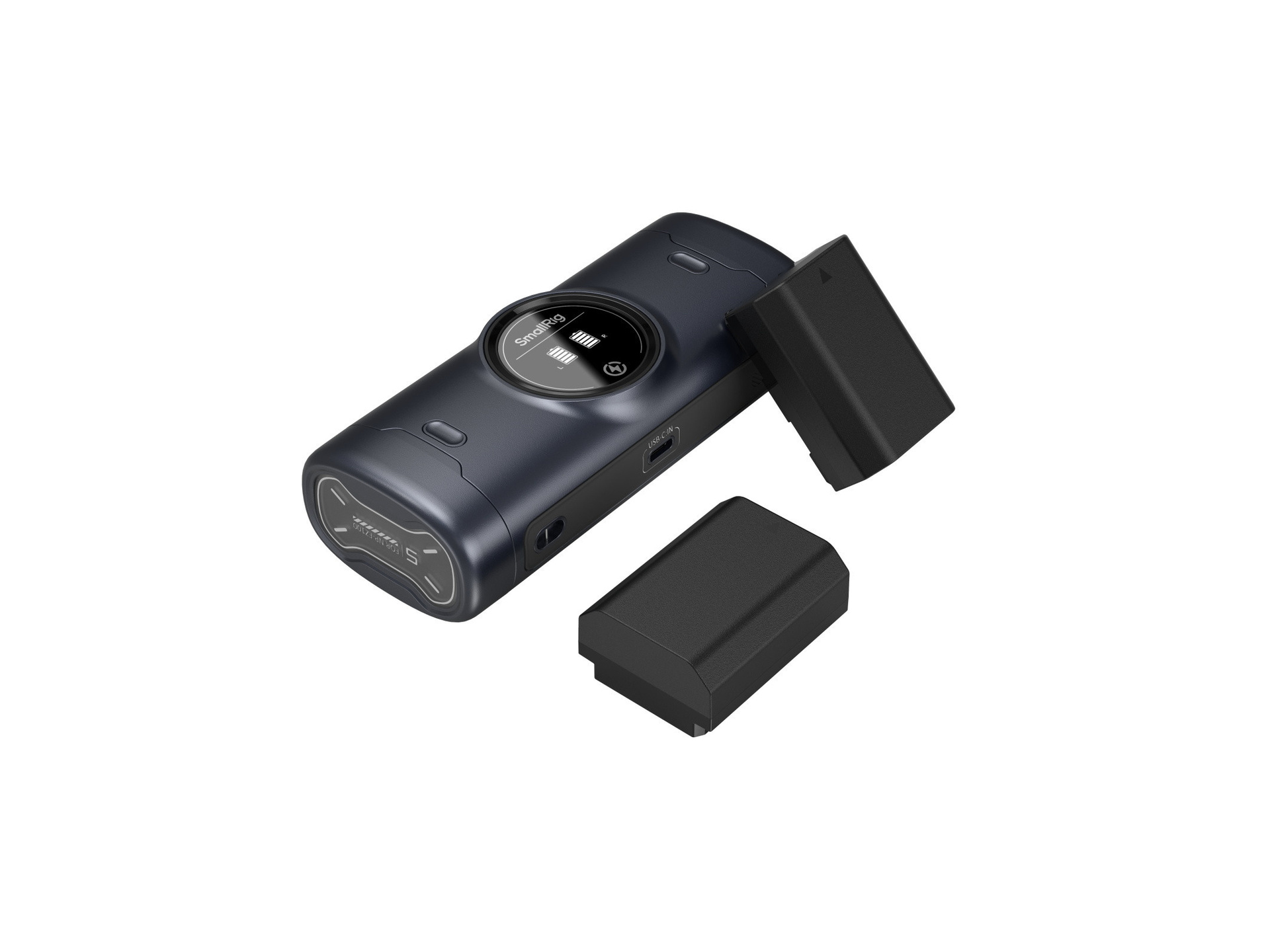

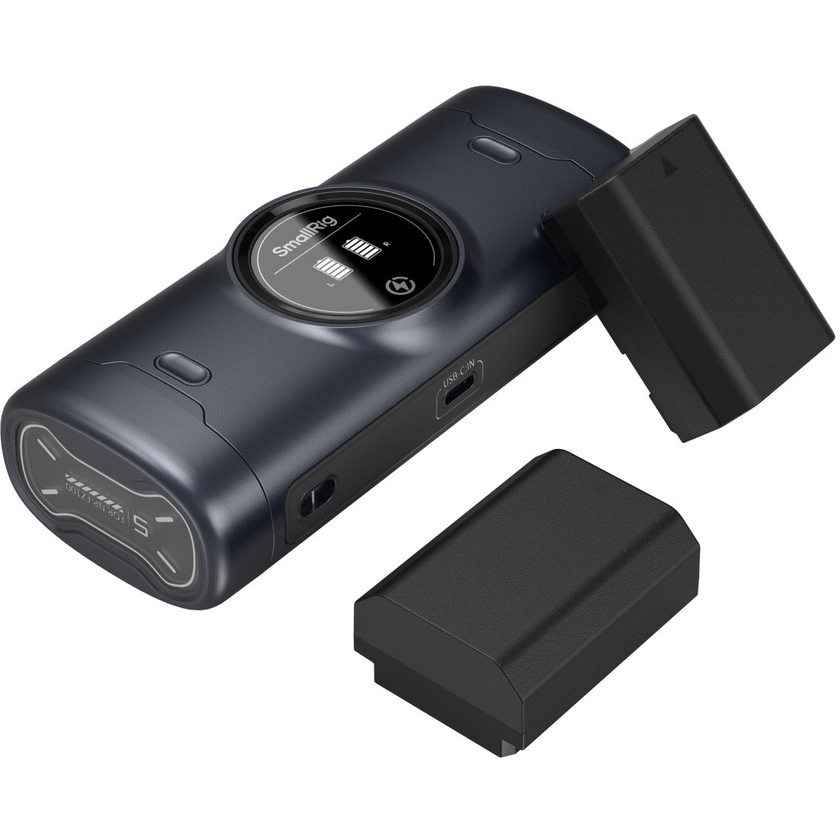

SmallRig 5696 Portable Charger Case Kit for NP-FZ100 Camera Batteries

Product #123949 | SKU 5696 | SmallRig
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Ensures full compatibility with Sony NP-FZ100 batteries
  • Includes two high-capacity batteries
  • Dual-Channel Fast Charging
  • Clear Power Indicators

Description

The SmallRig 5696 Portable Charger Case Kit for NP-FZ100 Camera Batteries includes two high-performance batteries and a dual-channel fast charger. Featuring a full decoding chip, this kit ensures full compatibility with Sony NP-FZ100 batteries, eliminating pop-up warnings while supporting in-camera power display and original charger use. Each battery delivers a true-rated output of 2520mAh, providing extended shooting time for demanding workflows.

The compact charging case holds two batteries, fitting comfortably in your palm, making it ideal for on-the-go use. With a dual-channel design, it allows for simultaneous charging of two batteries or single-battery charging. Equipped with an 18W USB-C fast charging port, it can fully charge two batteries in approximately 2.5 hours, significantly reducing charging time for boosted efficiency.

The high-definition display clearly indicates the battery level for each channel, even when disconnected from power, ensuring you’re always aware of the remaining charge. If battery levels drop critically low, the battery icon will flash, alleviating low-battery anxiety during shoots.

Intelligent circuitry offers multiple safety protections, including over-temperature and over-voltage safeguards. It monitors temperature and voltage, automatically slowing down charging during overheating, cutting off power in case of overvoltage, and employing trickle charging near full capacity to preserve battery health.

Additionally, the charger comes with a fast-charging cable, making it compatible with wall adapters, car chargers, and power banks for versatile recharge options in any shooting scenario.

Certifications: FCC, CE, RoHS, ISED, KC

Note: Recommended to use a power adapter with 18W or higher output.

Specifications

Product Dimensions 135.5 x 57.2 x 37.5mm / 5.3 x 2.3 x 1.5in
Package Dimensions 200.0 x 136.0 x 46.0mm / 7.9 x 5.4 x 1.8in
Product Weight 274.0 ± 10g / 9.7 ± 0.4oz
Package Weight 351.0 ± 10g / 12.4 ± 0.4oz
Charger Specifications
Material(s) PC + ABS
USB-C Input 5V⎓2A, 9V⎓2A; 18W (Max)
USB-C Protocol PD3.0, QC2.0
Rated Output (Per Channel) 8.4V⎓1A; 8.4W
Operating Temperature 0°C to 45°C / 32°F to 113°F
Battery Specifications
Battery Type Lithium-ion Battery
Nominal Voltage 7.2V
Cell Capacity 2520mAh
Rated Energy 18.144Wh
Charging Limit Voltage (Li-ion Battery Interface) 8.4V
Charging Current (Li-ion Battery Interface) Standard Charge 0.2C (520mA)
Fast Charge 0.7C (1820mA)
Maximum Discharge Current 4A
Discharge Cut-off Voltage 5.0V
Charging Temperature 0°C to 45°C / 32°F to 113°F
Discharging Temperature -20°C to 60°C / -4°F to 140°F
Material(s) PC + ABS

In The Box

  • Camera Battery Charger for NP-FZ100
  • Camera Battery for NP-FZ100 x 2
  • Battery Cover x 2
  • 60W USB-C to USB-C Cable (1m / 3.3ft)

Reviews

0.0 (no ratings yet)

Details

  • Product: SmallRig 5696 Portable Charger Case Kit for NP-FZ100 Camera Batteries
  • Manufacturer: SmallRig
  • Model: 5696
  • SKU: 5696
  • RM Product #: 123949
  • Battery: Lithium-Ion
  • Battery Mount / Series: Sony NP-FZ100
  • Batteries / Chargers: Battery & Charger Kits
  • Warranty: See here for warranty details view terms
