StarTech 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART has been discontinued, here are some related products you might like:

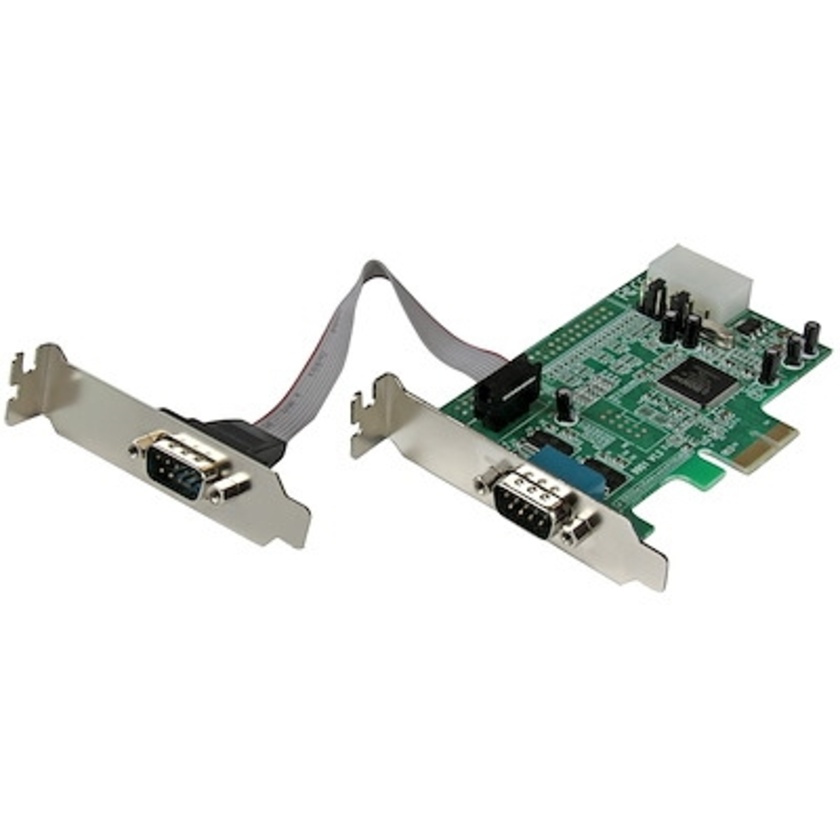

StarTech 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART

Product #78041 | SKU PEX2S553LP | Startech
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Single chip design optimizes speed and reliability
  • Native single-chip, single lane PCI Express
  • Selectable power output on pin 9 for the serial port
  • Compliant with PCI Express base specifications revision 1.1a
  • 128-byte deep FIFO per transmitter and receiver

Description

The StarTech 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART turns a PCI Express slot into two RS232 (DB9) serial connections.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).

Specifications

Connector
Connector Type(s) 1 - PCI Express x1
Internal Ports 1 - LP4 (4 pin; Large Drive Power)
External Ports 2 - DB-9 (9 pin, D-Sub)
Environmental
Operating Temperature -10°C to 80°C (14°F to 176°F)
Storage Temperature -20°C to 100°C (-4°F to 212°F)
Humidity 5~85% RH
Hardware
Ports 2
Interface Serial
Bus Type PCI Express
Card Type Low Profile (SP bracket incl.)
Port Style Integrated on Card
Chipset ID ASIX - MCS9922CV-AA
Packaging Information
Package Height 1.3 in [32 mm]
Package Length 6.8 in [17.3 cm]
Package Width 5.6 in [14.3 cm]
Shipping (Package) Weight 0.4 lb [0.2 kg]
Performance
Serial Protocol RS-232
Max Baud Rate 460.8 Kbps
FIFO 128 Bytes

In The Box

  • 1 - PCI-Express Serial Card
  • 1 - DB9 Ribbon cable
  • 1 - Full Profile Bracket
  • 1 - Low profile bracket
  • 1 - Driver CD
  • 1 - Instruction Manual

Reviews

0.0 (no ratings yet)

Details

  • Product: StarTech 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
  • Manufacturer: Startech
  • Model: PEX2S553LP
  • SKU: PEX2S553LP
  • RM Product #: 78041
