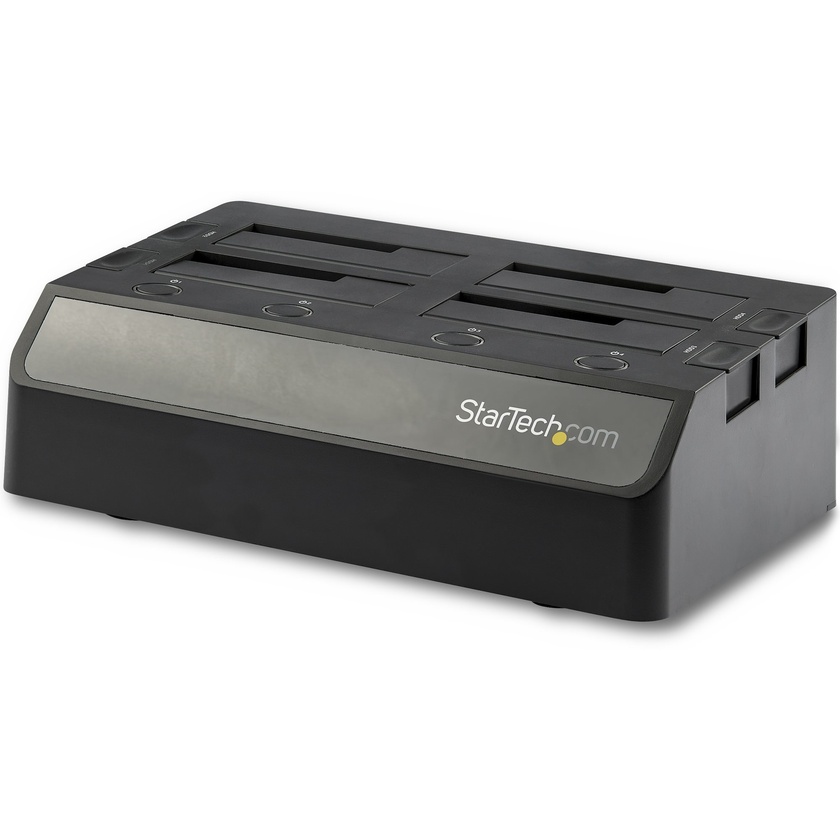

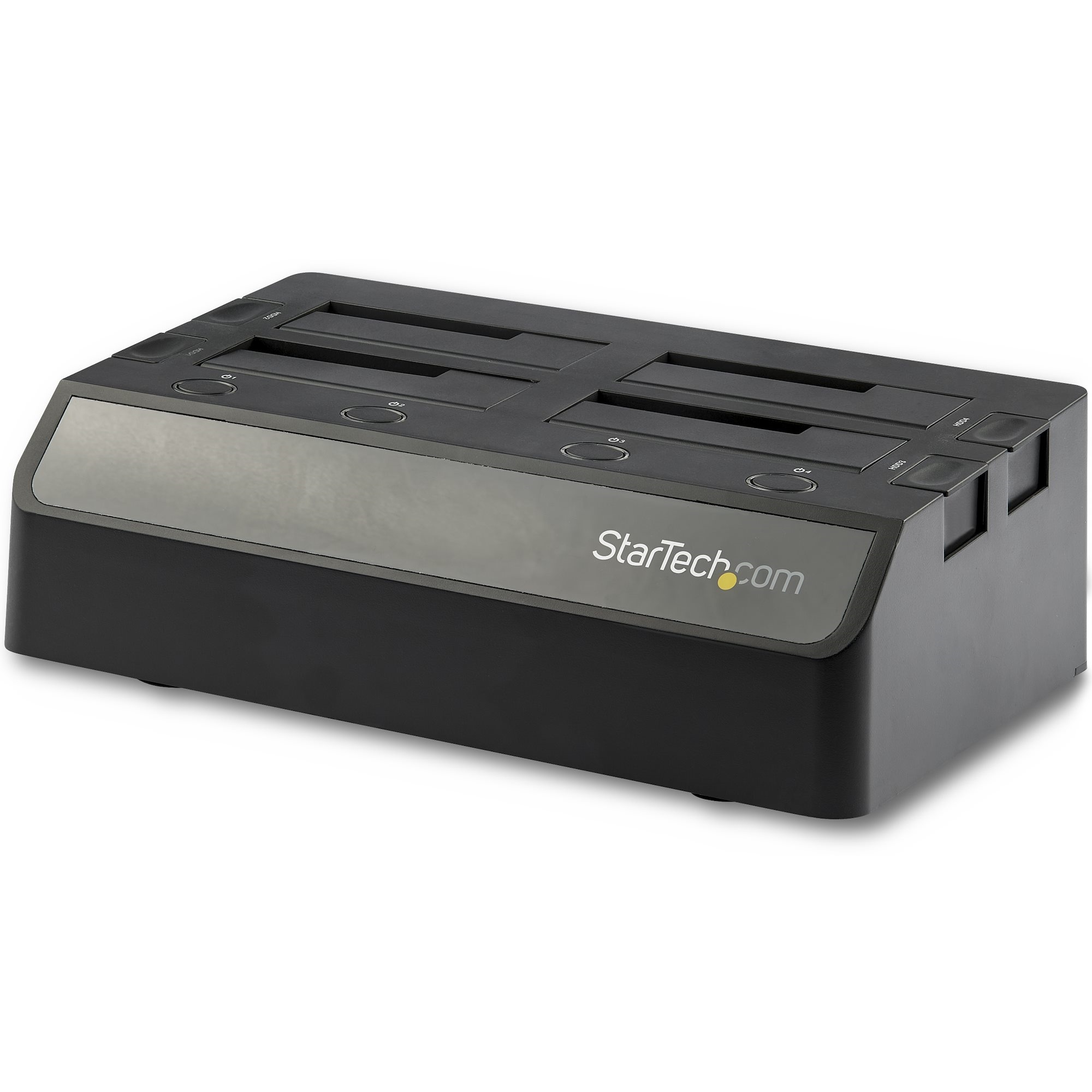

StarTech 4 Bay SATA HDD / SSD Docking Station

Product #84837 | SKU SDOCK4U313 | Startech
Contact us for an ETA what does this mean?
Our Price $509
Contact us for an ETA what does this mean?
This product can't be purchased at this time, please contact us for more information.
- +

Email me when stock arrives


Features

  • Save time accessing and managing your data
  • Fast data transfers
  • Convenient compatibility
  • TRIM support
  • UASP support for enhanced performance

Related Products


Description

This StarTech 4 Bay SATA HDD / SSD Docking Station lets you access up to four solid-state drives or hard drives simultaneously over USB 3.1 (10Gbps), and hot swap drives with ease. Ideal for IT professionals, the docking station provides large data capacity and fast file transfers, helping you manage your workflow more efficiently.

Key Features:

Save time accessing and managing your data

When you’re managing a large number of drives, the HDD/SSD docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks.

The hard drive docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health.

Fast data transfers

With USB 3.1 Gen 2, the HDD docking station lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Convenient compatibility

The hard drive docking station includes a USB Type-C cable, for connecting to USB-C equipped laptops and devices, and a USB Type-A cable, for backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.

The docking station also works with 2.5” and 3.5” IDE hard drives, mSATA drives and M.2 drives using a compatible StarTech.com adapter:

Specifications

Connector
4 - Drive Connectors 22 pin SATA Data & Power Combo Receptacle
1 - Host Connectors USB Type-C (24 pin) USB 3.1 (10Gbps)
Environmental
Operating Temperature 5°C to 35°C (41°F to 95°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Humidity 20% ~ 80% RH
Hardware
Fan(s) Yes
Interface USB 3.1 Gen 2
Bus Type USB 3.1 Gen 2
Number of Drives 4
Drive Size 2.5in & 3.5in
Compatible Drive Types SATA
Drive Installation Removable
2 - Fans 60 mm
Fan Bearing Type Sleeve Bearing
Chipset ID VIA Labs - VL820
VIA Labs - VL715
Indicators
4 - LED Indicators Power
Activity
Packaging Information
Shipping (Package) Weight 11.8 lb [5.4 kg]
Package Length 13.4 in [34.0 cm]
Package Width 6.7 in [17.0 cm]
Package Height 8.3 in [21.0 cm]
Performance
Noise Level 19.04 dBA
Maximum Data Transfer Rate 10Gbps
Type and Rate USB 3.1 Gen 2 - 10 Gbit/s
UASP Support Yes
TRIM Support Yes
4Kn Support Yes
S.M.A.R.T. Support Yes
Type and Rate SATA III (6 Gbps)
Max Drive Capacity Tested up to 10TB
Hot Swap Capability Yes
Insertion Rating 10000
MTBF 30000 hours
Physical Characteristics
Color Black
Material Plastic
Product Length 11.5 in [29.1 cm]
Product Width 6.7 in [17.1 cm]
Product Height 3.7 in [94.7 mm]
Weight of Product 4.9 lb [2.2 kg]
Power
Power Source AC Adapter Included
Input Voltage 100 - 240 AC
Input Current 2.0A
Output Voltage 12V DC
Output Current 6500mA
Plug Type 4-pin DIN
Power Consumption (In Watts) 78

In The Box

  • Docking Station
  • 3 ft [1 m] USB 3.1 (Type-C) Cable
  • 3 ft [1 m] USB 3.1 (Type-A) Cable
  • Universal Power Adapter (NA/JP, UK, EU, ANZ)
  • Quick-Start Guide
