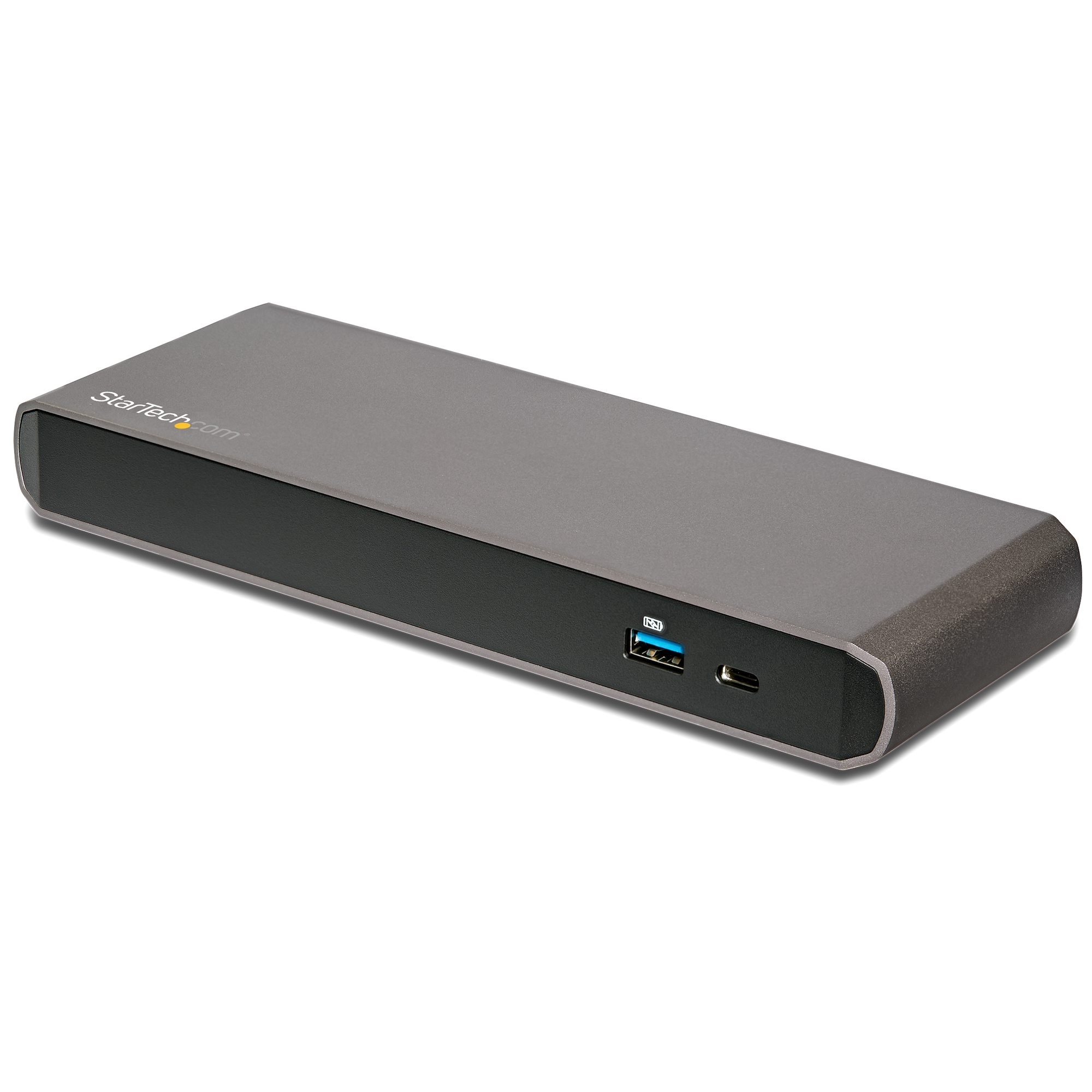

StarTech Dual 4K Monitor Thunderbolt 3 Dock with 3 USB 3.0 Ports

Product #84527 | SKU TB3DK2DPPD | Startech
In stock Ships in 2 - 4 working days
Our Price $739
In stock Ships in 2 - 4 working days
- +

this item may be nonreturnable
Shipping & Availability
Ships in 2 - 4 working days. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Buy Together & Save!
StarTech Dual 4K Monitor Thunderbolt 3 Dock with 3 USB 3.0 Ports
StarTech Dual 4K Monitor Thunderbolt 3 Dock with 3 USB 3.0 Ports
In stock Ships in 2 - 4 working days
StarTech Thunderbolt 3 PCIe Expansion Chassis
In stock Ships in 2 - 4 working days
Buy Together: $1,641.51

Features

  • Create a Dual-4K Workstation
  • Easy Installation & Deployment
  • Connect your Devices
  • Plenty of Charging Power

Related Products


Description

Easily transform your Thunderbolt 3™ equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality StarTech Dual 4K Monitor Thunderbolt 3 Dock with 3 USB 3.0 Ports features three USB 3.0 ports, 85W Power Delivery to charge your laptop.

Key Features:

Create a Dual-4K Workstation Great for video editing and other Ultra HD tasks, this dual-4K monitor docking station supports 40Gbps speeds and 4K resolution on two monitors. Run resource-demanding applications on two independent displays, without draining system resources.

Connect your laptop to:

  • 1 x 4K monitor via the DP Port
  • 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)

OR

  • 1 x 5K monitor via the DP & TB3 USB-C port
Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

Connect your Devices

With three USB 3.0 ports, the Thunderbolt 3 docking station gives you plenty of ports for the latest and legacy devices. Connect USB devices like flash drives using the two Type-A ports. Keep your mobile device charged with the dock’s Fast-Charge and sync port. Connect a USB-C device with the USB-C port (5Gbps - data only).

Plenty of Charging Power

The Thunderbolt 3 docking station features a 170W power adapter supporting Power Delivery to power and charge (up to 85W) your laptop, while powering all your devices connected to the dock. This eliminates the need to use two separate power adapters for your laptop and dock.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility The TB3DK2DPPD, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer’s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.

Specifications

Connector
2 - Connector Type(s) Thunderbolt™ 3 USB-C (24-pin) (40Gbps)
1 - Connector Type(s) DisplayPort (20 pin)
USB Type-C (24 pin) USB 3.0 (5Gbps)
USB 3.0 A (Fast-Charge, 9 pin)
USB Type-A (9 pin) USB 3.0 (5 Gbps)
2 - Connector Type(s) 3.5 mm Mini-Jack (3 Position)
1 - Connector Type(s) RJ-45
Environmental
Operating Temperature 5°C to 40°C (41°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5~95% RH (Non-condensing)
Hardware
4K Support Yes
Fast-Charge Port(s) Yes
Displays Supported 2
Bus Type Thunderbolt 3
Industry Standards Thunderbolt 3
USB Battery Charging Specification Rev. 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Chipset ID Intel - Alpine Ridge DSL6540
Fresco - FL1100EX
Texas Instruments - PCM2912A
Intel - WGI210AT
Texas Instruments - TPS65983
Packaging Information
Shipping (Package) Weight 3.3 lb [1.5 kg]
Package Length 9.8 in [24.8 cm]
Package Width 5.8 in [14.8 cm]
Package Height 3.5 in [88.0 mm]
Performance
Maximum Data Transfer Rate 40 Gbps (Thunderbolt 3)
10 Gbps (USB 3.1 Gen 2)
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions Single display - DisplayPort - 4096 x 2160p / 3840 x 2160p
Single Display - Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p
Dual displays - DisplayPort 4096 x 2160p / 3840 x 2160p and Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p
Type and Rate Thunderbolt 3 - 40 Gbit/s
UASP Support Yes
Compatible Networks 10/100/1000 Mbps
Auto MDIX Yes
Full Duplex Support Yes
Physical Characteristics
Color Gray and Black
Material Aluminum and Plastic
Cable Length 20.5 in [52 cm]
Product Length 8.7 in [22.0 cm]
Product Width 3.1 in [80.0 mm]
Product Height 1.1 in [27.0 mm]
Weight of Product 15.9 oz [450.0 g]
Power
Power Source AC Adapter Included
Power Delivery 85W
Input Voltage 100 - 240 AC
Input Current 2.5 A
Output Voltage 20V DC
Output Current 8.5 A
Plug Type CP (OD:7.4/ID:5.1/CPD:0.6)
Power Consumption (In Watts) 170

In The Box

  • StarTech Dual 4K Monitor Thunderbolt 3 Dock with 3 USB 3.0 Ports

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: StarTech Dual 4K Monitor Thunderbolt 3 Dock with 3 USB 3.0 Ports
  • Manufacturer: Startech
  • Model: TB3DK2DPPD
  • SKU: TB3DK2DPPD
  • RM Product #: 84527
