StarTech Multiport Adapter USB C HDMI SD UHS-II

Product #84522 | SKU DKT3CHSD4GPD | Startech
Contact us for an ETA what does this mean?
Our Price $119
Contact us for an ETA what does this mean?
This product can't be purchased at this time, please contact us for more information.
- +

Email me when stock arrives


Features

  • Connect a 4K Ultra HD monitor
  • Fast SD card access
  • The ports you need most

Related Products


Description

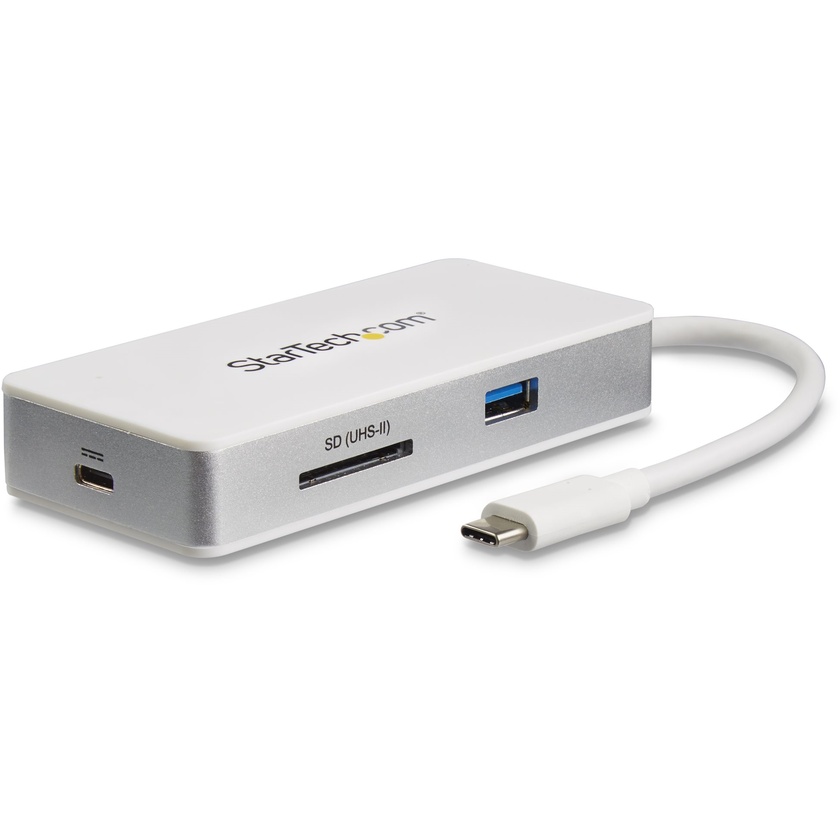

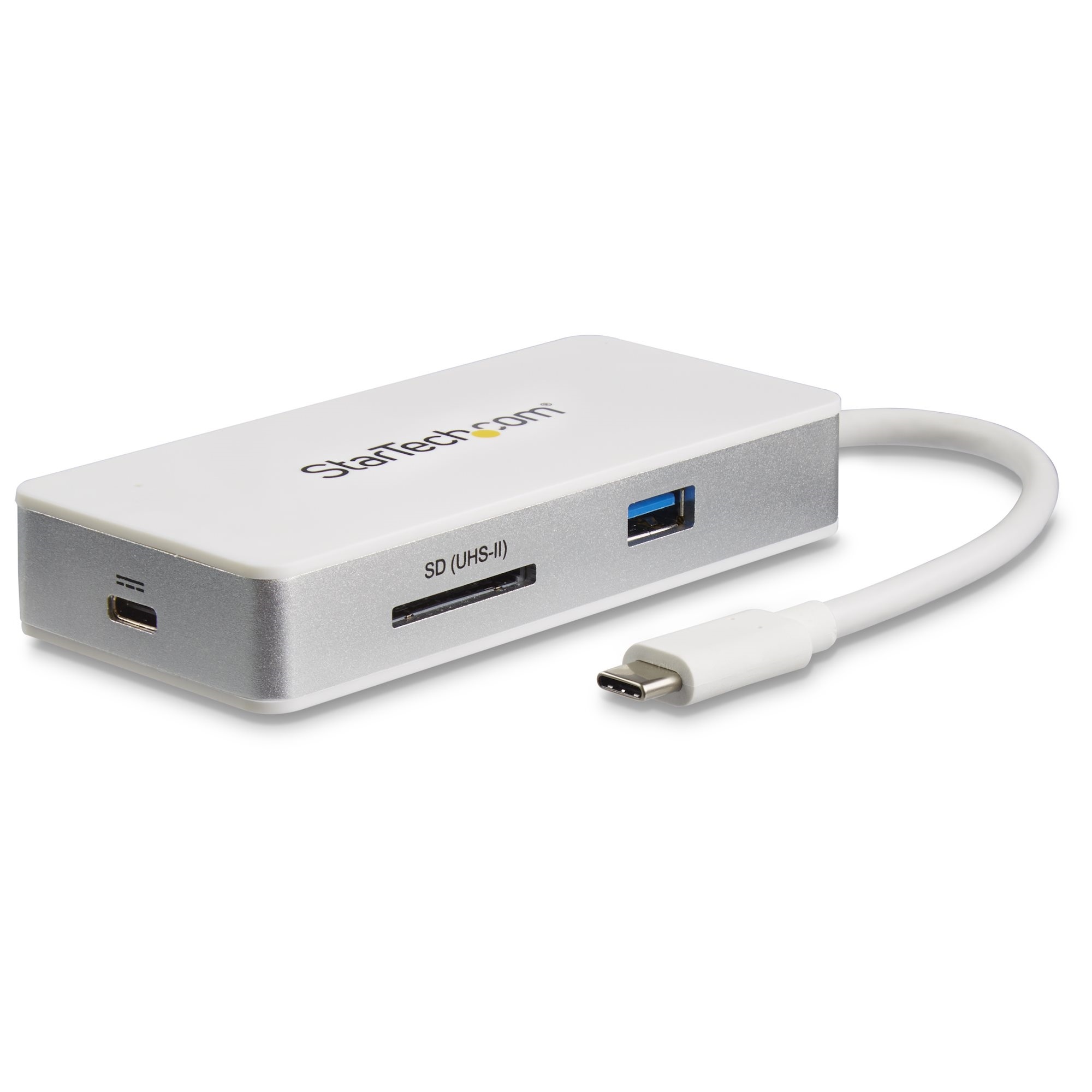

Compatible with Mac and Windows, this universal StarTech Multiport Adapter USB C HDMI SD UHS-II lets you turn your laptop into a powerful workstation, anywhere you go. The USB-C adapter provides a 4K Ultra HD HDMI® video output, an ultra high-speed SD™ 4.0 card reader (with UHS-II support), a USB 3.0 Type-A port and one Gigabit Ethernet port, through your laptop’s USB-C port.

The adapter provides up to 100W charging power with USB Power Delivery 2.0, so you can power the adapter and your laptop at the same time using a USB Type-C™ power adapter.

Key Features:

Connect a 4K Ultra HD monitor

The USB-C multiport adapter offers a 4K Ultra HD HDMI port (with audio), so you can easily connect a high-resolution monitor (4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz).

Fast SD card access

The USB-C multiport adapter features a memory card slot, providing fast read and write access for SD and microSD™ (with adapter) memory cards through USB 3.0. The card reader offers SD 4.0 and UHS-II support, allowing high-speed file transfers at up to 312MB/s. It’s ideal for transferring photos or videos from your SD cards to your USB-C enabled laptop or tablet.

The ports you need most

The Gigabit Ethernet port on the multiport adapter ensures reliable wired network access. Plus, an additional USB 3.0 port (USB Type-A) lets you connect a peripheral device like your mouse or flash drive.

Specifications

Connector
1 - Connector Type(s) USB Type-C (24 pin) USB 3.0 (5Gbps)
HDMI (19 pin)
RJ-45
USB Type-A (9 pin) USB 3.0 (5 Gbps)
SD / MMC Slot
USB-C (24 pin) USB Power Delivery only
Environmental
Operating Temperature 5⁰C to 35⁰C (41°F to 95°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Humidity 20~80% RH
Hardware
4K Support Yes
Fast-Charge Port(s) No
Displays Supported 1
Bus Type USB-C
Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Chipset ID VIA/VLI - VL813
VIA/VLI - VL101
PS176 (HDMI 2.0)
RTS5329
RTL8153
Packaging Information
Shipping (Package) Weight 5.4 oz [153.0 g]
Package Length 6.7 in [17.0 cm]
Package Width 4.6 in [11.6 cm]
Package Height 1.0 in [25.0 mm]
Performance
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes
Memory Media Type SD/MMC (Secure Digital/Multimedia Card)
Compatible Networks 10/100/1000 Mbps
Auto MDIX Yes
Memory Media Type SDHC (Secure Digital High Capacity)
Full Duplex Support Yes
Memory Media Type SDXC (Secure Digital eXtended Capacity)
microSD (Micro Secure Digital) (adapter required)
microSDHC (Micro Secure Digital High Capacity) (adapter required)
microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
General Specifications Supports SD 4.0 and UHS-II (Ultra High Speed) for high speed file transfers, with bus speed up to 312MB/s
Physical Characteristics
Color Silver & White
Material Aluminum and Plastic
Cable Length 5.9 in [15 cm]
Product Length 4.3 in [11.0 cm]
Product Width 2.0 in [50.0 mm]
Product Height 0.7 in [18.0 mm]
Weight of Product 3.2 oz [92.0 g]
Power
Power Source USB-Powered
Power Delivery 100W

In The Box

  • StarTech Multiport Adapter USB C HDMI SD UHS-II
