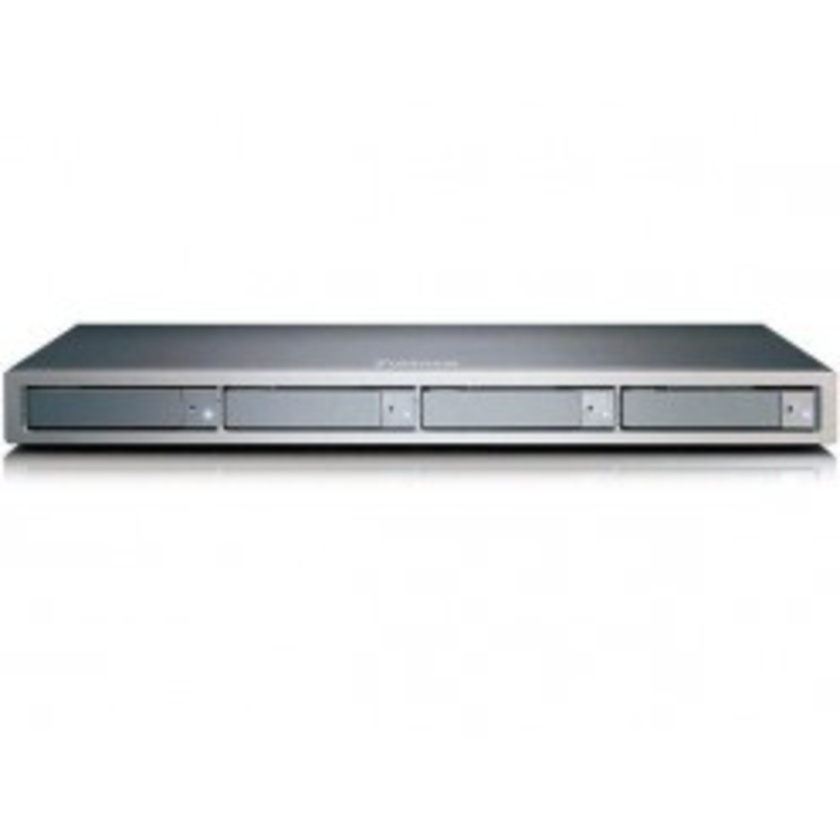

The Stardom DeckRAID 8TB External HDD (SJ20)
RAID Hard Drive With SJ20 (FireWire 800/400/USB 2.0/RAID 5)
Plat-form designed DECKRAID DR4 fits right under your Apple Cinema Display (up to 30”), as well as any professional grade display monitor up to 30 kgs. in weight for you to work comfortably by providing a greater spacious working environment. It’s the perfect ensemble.
Features:
- Quad interface e-SATA / FireWire 800 / FireWire 400 / USB 2.0
- Oxford 936QS * RAID 5 * controller inside
- USB mass-storage compliant
- Hassle free drive installation and removal
- Alarm buzzer when fan or power supply is defective
- 4cm Ball Bearing quite Fan x 3
Specifications:
Certifications: CE, FCC
Case Material: Aluminum front panel Industry design anti oxidation SECC slim case for save your desk space
Host Interface / Ports:
- 1x e-SATA port (7pin)
- 2x FireWire 800 ports (9pin)
- 1x FireWire 400 port (6pin)
- 1x USB 2.0 High Speed port, (USB B type 4pin)
Compatible Drive:
- 3.5" SATA-II 3.0Gb/s hard drive (backward compatible 1.5Gb/s)
- Supports large volumes in excess of 2TB
Data Transfer:
- e-SATA up to 3.0Gbps (300MB/s
- FireWire 800 (1394b) up to 800Mbps (100MB/s)
- FireWire 400 (1394a) up to 400Mbps (50MB/s)
- USB 2.0 up to 480Mbps, (60MB/s) backward compatible USB 1.1
System Environment:
- Operating Temperature: 5°C ~ 40°C
- Operating Humidity: 20%RH ~ 80%RH
- Storage Temperature: -20°C ~ 70°C
- Storage Humidity: 10%RH ~ 90%RH
Power Supply:
- 100-240V 120W External Power adaptor (CB, cUL, UL, TUV, CE)
- Input: AC 100-240V, 50-60Hz
- Output: DC +12V/10A
Size: 471mm x 245mm x 45mm
Gross weight: 5.8 kg
System Requirements:
(PC):
e-SATA: Windows XP/Vista
FireWire 800 (1394b): Windows XP/Vista
FireWire 400 (1394a): Windows XP/Vista
USB 2.0: Windows XP/Vista
(Mac):
e-SATA: Mac OS 10.4 or higher
FireWire 800 (1394b): Mac OS 10.2 or higher
FireWire 400 (1394a): Mac OS 10.2 or higher
USB 2.0: Mac OS 10.2 or later
What's Included:
Stardom DeckRAID 8TB HDD (with SJ20)
(With removable drive tray enclosed)
USB 2.0 cable (A type to B type)
e-SATA cable (7pin to 7pin)
FireWire 800 cable (9pin to 9pin)
FireWire 400 cable (6pin to 6pin)
External Power Adapter
Power cord
Manual
2 year warranty
Other Models Available:
Stardom DeckRAID Enclosure (DR4-WBS2-4SX8)
Stardom DeckRAID 2TB (DR4-WBS2-4SX8-2000)
Stardom DeckRAID 4TB (DR4-WBS2-4SX8-4000)
Stardom DeckRAID 6TB (DR4-WBS2-4SX8-6000)
Note: Computer pictured is not included
