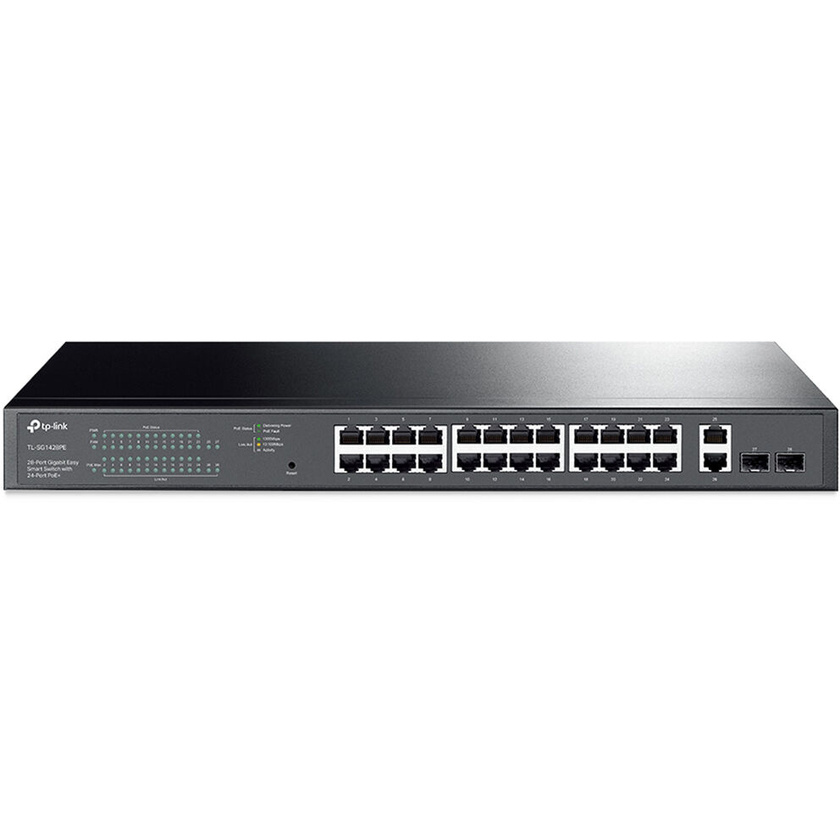

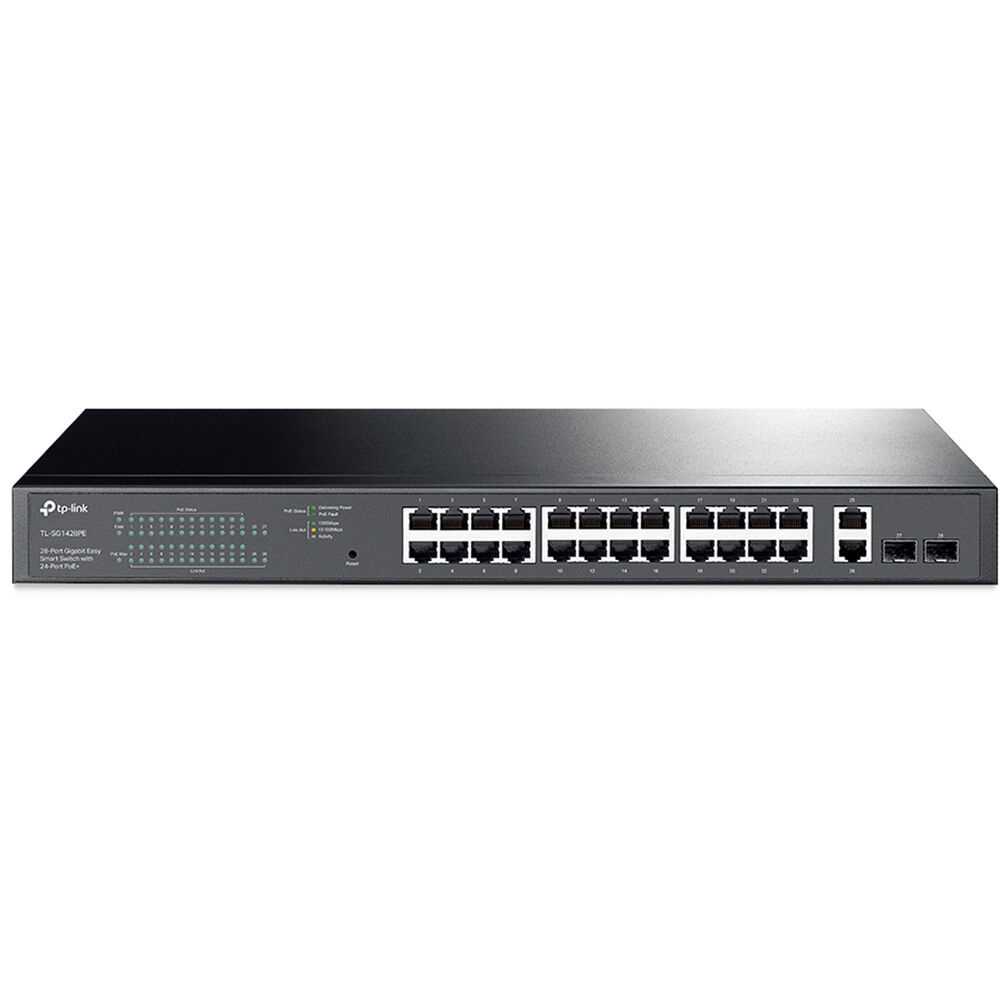

TP-Link JetStream TL-SG1428PE 26-Port Gigabit PoE+ Compliant Managed Network Switch with SFP

Product #107355 | SKU TL-SG1428PE | TP-Link
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $469
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $14 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 5 working days
Click & Collect

Features

  • 26 x Gigabit Ethernet Ports
  • 24 x PoE+ Compliant Ports
  • 2 x Gigabit SFP Ports
  • 56 Gb/s Switching Capacity
  • 41.7 Mb/s Forwarding Rate
  • 250W Budget

Description

The TP-Link JetStream TL-SG1428PE 26-Port Gigabit PoE+ Compliant Managed Network Switch with SFP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Specifications

Interfaces
Inputs/Outputs 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit SFP (Uplink)
Protocols
Layer Services Supported Layer 2 Support
Supported Protocols Auto-MDIX/MDI
IGMP Snooping
Link Aggregation
Port Mirroring
Transmission Method Store-and-Forward
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 8K
VLAN Groups 32
VLAN IDs 4000
Security
Security Features Storm Control
Standards
Supported IEEE Standards 802.1p, 802.1q, 802.3, 802.3ab, 802.3af, 802.3u, 802.3x
Performance
Switching Bandwidth 56 Gb/s
Priority Queues 4
Packet Buffer 4.1 Mb
Electrical
Power Draw 304.7 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 250 W
PoE per Port 30 W
Power Supply Type Internal
Environmental
Operating Temperature 32 to 82°F / 0 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 95%
Certifications COE, FCC, RoHS
*as per Manufacturer
General
Cooling System Fan/Passive Combo
Material of Construction Metal
Rack Form Factor 1 RU
Dimensions 17.3 x 8.7 x 1.7" / 440 x 220 x 44 mm

In The Box

  • TP-Link JetStream TL-SG1428PE 26-Port Gigabit PoE+ Compliant Managed Network Switch with SFP
  • Power Cable
  • Rackmount Kit
  • Rubber Feet

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: TP-Link JetStream TL-SG1428PE 26-Port Gigabit PoE+ Compliant Managed Network Switch with SFP
  • Manufacturer: TP-Link
  • Model: TL-SG1428PE
  • SKU: TL-SG1428PE
  • RM Product #: 107355
