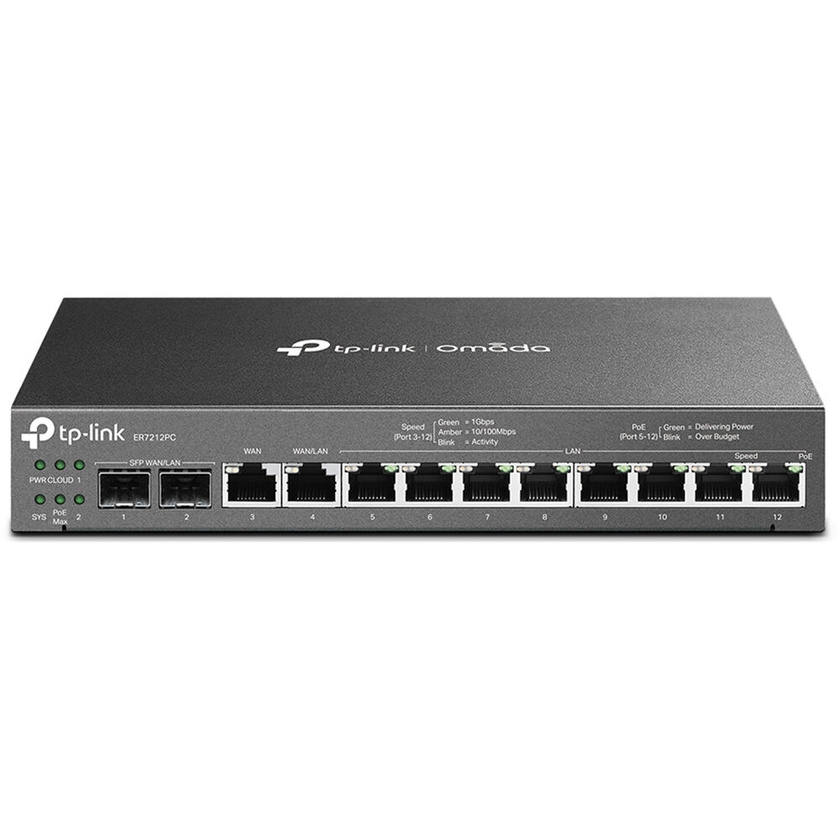

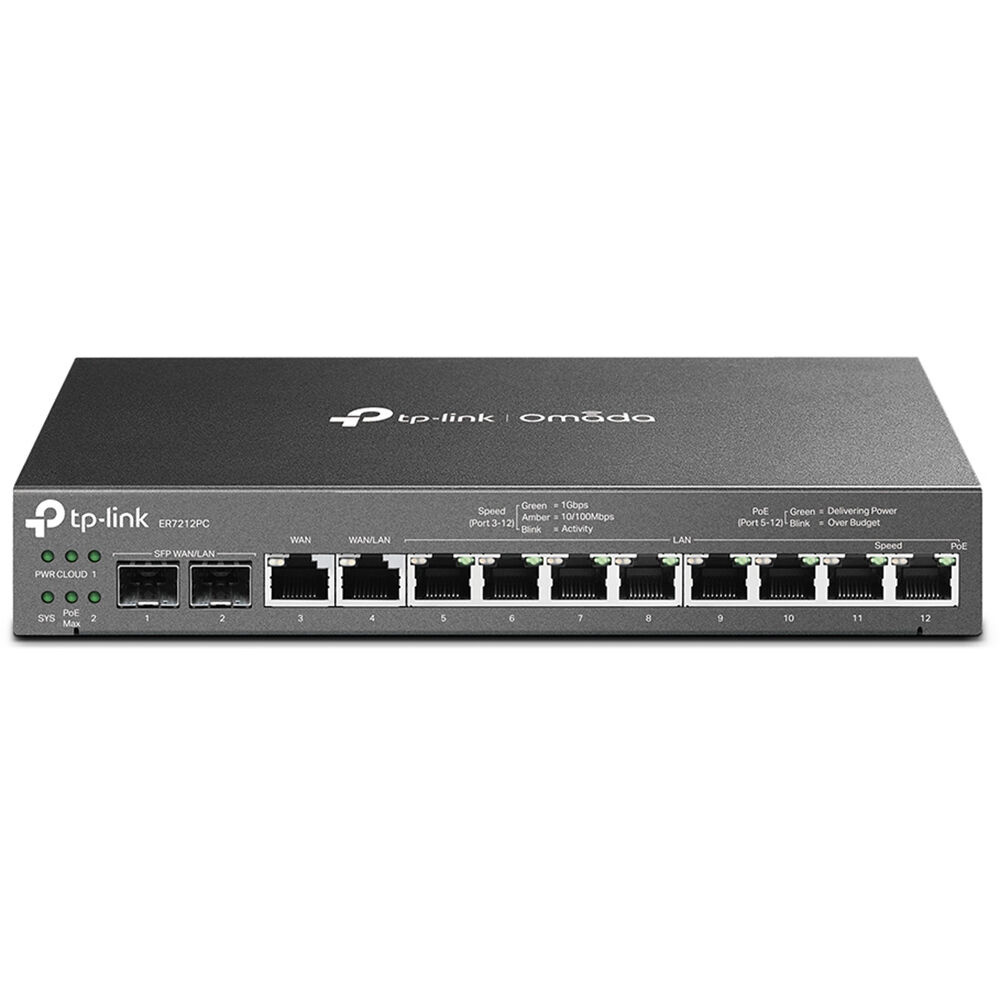

TP-Link Omada ER7212PC 3-in-1 12-Port PoE+ Compliant Gigabit VPN Router

Product #107624 | SKU TL-ER7212PC | TP-Link
Usually ships in 2 - 3 weeks what does this mean?
Our Price $409
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $24 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 8 x Gigabit RJ45 Ethernet PoE+ LAN Ports
  • 1 x Gigabit RJ45 Ethernet WAN/LAN Port
  • 1 x Gigabit RJ45 Ethernet WAN Port
  • 2 x Gigabit SFP WAN Slots
  • Integrated Omada SDN Controller
  • Secure VPN Features

Description

The TP-Link Omada ER7212PC 3-in-1 12-Port PoE+ Compliant Gigabit VPN Router is a single compact box where users can replace their router, hardware controller, and PoE+ switch setup. There is no need to manually configure various network devices one by one, you can perform unified deployment through ER7212PC. All you need is one device.

Equipped with multiple ports, ER7212PC satisfies various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilisation rate of multi-line broadband.

With built-in centralised management capability, the ER7212PC enables you to manage and update devices in bulk, with no need for individual and complex setups. Additionally, check the Omada app or web browser, ER7212PC allows you to remotely control connected devices, monitor the network, and view the network maintenance in real time.

ER7212PC supports pass-through traffic and multiple VPN protocols, including OpenVPN, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.

Specifications

Wi-Fi None
Inputs/Outputs 2 x 10/100/1000 Mb/s Gigabit SFP (WAN/LAN)
1 x 10/100/1000 Mb/s Gigabit Ethernet RJ45 (WAN)
1 x 10/100/1000 Mb/s Gigabit Ethernet RJ45 (WAN/LAN)
8 x 10/100/1000 Mb/s Gigabit Ethernet RJ45 PoE+
Protocols
Supported Protocols DHCP Server
IGMP Snooping
MAC Filtering
RADIUS
SNMPv1
SNMPv2c
SNMPv3
Queueing None
Security
Security Features DoS Attack Prevention
RADIUS Authentication
Standards
Supported IEEE Standards 802.1q, 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z
Performance
Throughput 942.1 Mb/s NAT
912.8 Mb/s VPN
168.5 Mb/s IPsec VPN
Concurrent Sessions 24,980
Dual WAN Support Load Balancing
Encryption AES-128, AES-192, AES-256
Supported VPN Tunnels 20 IPsec
16 PPTP
16 L2TP
Computer
Flash Memory 4 GB
CPU Dual-Core
Memory 1 GB DDR3
OS Compatibility Windows 98 or Later
macOS
UNIX
Linux
*As of May, 2023: Cheque with manufacturer for the most up-to-date compatibility
Electrical
Power Draw 133.2 W (Max)
DC Input Power 53.5 VDC at 2.43 A
PoE Power Budget 110 W
PoE Port Power at 30 A ()
Power Supply Type External
Environmental
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
General
Certifications COE, FCC, RoHS
*as per Manufacturer
Cooling System Passive
Material of Construction Metal
Indicator Lights Link/Activity/Speed, PoE, Power
Mount Options Wall
Dimensions 8.9 x 5.2 x 1.4" / 226 x 131 x 35 mm

In The Box

  • TP-Link Omada ER7212PC 3-in-1 12-Port PoE+ Compliant Gigabit VPN Router
  • Power Adapter & Cable
