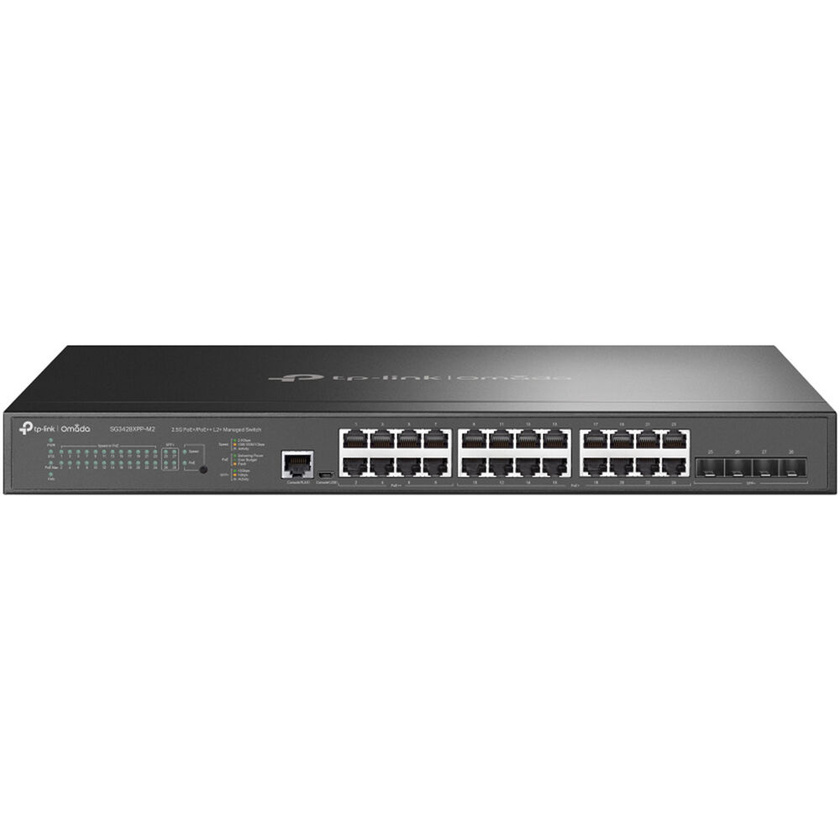

TP-Link Omada SG3428XPP-M2 24-Port 2.5G PoE++ Compliant Managed Network Switch

Product #112444 | SKU TL-SG3428XPP-M2 | TP-Link
Usually ships in 2 - 3 weeks what does this mean?
Our Price $1,589
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $19 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 8 x 2.5G Ethernet PoE++ Ports (60W)
  • 16 x 2.5G Ethernet PoE+ Ports (30W)
  • 4 x 10G SFP+ Ports
  • 200 Gb/s Switching Capacity
  • 148.8 Mpps Forwarding Rate
  • 500W Power Budget

Description

Expand the capacity of your office or business network using the TP-Link Omada SG3428XPP-M2 24-Port 2.5G PoE++ Compliant Managed Network Switch. This managed switch offers 18 Gigabit Ethernet ports, with 16 ports providing up to 30W PoE+ to power devices like IP security cameras, access points, and VoIP phones, thanks to its 500W budget. To ensure priority devices remain powered and to prevent power overload, lower priority ports are automatically turned off by the switch's power management system.

Additionally, the switch has two RJ45 / SFP combo ports for high-speed uplinks. It boasts a 36 Gb/s switching capacity and a 26.78 Mpps forwarding rate, ensuring quick and efficient data transfers. Network administrators can utilize QoS tools to prioritize and optimize traffic, while the web-based utility allows for traffic monitoring and other services. While the TL-SG1218MPE includes a rack mounting kit, it can also be placed on a desktop.

Specifications

Key Specs
Inputs/Outputs 8x RJ45 2.5 GbE PoE++ (Type 3)
16x RJ45 2.5 GbE PoE+
4x SFP+ 10 GbE
1x RJ45
1x Micro-USB
PoE Power Budget 500 W
Interfaces
Inputs/Outputs 8x RJ45 2.5 GbE PoE++ (Type 3)
16x RJ45 2.5 GbE PoE+
4x SFP+ 10 GbE
1x RJ45
1x Micro-USB
Protocols
Layer Services Supported Layer 2
Supported Protocols Auto-MDIX/MDI
IGMP Snooping
IPv4
IPv6
Link Aggregation
Queueing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 32K
Security
Security Features DHCP Snooping
DoS Attack Prevention
Access Control List 512
Static Routes 48
SNMP Support 1, 2c, 3
Standards
Supported IEEE Standards 802.1ab, 802.1p, 802.1q, 802.3af (PoE 15.4 W), 802.3ah, 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3x
Performance
Forwarding Rate 148.8 Mpps
Switching Bandwidth 200 Gb/s
Priority Queues 8
Packet Buffer 16 Mb
Computer
Flash Memory No
OS Compatibility Windows 98 or Later
macOS
UNIX
Linux
Electrical
Power Draw 629.1 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 500 W
PoE per Port 30 to 60 W
Power Supply Type Internal
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 95%
General
Certifications COE, FCC, RoHS
Cooling System Fan
Rack Form Factor 1 RU
Dimensions 17.3 x 13 x 1.7" / 440 x 330 x 44 mm

In The Box

  • TP-Link Omada SG3428XPP-M2 24-Port 2.5G PoE++ Compliant Managed Network Switch
  • Power Cable
  • Rackmount Kit
  • Rubber Feet
