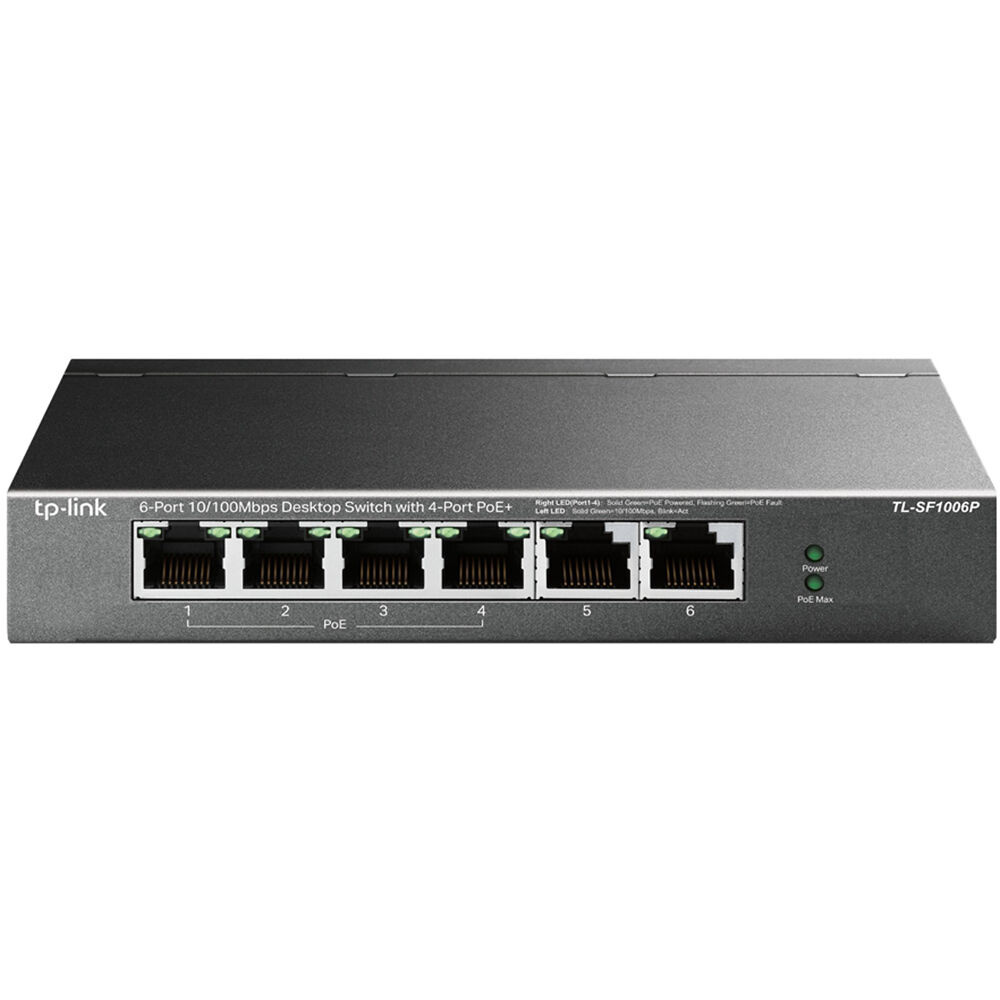

TP-Link TL-SF1006P 6-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch

Product #107382 | SKU TL-SF1006P | TP-Link
Usually ships in 2 - 3 weeks what does this mean?
Our Price $84.95
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 6 x 10/100 Mb/s Ports
  • 2 x PoE+ Compliant Ports
  • 1.2 Gb/s Switching Capacity
  • 89.28 Mpps Forwarding Rate
  • Desktop Design
  • 67W Power Budget

Description

Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

The interior components of TP-Link TL-SF1006P 6-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.

Specifications

Interfaces
Inputs/Outputs 4 x 10/100 Mb/s Ethernet (RJ45) PoE+
2 x 10/100 Mb/s Ethernet (RJ45)
Protocols
Supported Protocols Auto-MDIX/MDI
Transmission Method Store-and-Forward
Jumbo Frames Support 2000 Bytes
MAC Address Table Size 2K
Standards
Supported IEEE Standards 802.3af, 802.3at, 802.3x
Performance
Forwarding Rate 89.28 Mpps
Switching Bandwidth 1.2 Gb/s
Electrical
Power Draw 74.00 W (Max)
PoE Power Budget 67 W
PoE per Port 30 W
Power Supply Type External
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
General
Cooling System Passive
Material of Construction Metal
Indicator Lights Link/Activity, PoE, Power
Dimensions 6.2 x 4 x 1" / 158 x 101 x 25 mm

In The Box

  • TP-Link TL-SF1006P 6-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch
  • Power Adapter
