The TP-Link TL-SG1005P-PD 5-Port Gigabit PoE+ Compliant Unmanaged Network Switch has a PoE budget output of up to 66 W / 47 W / 21 W / 9 W when powered by the 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively. It can transmit PoE up to a distance of 250 m, making it perfect for deploying surveillance cameras in large areas. This switch automatically reboots dropped or unresponsive PD devices to ensure stable operation of PoE devices. Its durable metal casing and desktop/wall-mounting design make it suitable for different environments. The industry-leading fanless design ensures quiet operation, making it ideal for both homes and businesses. It is a plug and play device, requiring no configuration or installation. Please note that this product only supports PoE power supply and not AC or DC power supply.

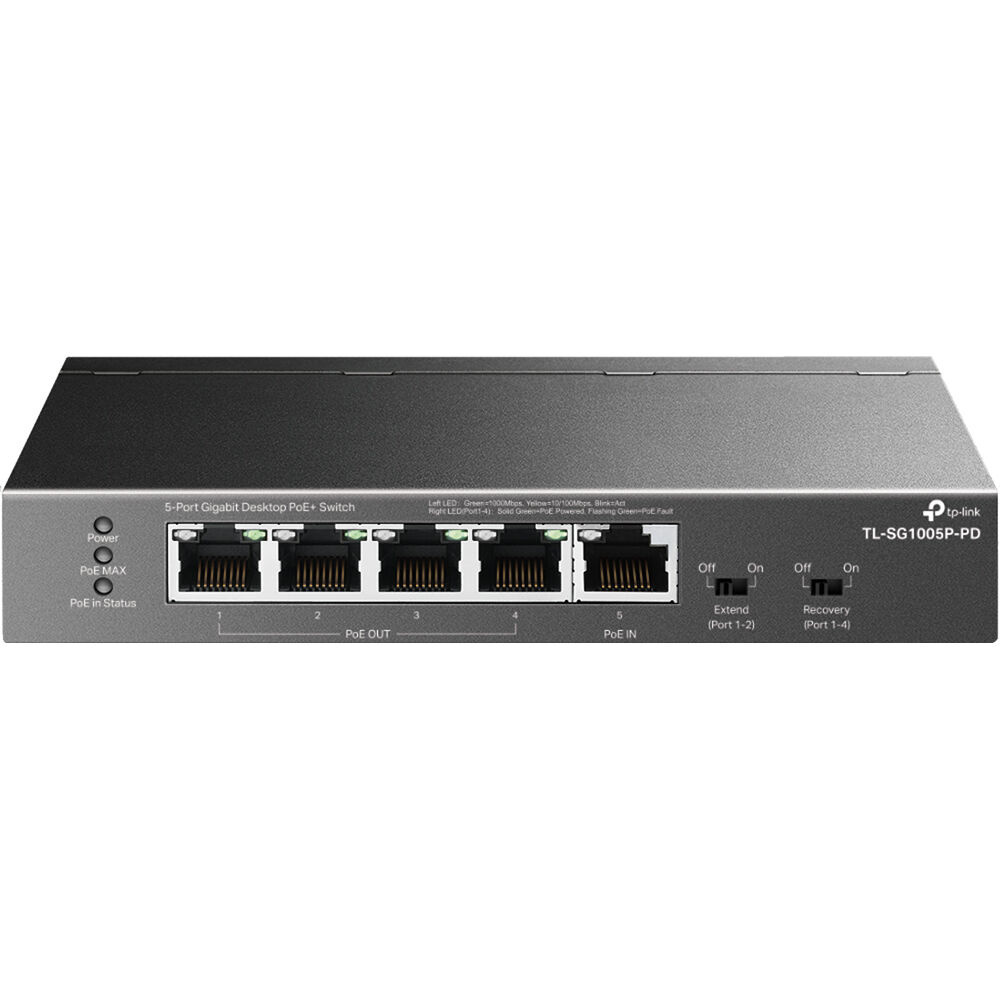

TP-Link TL-SG1005P-PD 5-Port Gigabit PoE+ Compliant Unmanaged Network Switch
In stock
Ships today
Our Price
$75.95
In stock
Ships today
this item may be nonreturnable
Shipping & Availability
Ships today.
Deliver to
Auckland
for $5.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 4 working days
Click & Collect
Features
- 4 x Gigabit Ethernet PoE+ Output Ports
- 1 x Gigabit Ethernet PoE++ Input Port
- 10 Gb/s Switching Capacity
- 7.44 Mpps Forwarding Rate
- Desktop Design
- Up to 66W Power Budgent
Description
Specifications
| Key Specs | |
| Inputs/Outputs | 4 x RJ45 Gigabit Ethernet PoE+ 1 x RJ45 Gigabit Ethernet (WAN) PoE++ (Type 4) |
| PoE Power Budget | 66 W |
| Interfaces | |
| Inputs/Outputs | 4 x RJ45 Gigabit Ethernet PoE+ 1 x RJ45 Gigabit Ethernet (WAN) PoE++ (Type 4) |
| Protocols | |
| Supported Protocols | Auto-MDIX/MDI IGMP Snooping |
| Transmission Method | Store-and-Forward |
| MAC Address Table Size | 2K |
| Standards | |
| Supported IEEE Standards | 802.1p, 802.3ab, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3i, 802.3u, 802.3x |
| Performance | |
| Forwarding Rate | 7.44 Mpps |
| Switching Bandwidth | 10 Gb/s |
| Electrical | |
| Power Draw | 68.59 W (Max) |
| AC Input Power | No |
| PoE Power Budget | 66 W |
| PoE per Port | 90 W |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| General | |
| Certifications | COE, FCC, RoHS |
| Cooling System | Passive |
| Material of Construction | Metal |
| Indicator Lights | Link/Activity/PoE, Power |
| Dimensions | 6.2 x 4 x 1" / 158 x 101 x 25 mm |
In The Box
- TP-Link TL-SG1005P-PD 5-Port Gigabit PoE+ Compliant Unmanaged Network Switch
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: TP-Link TL-SG1005P-PD 5-Port Gigabit PoE+ Compliant Unmanaged Network Switch
- Manufacturer: TP-Link
- Model: TL-SG1005P-PD
- SKU: TL-SG1005P-PD
- RM Product #: 111565
